Robertshaw Part number 5500-135M.

Commercial cooking infinite switch kit

New and improved M-style low profile switch easily replaces obsolete 120 Volt INF black style switches

Rated for 120 Volt Applications

Kit includes: White Dial, Pal Nut, Wires and Instructions.

2-1/8" Break Off HD Stem.

Replacement for numbers: Uni-Line, 23715, 5500-135, 5500-136, 5500-136M, Consolidated Comm. Co, IK-104, Robertshaw, INF-120-1152, INF-120-799, MPA-V114-1-UNM

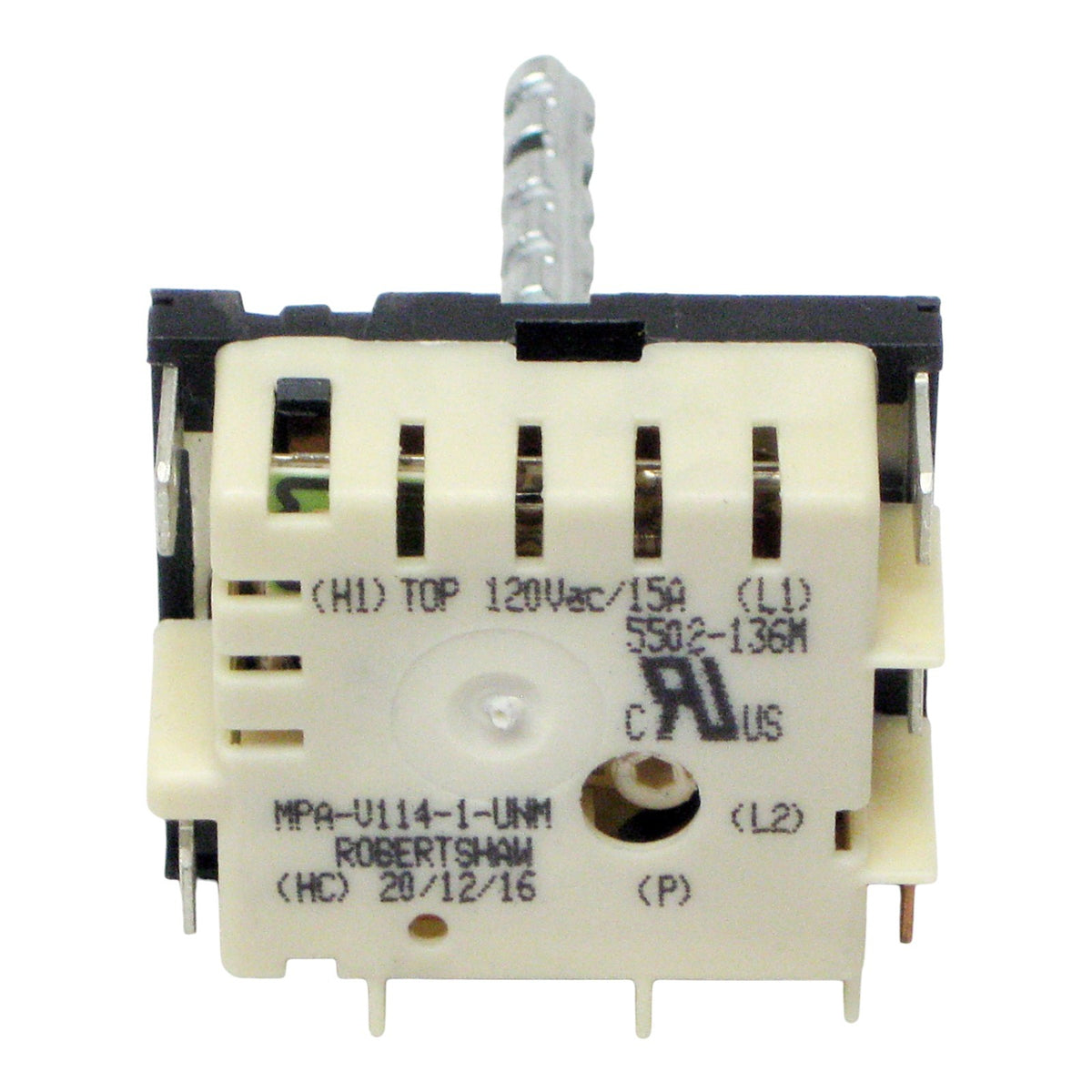

The Robertshaw M series infinite switch is a rotary switch which controls the power dissipated by a heating element. It is used on electric ranges, hot plates, warming drawers and zones, barbecue grills, space heaters, quartz heaters and many applications which call for proportionate control of a resistive load.

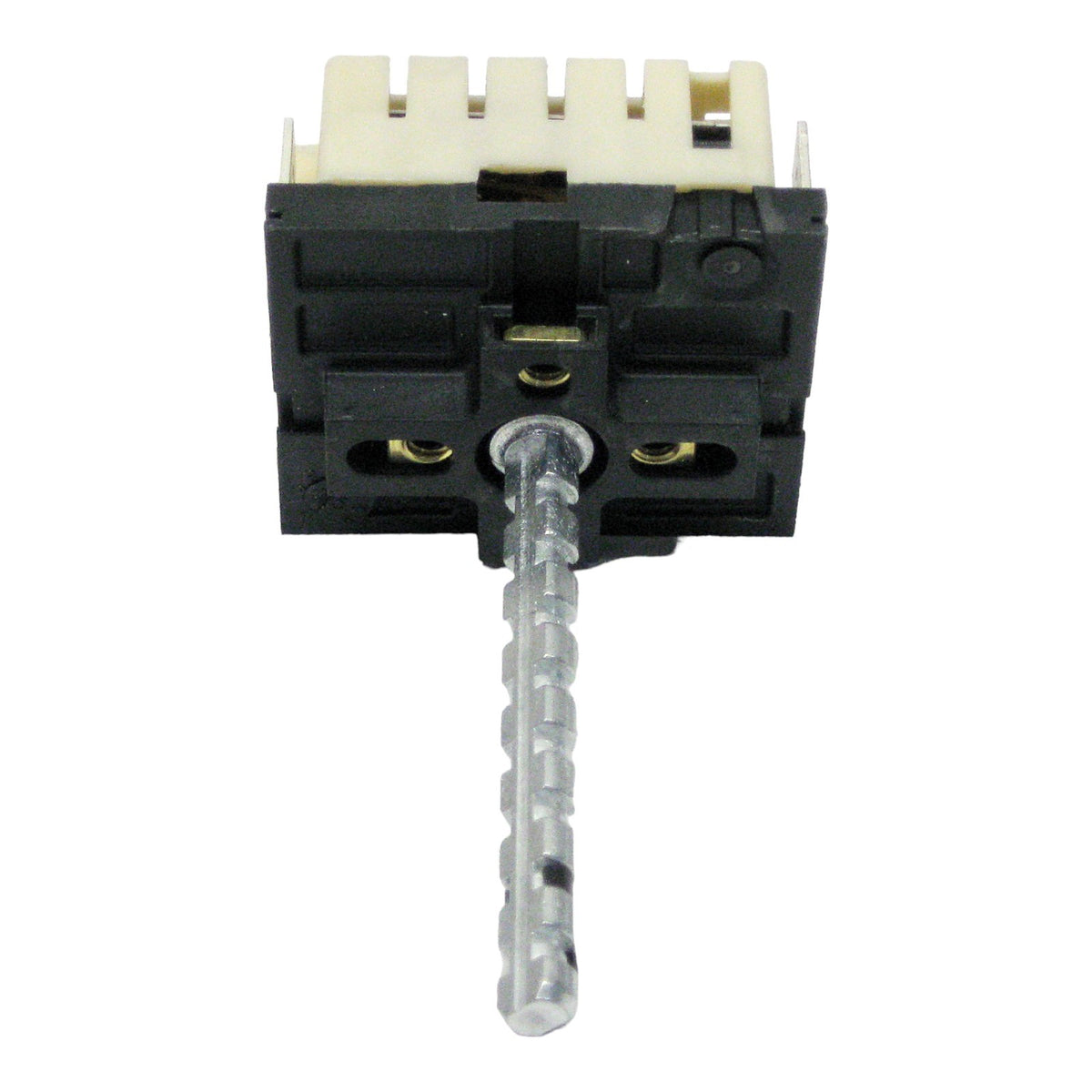

The 5500 Series Commercial Infinite Control kit is the same as the standard infinite kit, except it has a heavy-duty dial shaft. This shaft is grooved at all the standard lengths and may be broken off to the required length.

Specifications:

• Maximum 13 Amps at 125C (257F) or 15 Amps at 100C (210F)
• On time 2% to 9% at low (45 arc)
• Full dial (360) or half dial (180) rotation
• Stem length: 2-3/16"
• Wattage range of 100 Watts to 3600 Watts at 240 VAC
• Voltage ratings of 208-240 Volts
• Screw mount or bushing mount
• Kit Includes:
• Infinite Switch
• Black Dial Knob (OFF-LO-2-6-HI)

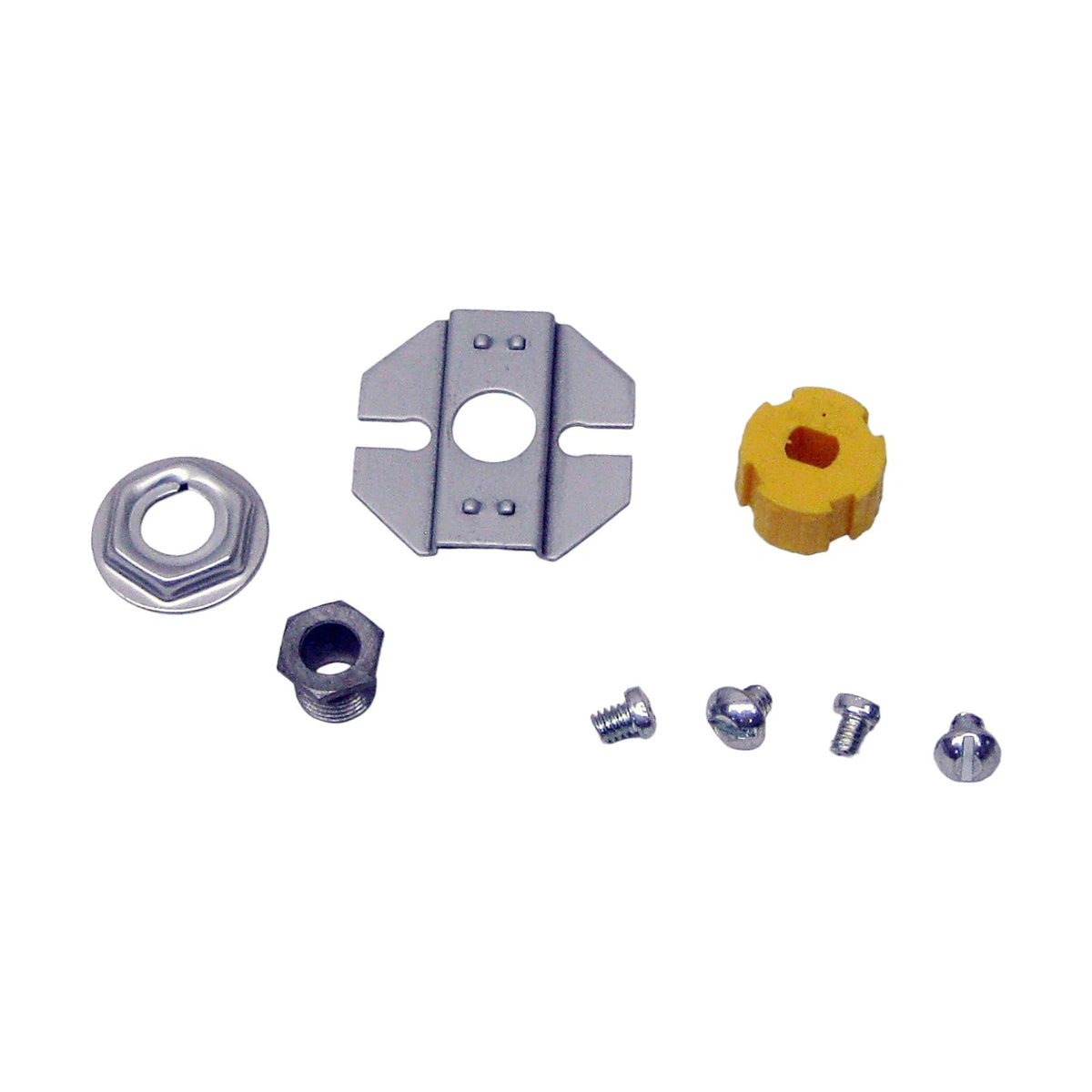

• Mounting adapters (Pal nut, bushing, 4 small screws, bracket)
• Stem adapter
• 2 wires
