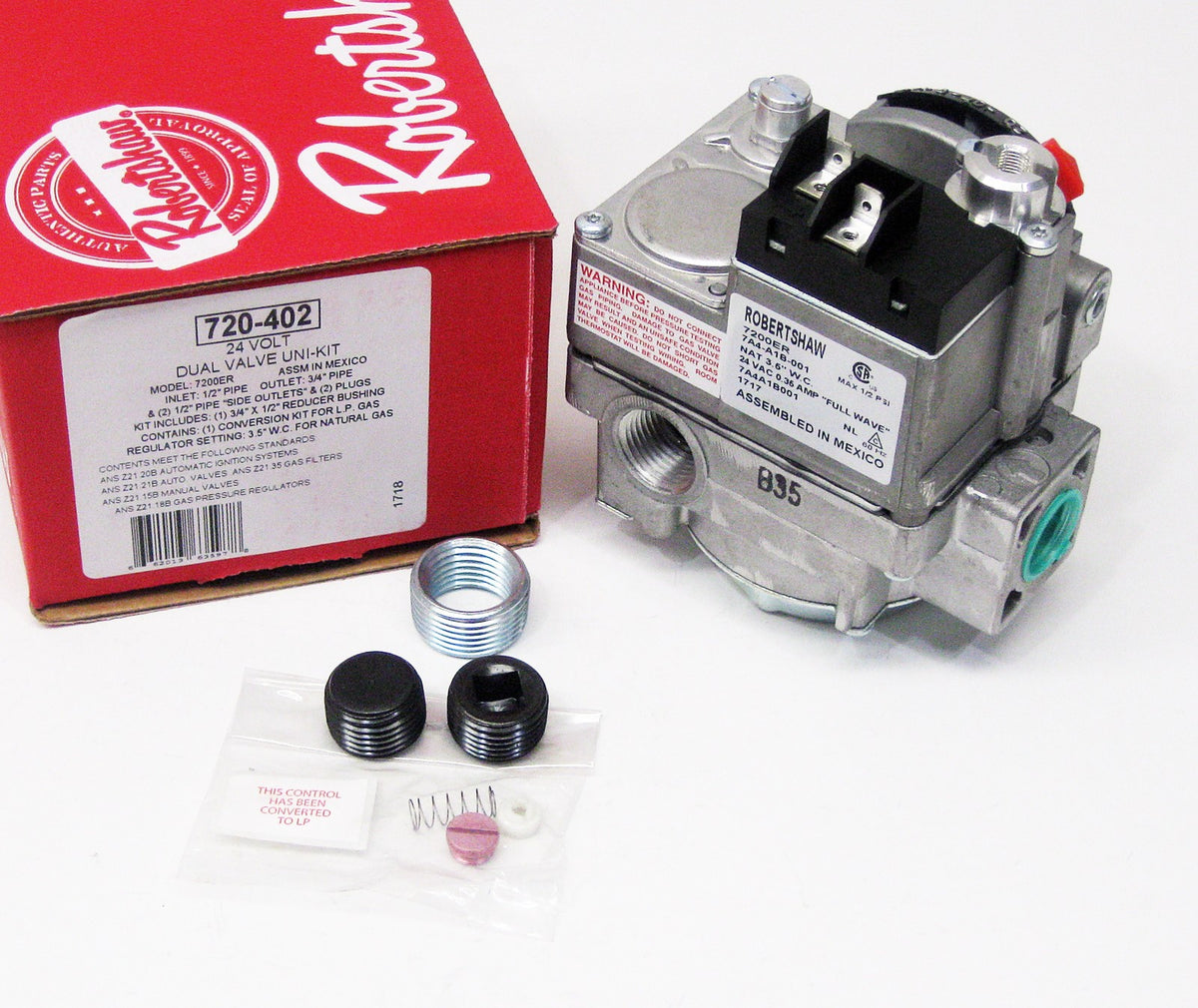

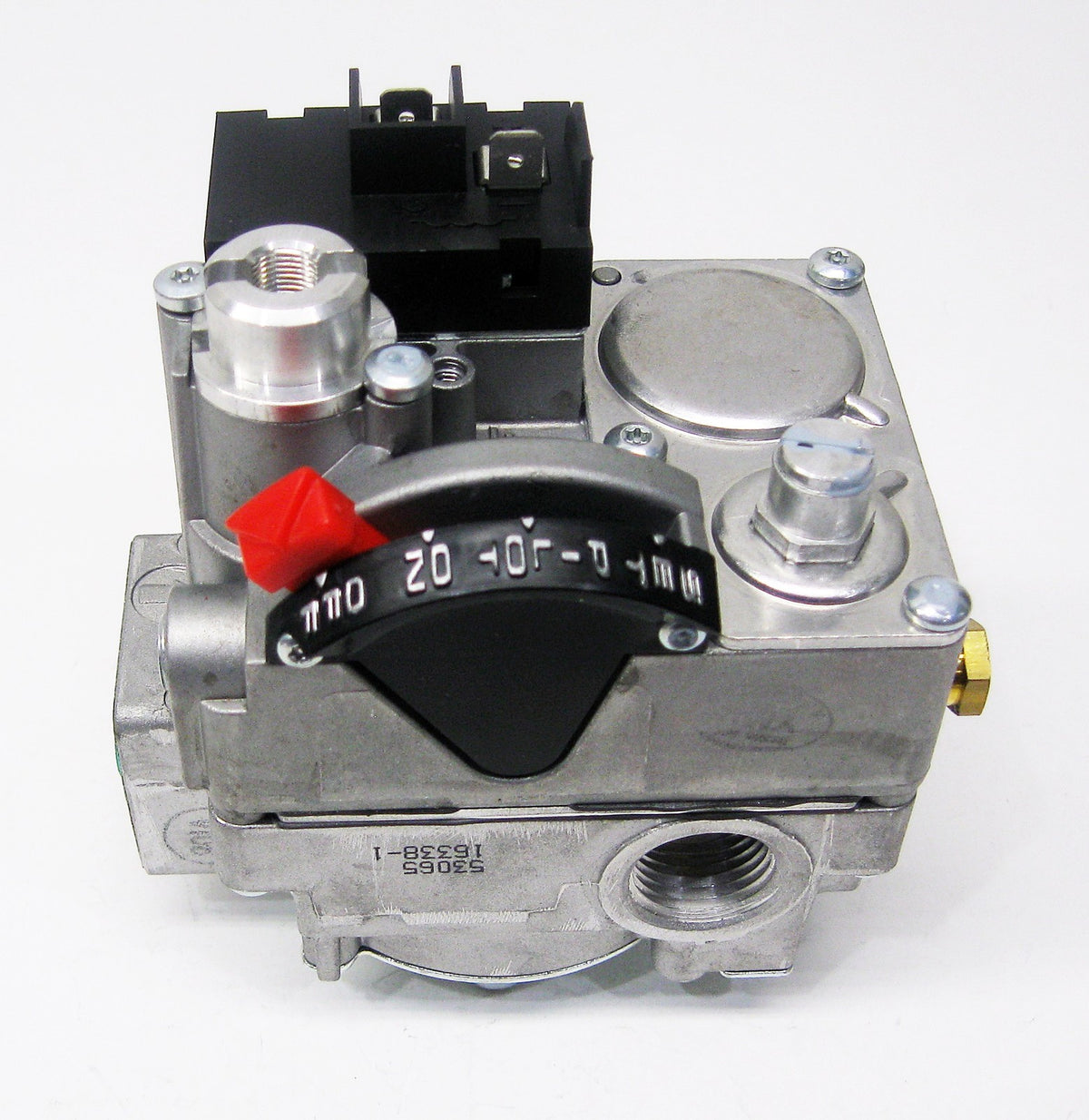

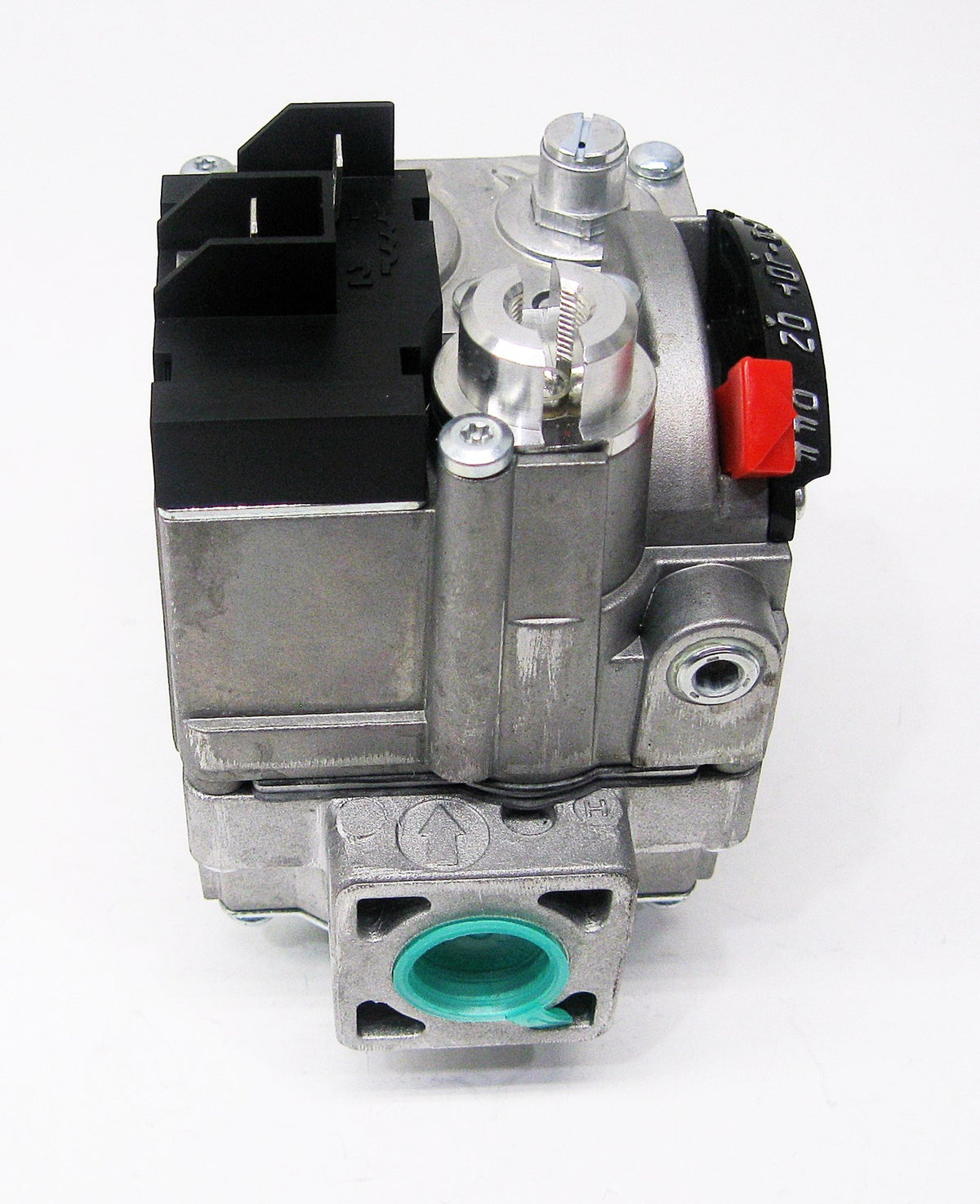

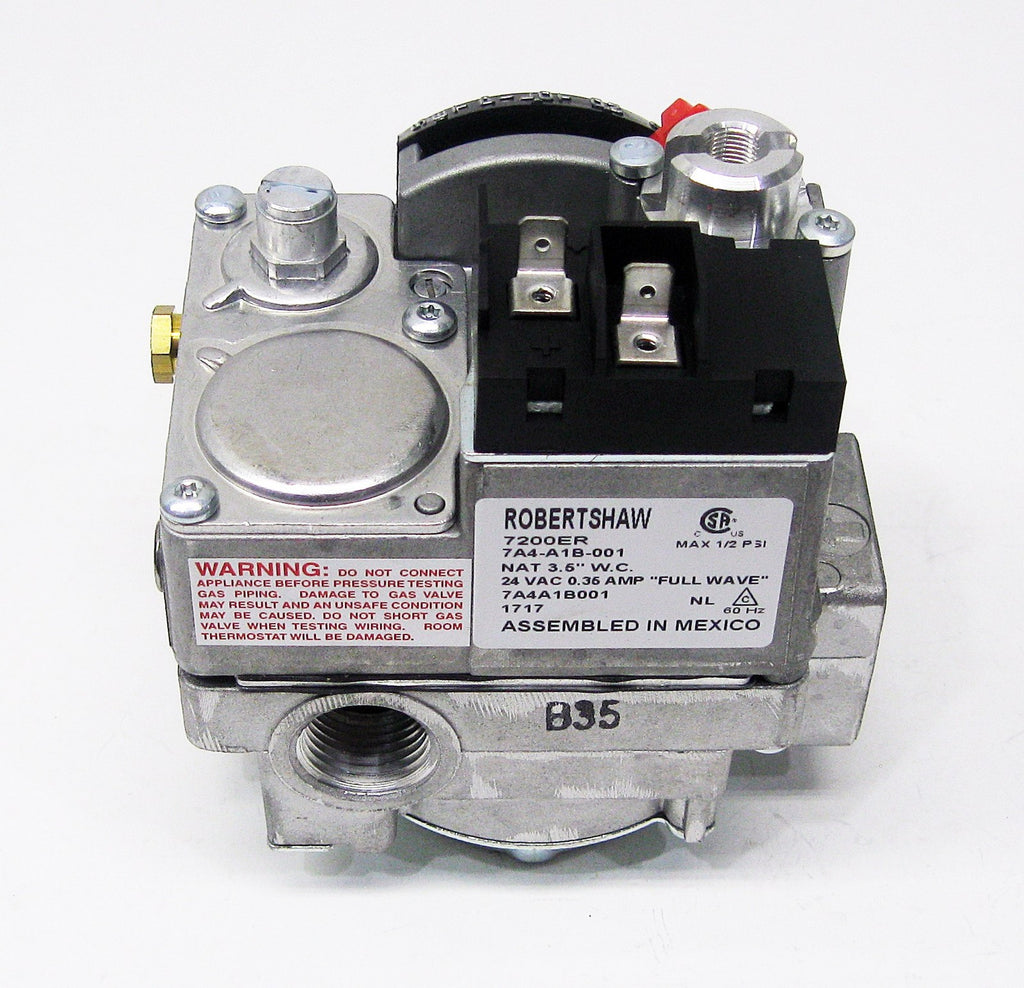

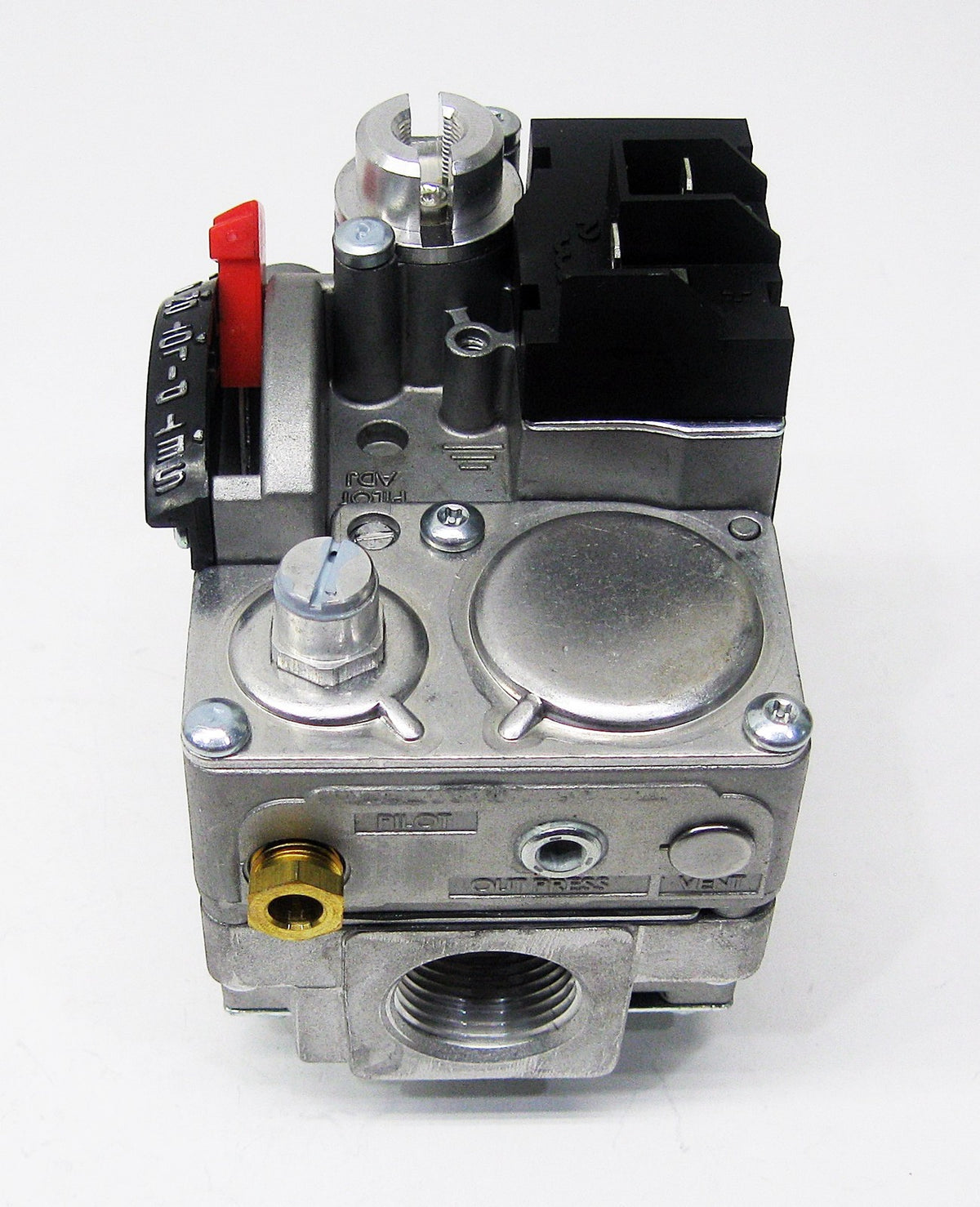

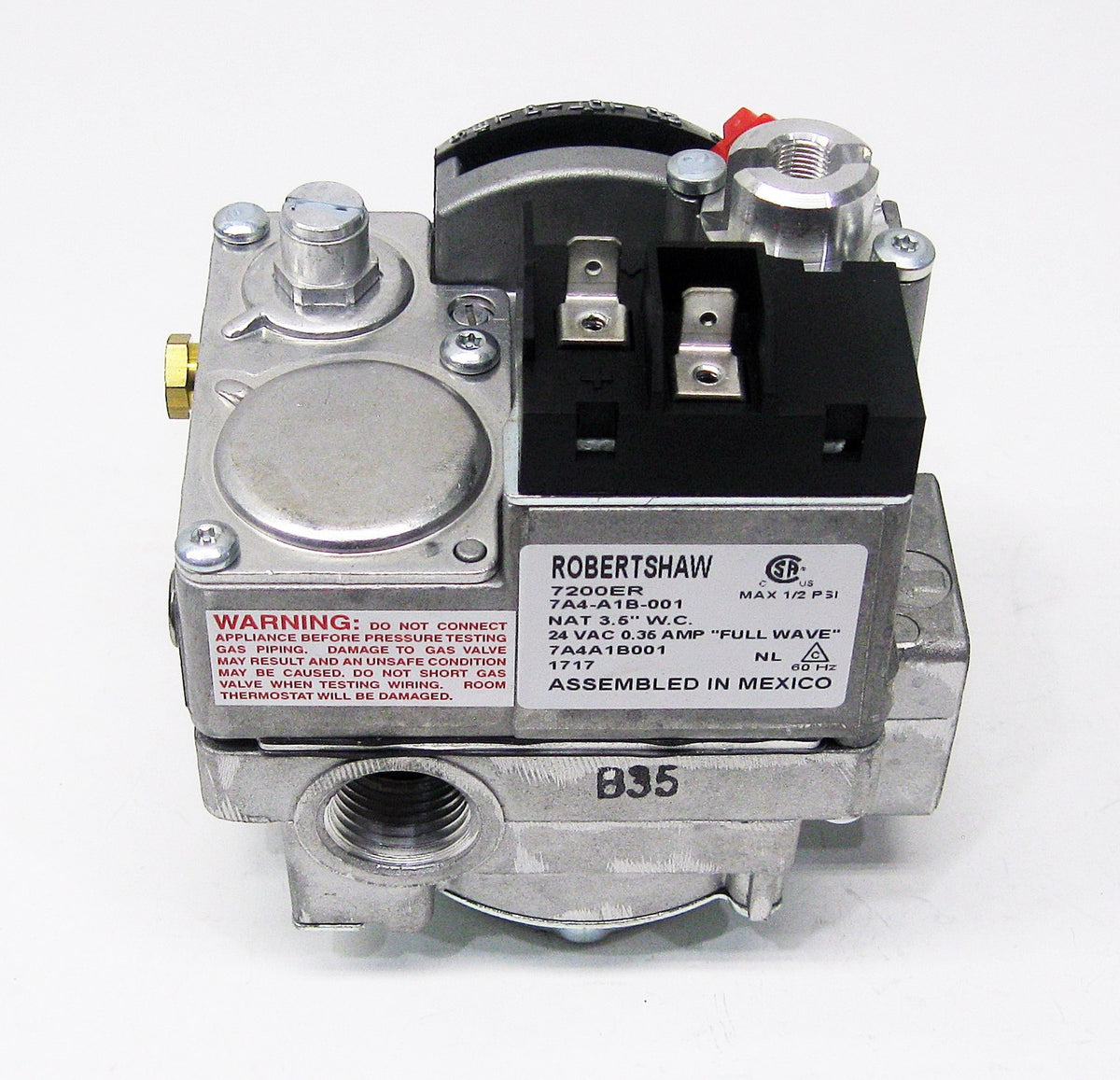

Robershaw 24V Dual Gas Valve part number 720-402.

Specifications:

• Gas Type- Natural Gas, with LP conversion.


• Series Application 24V Dual


• Factory Part Number 7200ER


• Pressure Regulation Uni-Kit Natural Gas


• Capacity 150,000 BTU


• Reducer Bushing (NPT) (1) 3/4" x 1/2"


• Inlet Size 1/2"


• Electrical Rating 24V AC @ 0.5 Amps, 50/60 Hz


• Pilot 1/4" tubing


• Outlet Size 3/4"


• Side Outlets 1/2" FPT with plugs


• Maximum Inlet Pressure 14" WC (1/2 PSI)

Replacement for numbers:

01-1902, 01-1902B, 01-1903, 01-1903D, 01-3590, 01-3590C, Williamson Co, 1000-402, 1000-404, 1000-406, Uni-Line, 103-501-020, 105-501-020, 105-501-037, 107-501-020, 107-501-124, Robertshaw, 10P33,  Panel Bloc Corp, 115-501-036, 115-501-087, 116-501-020, 117-501-036, 1200-402, 1200-404, 120-501-036, 122-501-036, 122-501-087, 13110-154, 13110-155, 13110-183, 13120-215, 13120504010, 13120504020, 13120504-1,  13120504-2, Trane, 133-501-020, 135-501-020, 135-501-071, 135-501-144, 137-501-020, 137-501-041, 137-501-055, 137-501-070, 137-501-071, 137-501-094, 137-501-097, 137-501-127, 138-501-092, 138-501-107, 138-501-139, 138-501-146, 140-501-061, 141-501-020, 141-501-055, 141-501-056, 141-501-073, 141-501-075, 141-501-080, 143-501-048, 143-501-061, 143-501-098, 147-501-020, 147-501-041, 147-501-044, 147-501-055, 147-501-070, 147-501-071, 147-501-080, 147-501-094, 147-501-097, 147-501-127, 147-501-130, 147-501-135, 147-501-136, 147-501-159, 150-01-020, 150-501-055, 150-501-056, 150-501-073, 150-501-075, 1585-700, 1585-705, 1585-725, Singer Company, 159E, 159EH, 159REH, Controls of America, 160-82624, ITT/Reznor, 1810588, Ducane Heating Corp, 183-501-108, 183-501-109, 183-501-532, 183-501-533, 190-501-526, 21-0666, 21-0667, B330095-G1, K47RB02, K47RB03, K47RF08, KX32, KX33, KX36, L37-541, Luxaire Inc, 215-500, 215-501, 215-502, 215-504, Steveco, 2274-B10, 2274-B13, 2274-B14, Johnson Controls, 2274B16, 2274B17, 2274B18, Armstrong, 2274-B6, 403-501-832, 4E400, 2274-B7, 2274-B8, 2506, 2507, 2508, 25081, 2508-1, 925A2, 925A3, 92D2104G13, 92D2204G3, 93D1204G4, 93D1204G5, 96D1004G10, 96K1004G5, White-Rodgers, 25082, 2508-2, 2509, 2511, 2571, 2588, 2630, 2636, 2640, 2702-329, Evcon Air Pro, 2702-329P, 7A0A1R062, 7A0A4C022, York International, 2812866, 2812867, 2812868, Chrysler/Airtemp, 285-12011-108, Borg-Warner (York), 300-501-502, 300-501-504, 300-501-531, 300-501-571, 300-501-578, 300-501-584, 300-501-590, 300-531-524, 300-531-567, 301-501-502, 301-501-508, 301-501-548, 301501590, 301-501-714, 301-501-730, 303081, Lear/Siegler, 303221-001, 303221-002, 303221-003, 303221-P05, 303221-P06, 303221-P07, 304336-004, 304336-005, 304336-006, 304336-P03, 304336-P08, GE, 304-501-517, 304-511-517, 305142-P01, 305142P02, 305142-P04, 305142-P05, 321-001-557, 321-501-524, 321-501-584, 328-22902-102, Essex, 346-501-502, 346-501-557, 355-505-511, 3601-124, 3601-128, 3601-248, 3601-404, 3601-508, 3601-584, 3602, 3602-124, 3602-128, 3602-208, 3602-224, 3602-228, 3602584, 3602-584, 3603, 3603-208, 3603-228, 3604, 3604-118, 3604-228, 3604-404, 3604-408, 3604-428, 3604-484, 3604-518, 3604-528, 3605-925, 3606-128, 3606-188, 3606-228, 3606-486, 3606-488, 3606-528, 3631, 3632, 3633, 3634, 3641-228, 3641-428, 3644-118, 3646-428, 3661-128, 3661-28, 3661-288, 3661-428, 3661-488, 3661-505, 3661-506, 3661-583, 3661-584, 3661-588, 3661-628, 3661-668, 3661-82, 3661-83, 3661-86, 3662-128, 3662-404, 3662-428, 3662-488, 3662-506, 3662-584, 3662-588, 3662-83, 3662-86, 3666-128, 3666-404, 3666-428, 3666-488, 3666-506, 3666-584, 3666-588, 3666-83, 3666-86, 3667318, 3667319, 36C01-505, 36C03-100, 36C03-103, 36C03-133, 36C03-210, 36C03-216, 36C03-219, 36C03-236, 36C03-241, 36C03-243, 36C03-252, 36C03-263, 36C03-267, 36C03-311, 36C03-315, 36C03-316,  and many more. Contact us if you do not see your number
