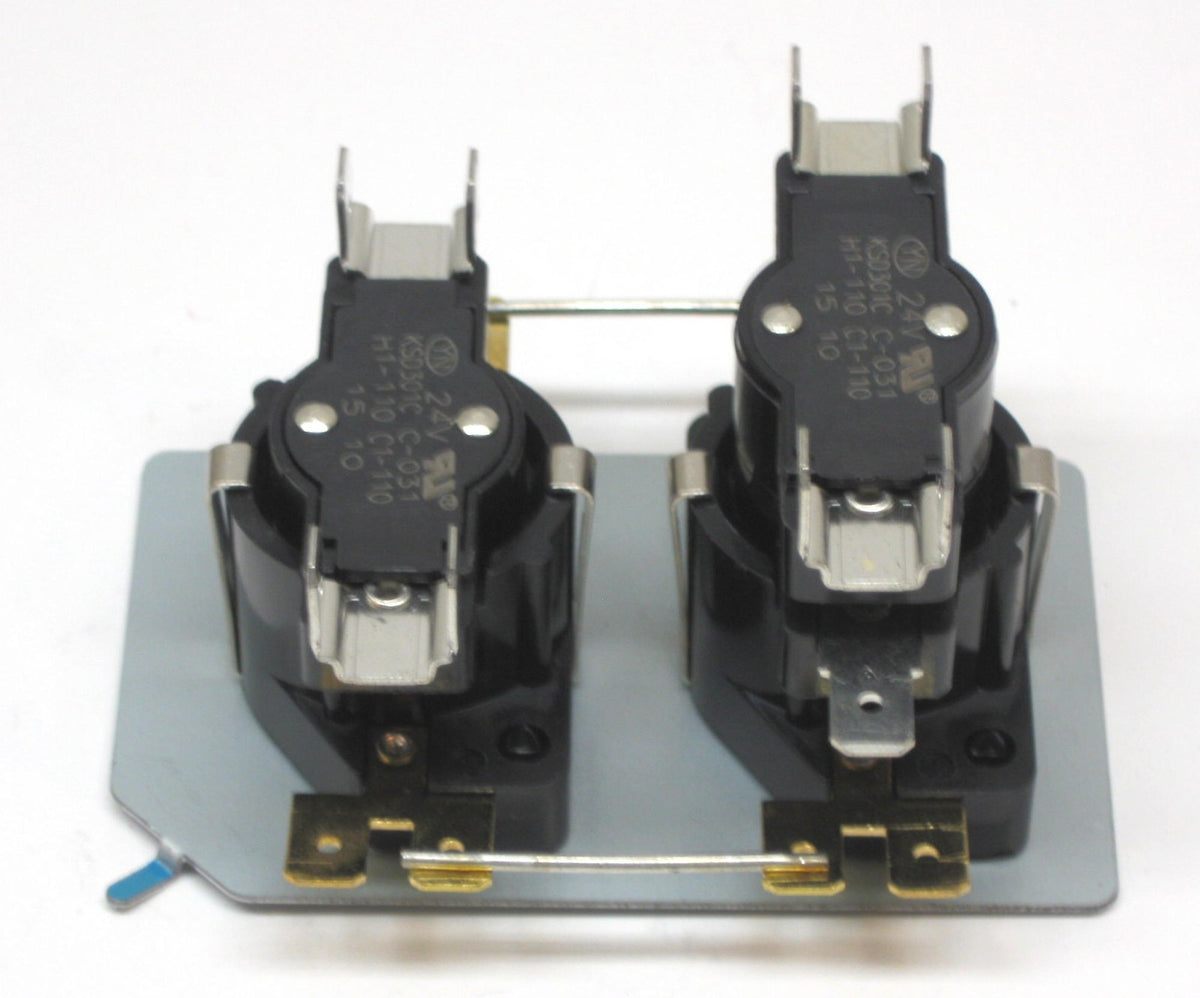

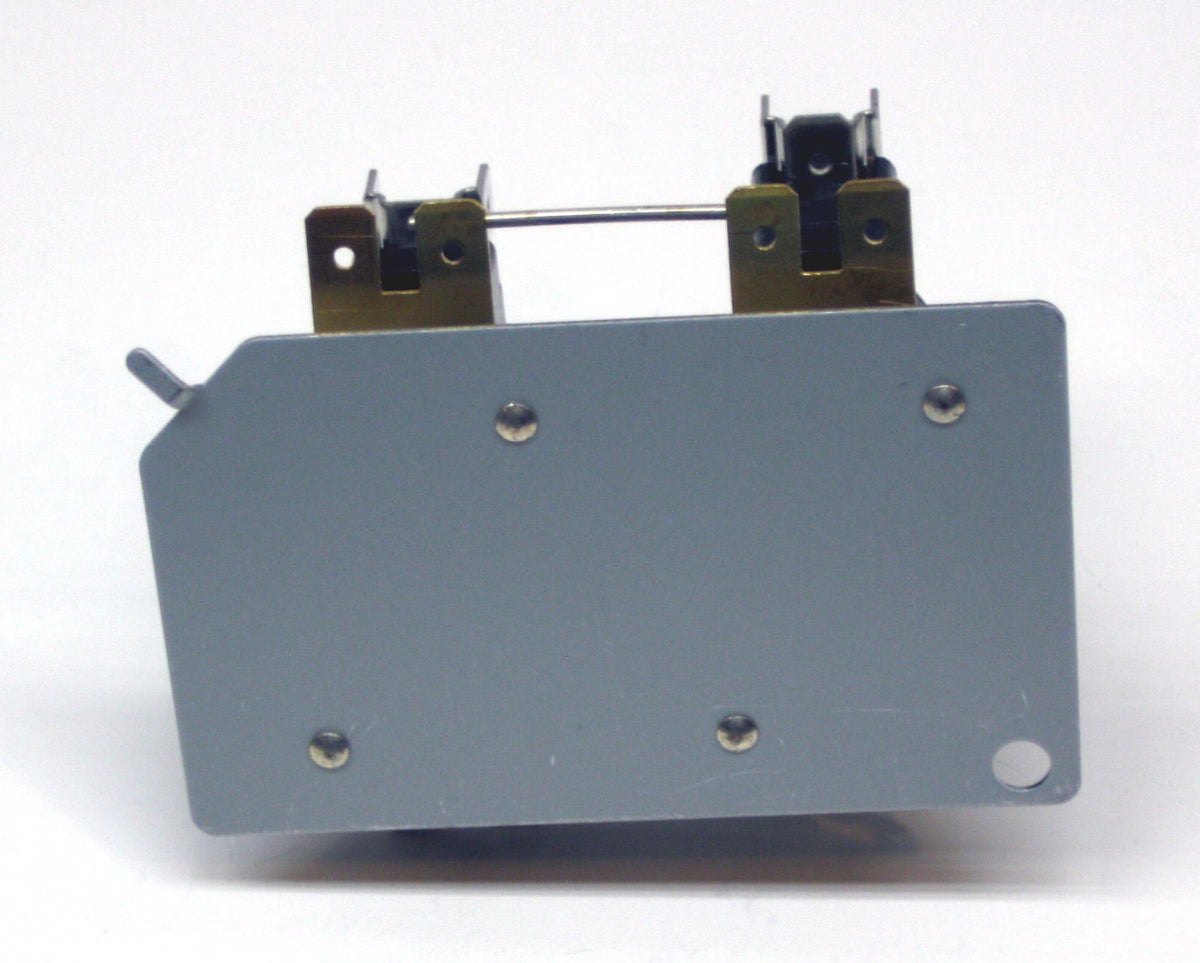

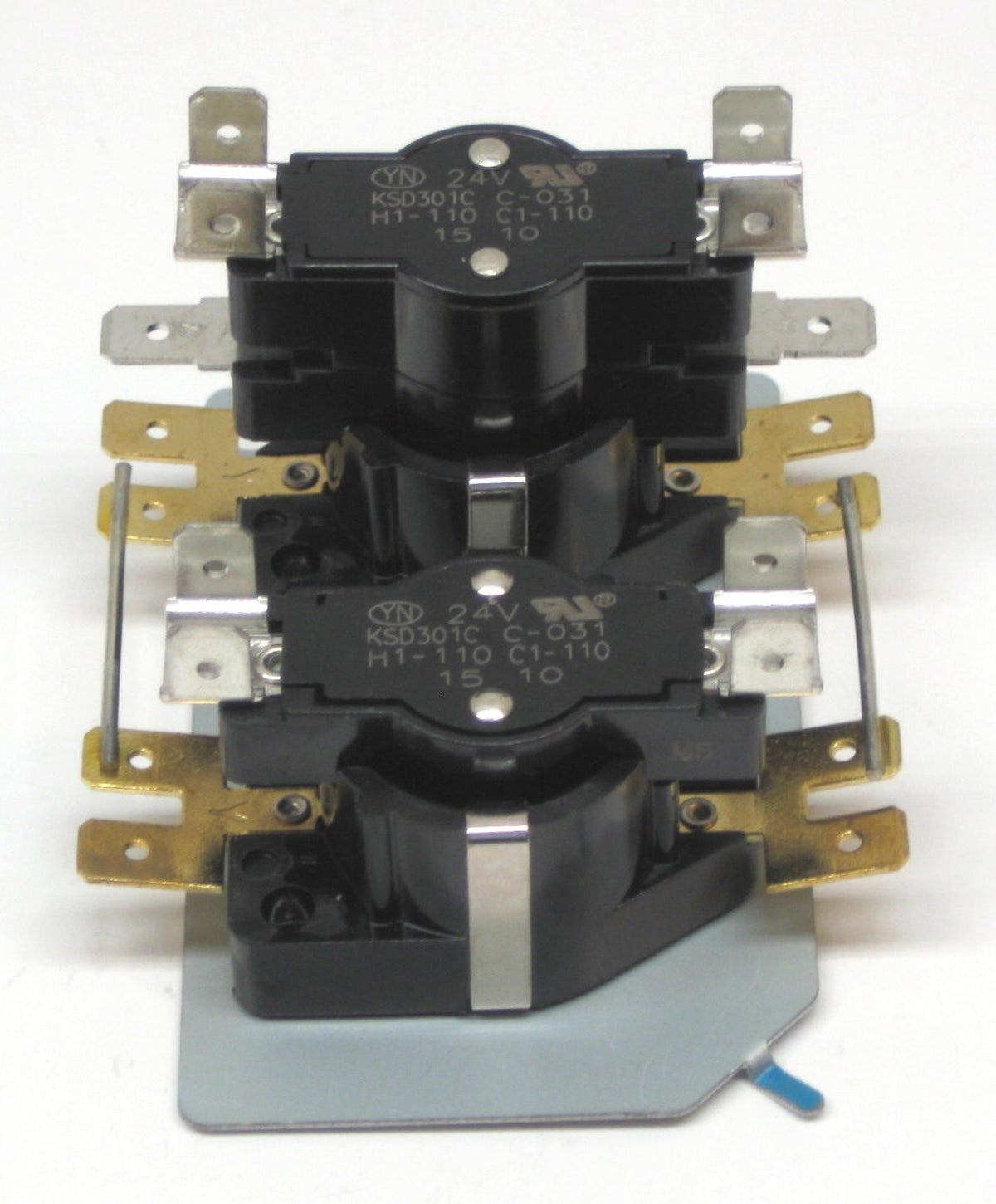

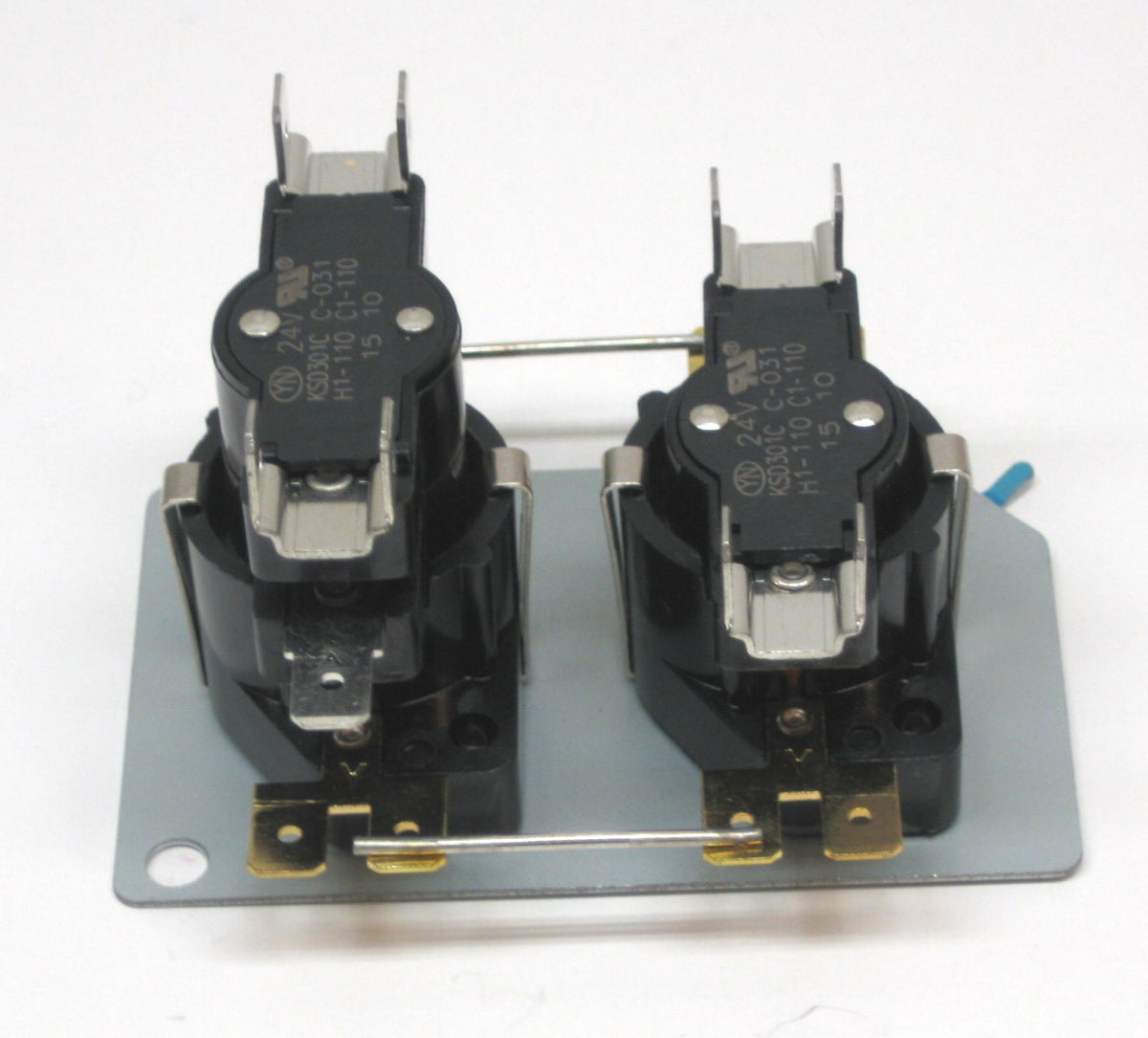

Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 24A34-5 525-37327-000
In demand. 32 people bought this in the last 24 hours.
Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 24A34-5 525-37327-000
people have this in their carts right now.
Description
Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 24A34-5 525-37327-000
Parts Connect Sequencer part number PCQ105.
24 Volts
DPST-SPST
2 Timing / 3 Switch
Off 1-110 Seconds
On 1-110 Seconds
PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions.
Terminal Markings are Equivalent to Competitive Types.
Replacement for Numbers:
Diversitech DGS105, Klixon 51172-32, Mars 33232, 33832, Napco NS105, Supco Q105, White Rodgers 24A34-5, Watsco TDR30, York 525-37327-000.
COMBINED LOAD RATING TABLE
(ALL MODELS)
30A @ 240 VAC TOTAL,
23A Non-Inductive + 7 FLA
/ 42 LRA
Inductive,
ON Time: Elapsed time to make contacts after
heater is energized (min. to max.)
OFF Time: Elapsed time to break contacts after
heater is de-energized (min. to max.)
M1-M2 and M3-M4 are always first switches
to turn ON and last to turn OFF. All other
switches are random ON and random OFF
NOTE
: Underwriters Laboratories requires a
fan interlock circuit to insure the blower
remains operating whenever more than one
sequencer is used.
The fan interlock should
be the M1/ M2
contacts of the second or third sequencer.
All M1/ M2
contacts are wired to the blower
motor so that any sequencer that is energized
will keep the blower ON.
