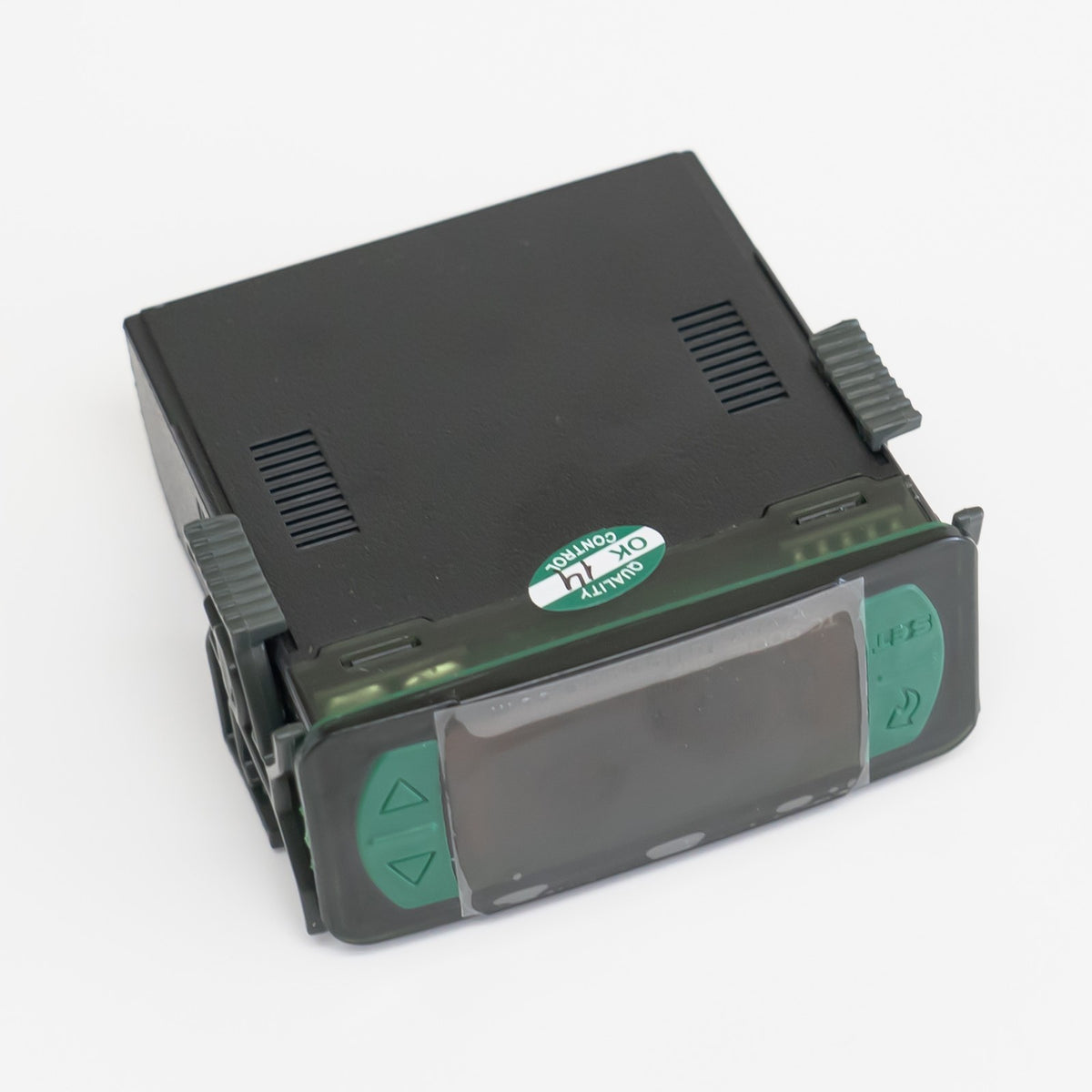

Full Gauge Controls TC-900E-2HP (version 03).

Digital Controller for Freezing Systems with Defrost Scheduling and Internal Datalogger.

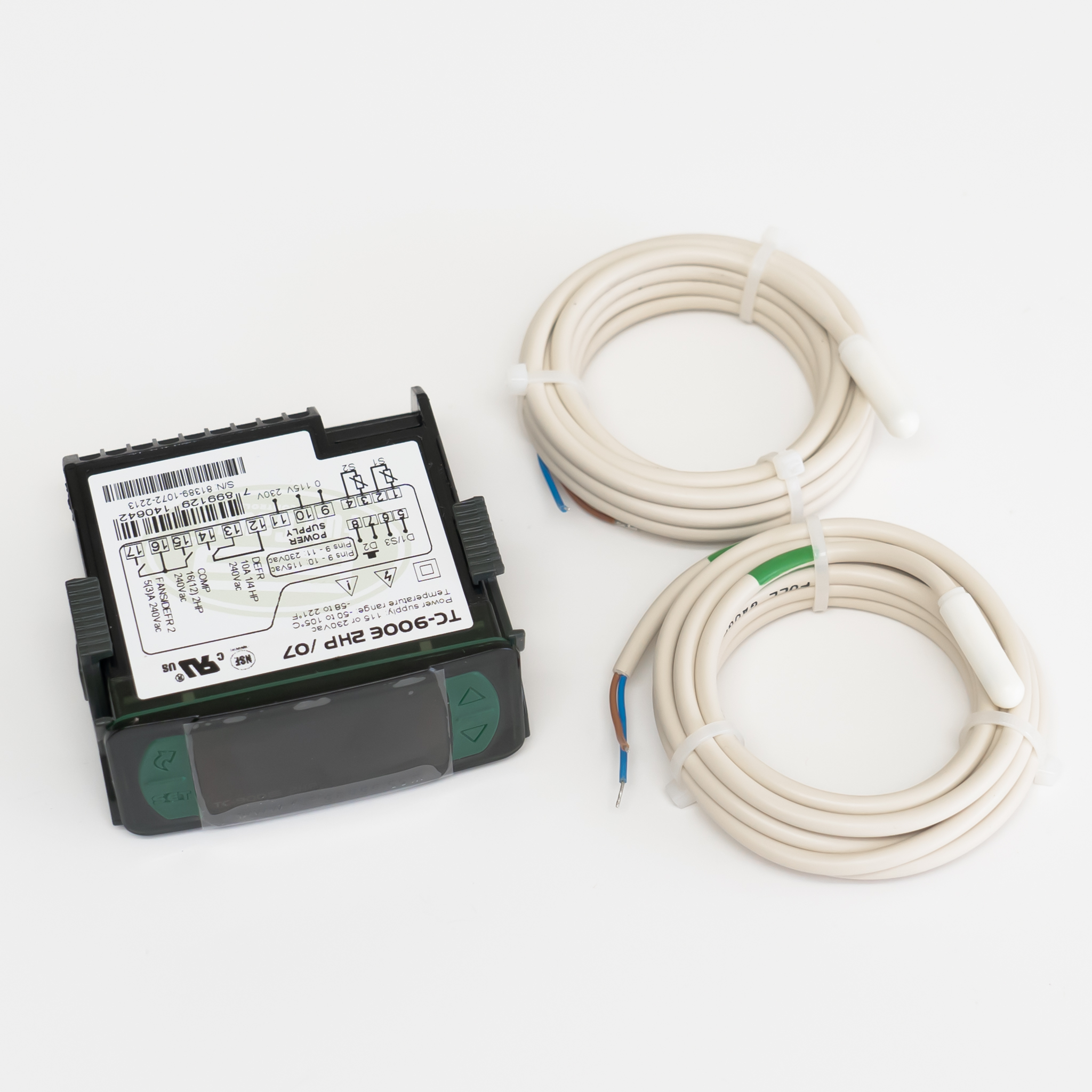

For frozen goods, it automates the defrosting process according to the needs of the facility (intelligent defrosting), providing energy savings. It operates with two sensors, one for room temperature and the other, fastened to the evaporator, that controls defrosting completion and fan restarting. The room temperature control has normal and economy setpoints, in addition to the fast freezing functionality and alarm functions indicating that the door is open. It features up to two digital inputs. One of these inputs may be configured with an additional sensor (not included) to monitor the condenser temperature and disconnect the control outputs in case of an alarm. It also features a digital filter, which is intended to simulate an increase of the mass of the room temperature sensor (S1), thus increasing its response time (thermal inertia), and avoiding unnecessary compressor activations.

Features:

• Contains an hour-meter to count the operating hours of the compressor
• Internal real-time clock enables the creation of a defrost schedule for each day of the week
• Internal auxiliary power supply keeps the clock working without power for at least 72 hours
• Internal memory for storing data (datalogger)
• Sensor activates the economy setpoint according to light intensity
• Serial communication for connection to Sitrad remote management software
• Frontal IP-65 protection, a Flatec key for easy access and a four-digit display

Specifications:

• Power Supply: 115 or 230 Volts AC (50/60Hz)
• Control Temperature: -58 to 221 degrees F (-50 to 105 C)
• Operating Temperature: 32 to 122 degrees F (0 to 50 C)
• Compressor load current: 12(8)A / 240 VAC 1HP
• Defrost load current: 10A / 240 VAC 2400 W
• Fans load current: 5(3)A / 240 VAC
• Max compressor power: 1 hp
• Max device consumption: 1.5 VA
• Operating Humidity: 10 to 85 %RH (without condensation)
• Dimensions: 76 x 34 x 77 mm (WxHxD)
• Suitable Refrigerants: R290 and R600a
• Certifications: CE, UL and NSF
