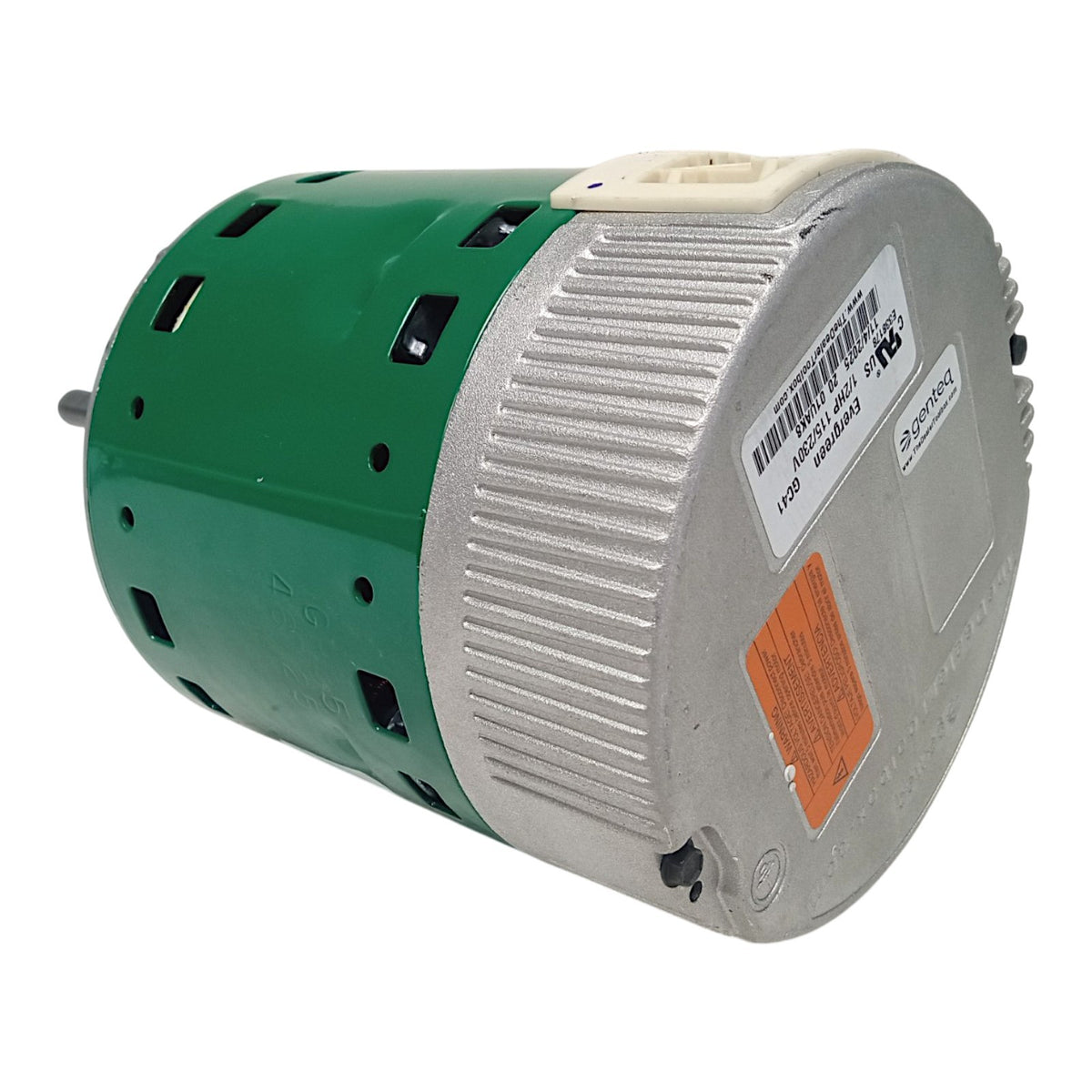

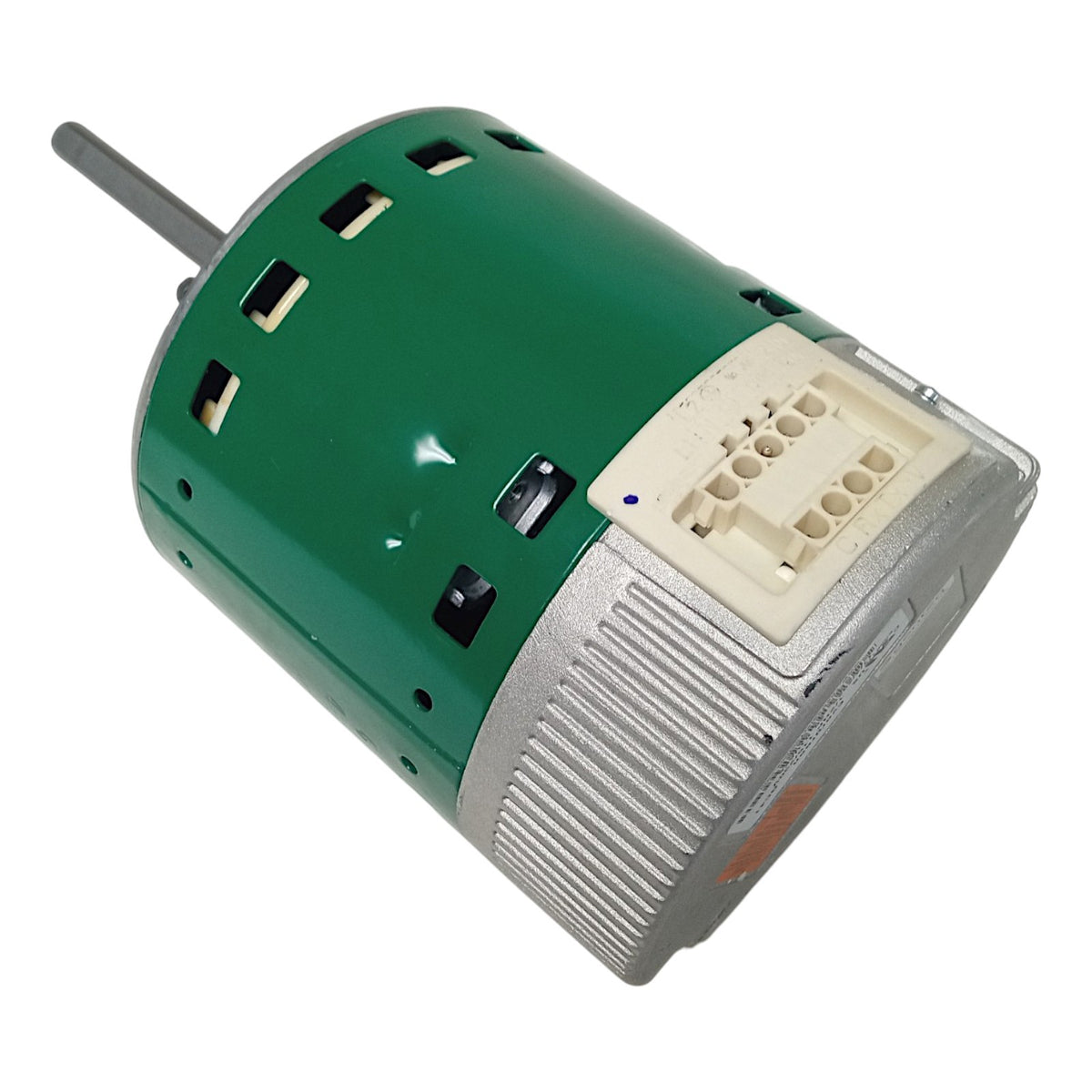

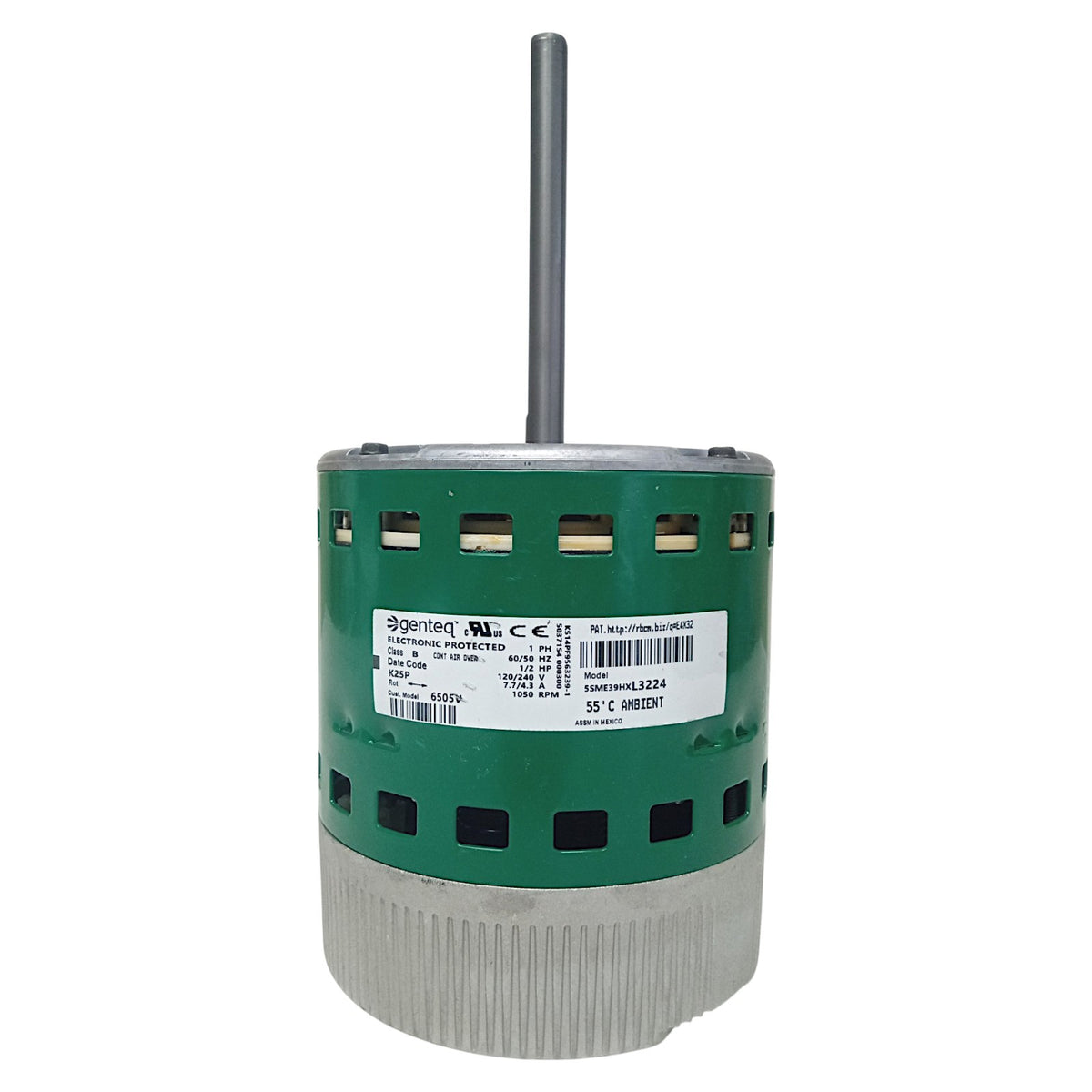

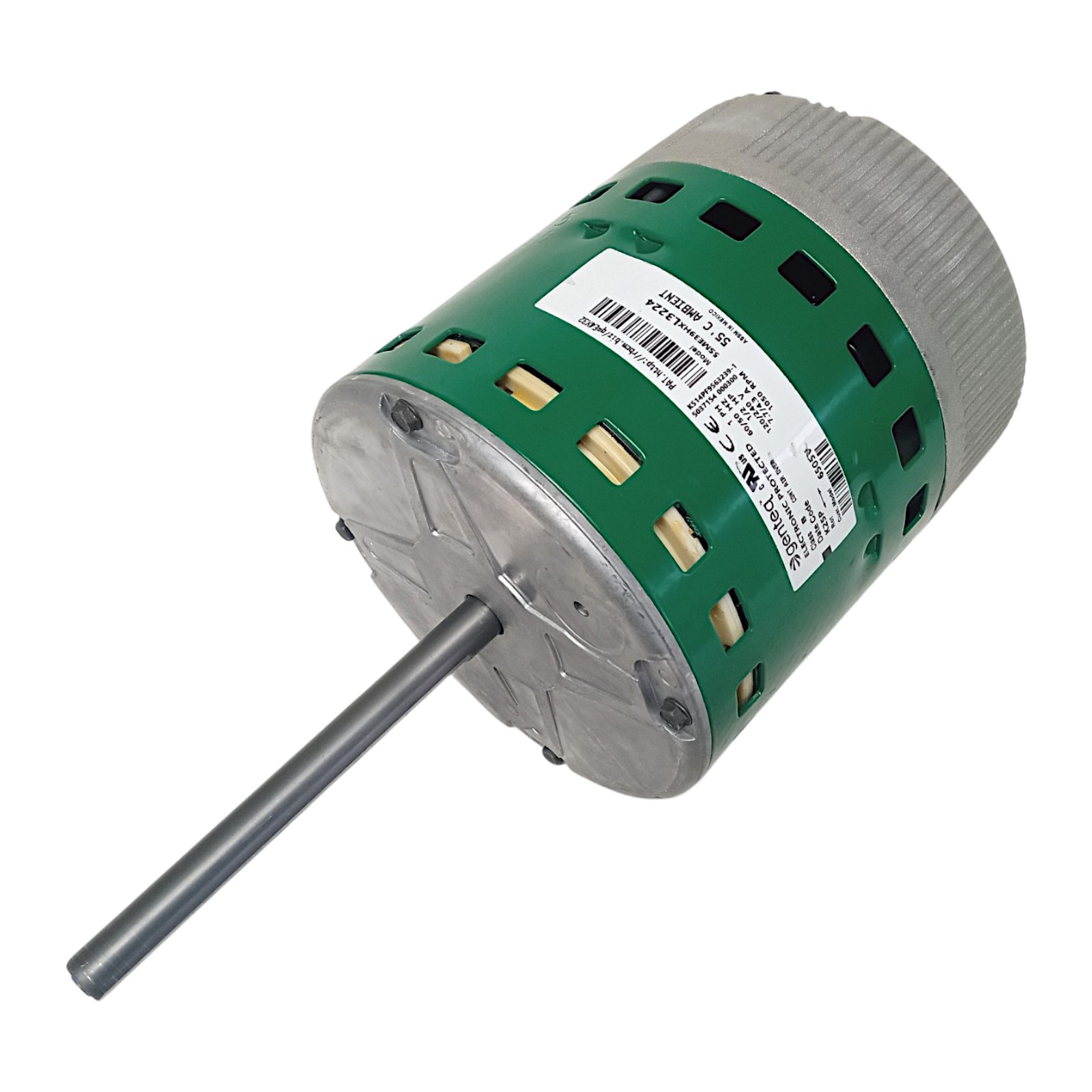

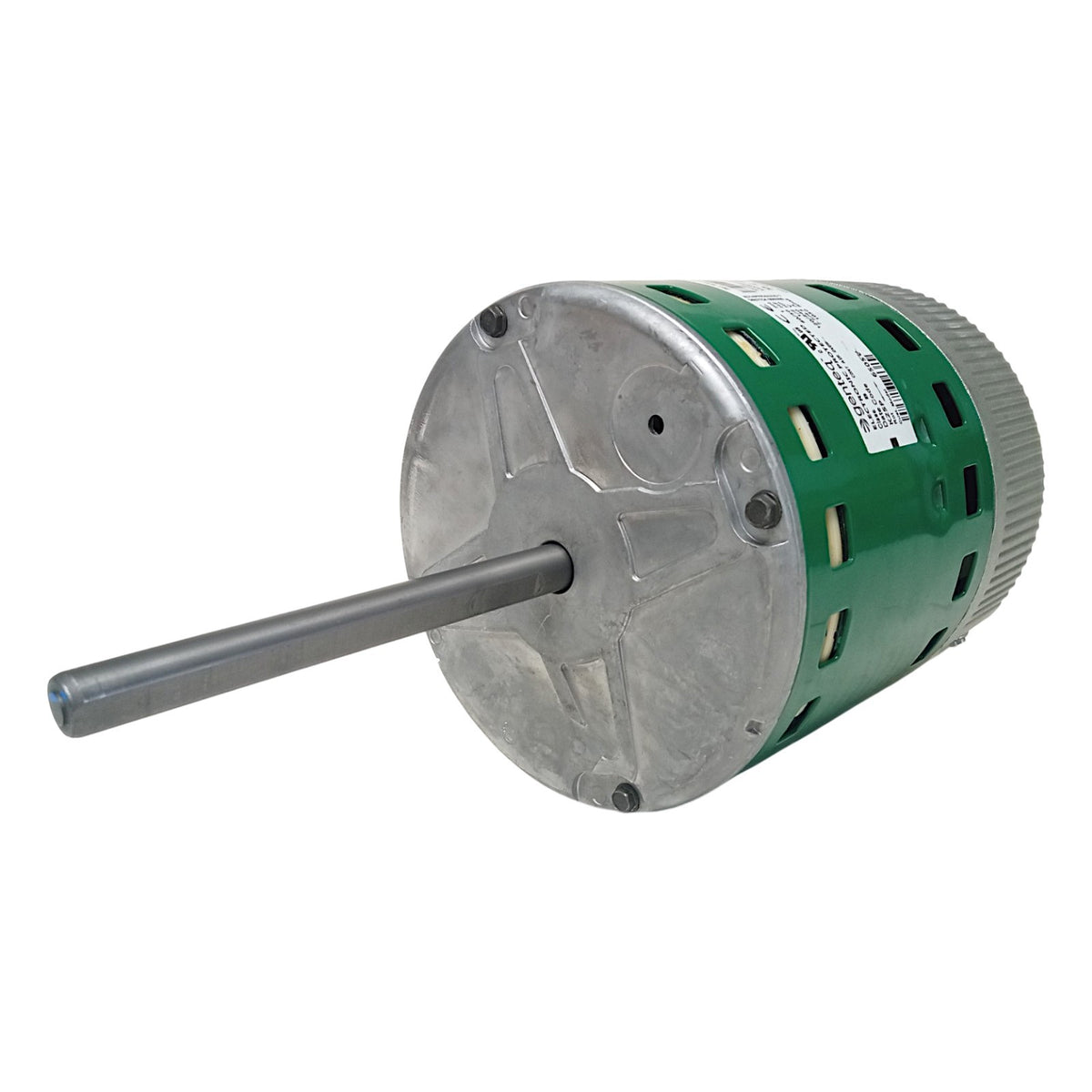

Evergreen 6505V VS - ECM Variable Speed Replacement Motor

The Evergreen VS product line is a drop-in replacement for 16 pin variable speed motor (including models formerly branded GE by Regal Beloit)

Designed to replace Genteq constant airflow (variable speed) ECM indoor blower motors.

Designed specifically to replace Genteq 3.0 motors plug-n-play

Please Note - if Replacing a 1/2HP Eon, 2.0 or 2.3 a interface 5K010V is needed and can be purchased using sku 6505VUI which includes the motor and interface.

If replacing a 1/2HP 2.5 Motor a 6505V motor and a 16-4 pin adapter sku 5K015 is needed and sold separately

Specifications

• HP: 1/2



• Volts: 120/240



• FLA: 7.7/4.3



• RPM: 1050



• Speeds: Variable



• Shaft: .5" x 5" (4.5" SF)



• Dim A: 11.21"



• Dim B: 6.21"



• Rotation: Reversible (CCW/CW)



• Frame: NEMA 48



• Phase: 1



• Output kW: 0.37 kW



• Not Thermally Protected



• Duty: Continuous Over Air

Technical Specifications

• Enclosure: Open Air Over



• Ambient Temperature: 40 C



• Class B



• Ball Bearing



• Shaft Type: Flat



• Frame Length: 4.07 in



• Shaft Extension: 5.00 in



• Poles: 12



• Mounting: Round



• Frame Material: Rolled Steel



• Overall Length: 11.21 in



• Shaft Diameter: 0.500 in

Contractor Benefits

• Pre-programmed



• Plug-n-play



• Dual voltage



• Truck stock



• Automatic dual rotation

Consumer Benefits

• Complete all calls the same day including after hours calls



• Reduce time on call using part on truck



• Built by same manufacturer as original motor



• Maintains system performance and efficiency

Reliability

• Encapsulated electronics



• Electronic overload protection



• 6kV surge protection



• Two year warranty from date of installation



• UL recognized component
