Mastercool Part Number 94661

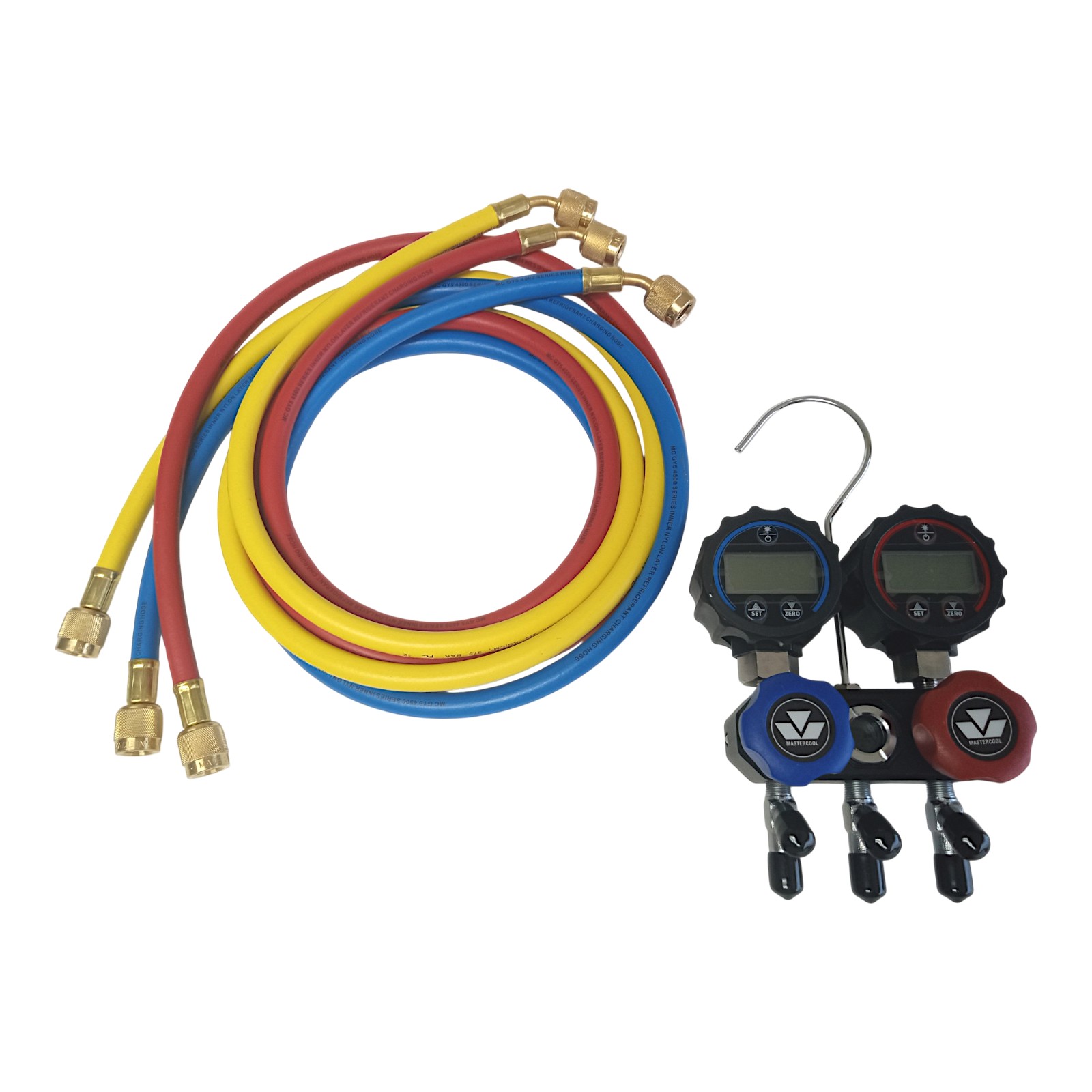

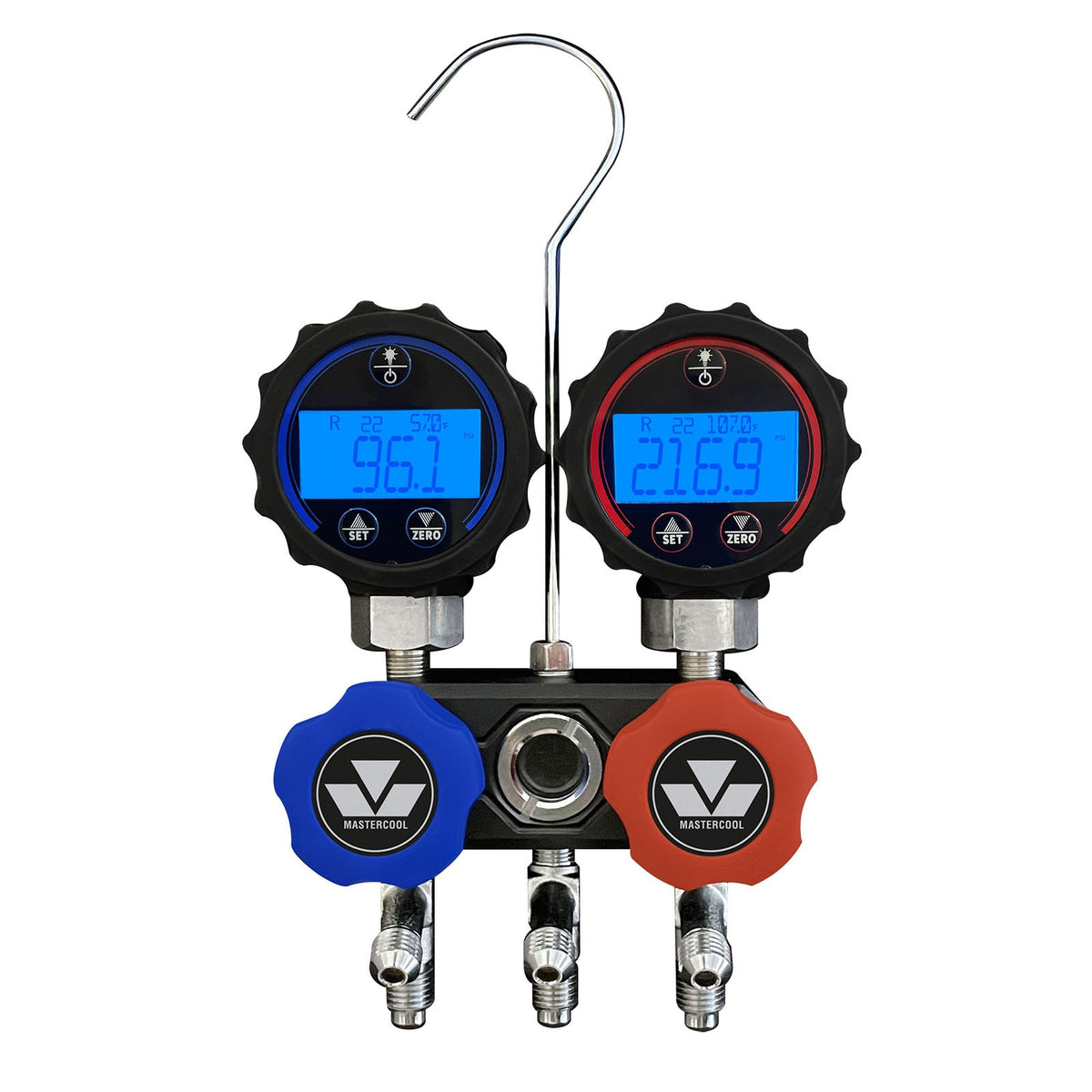

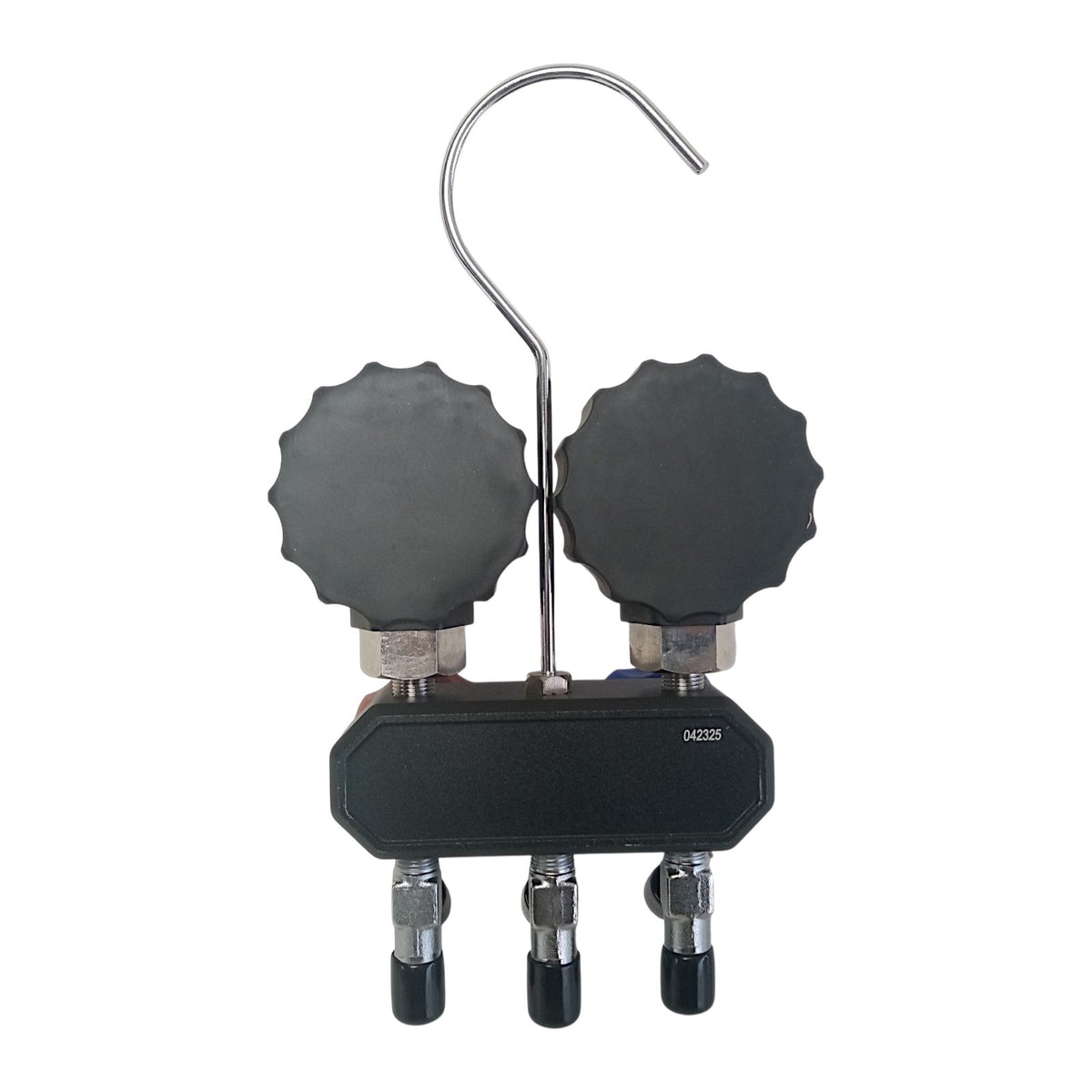

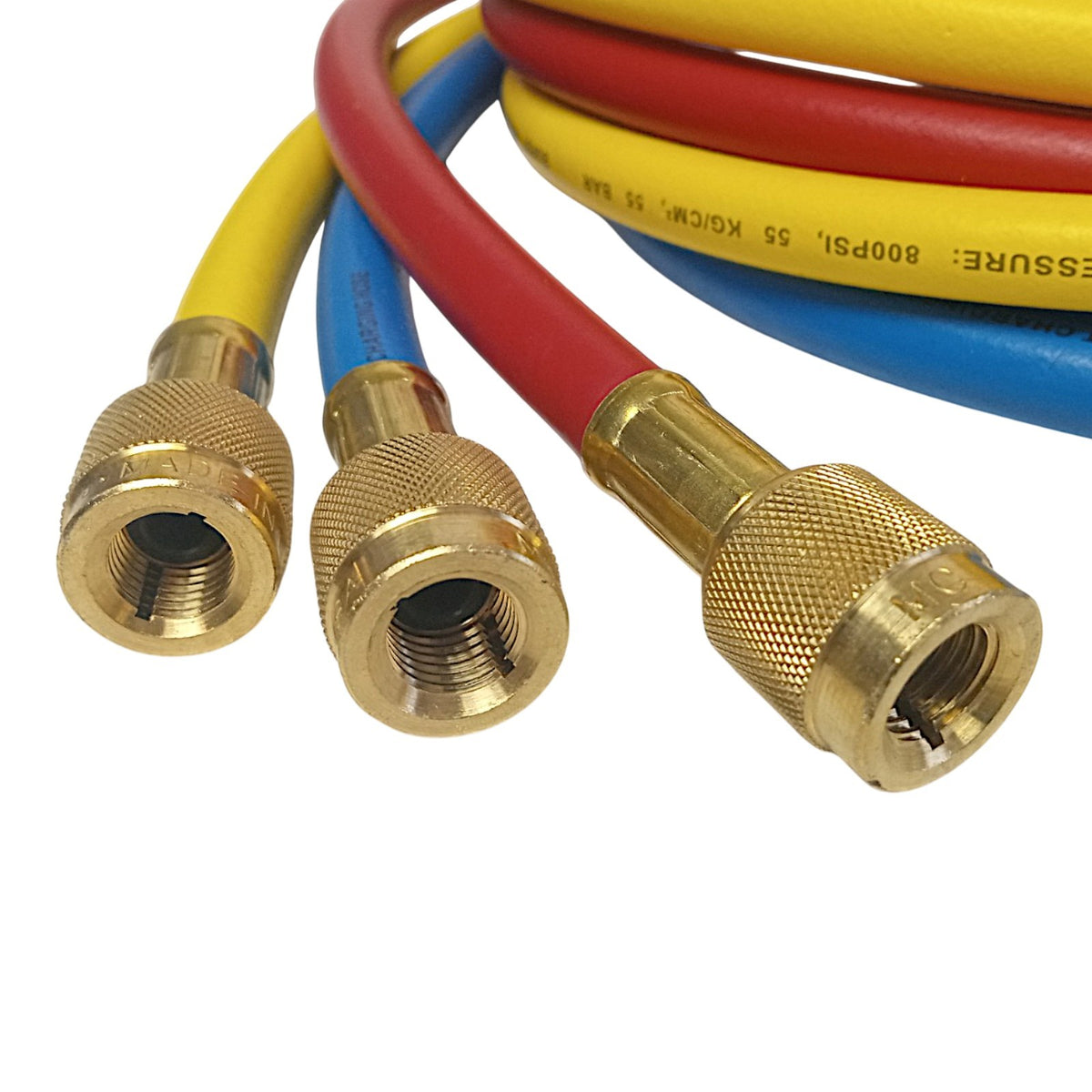

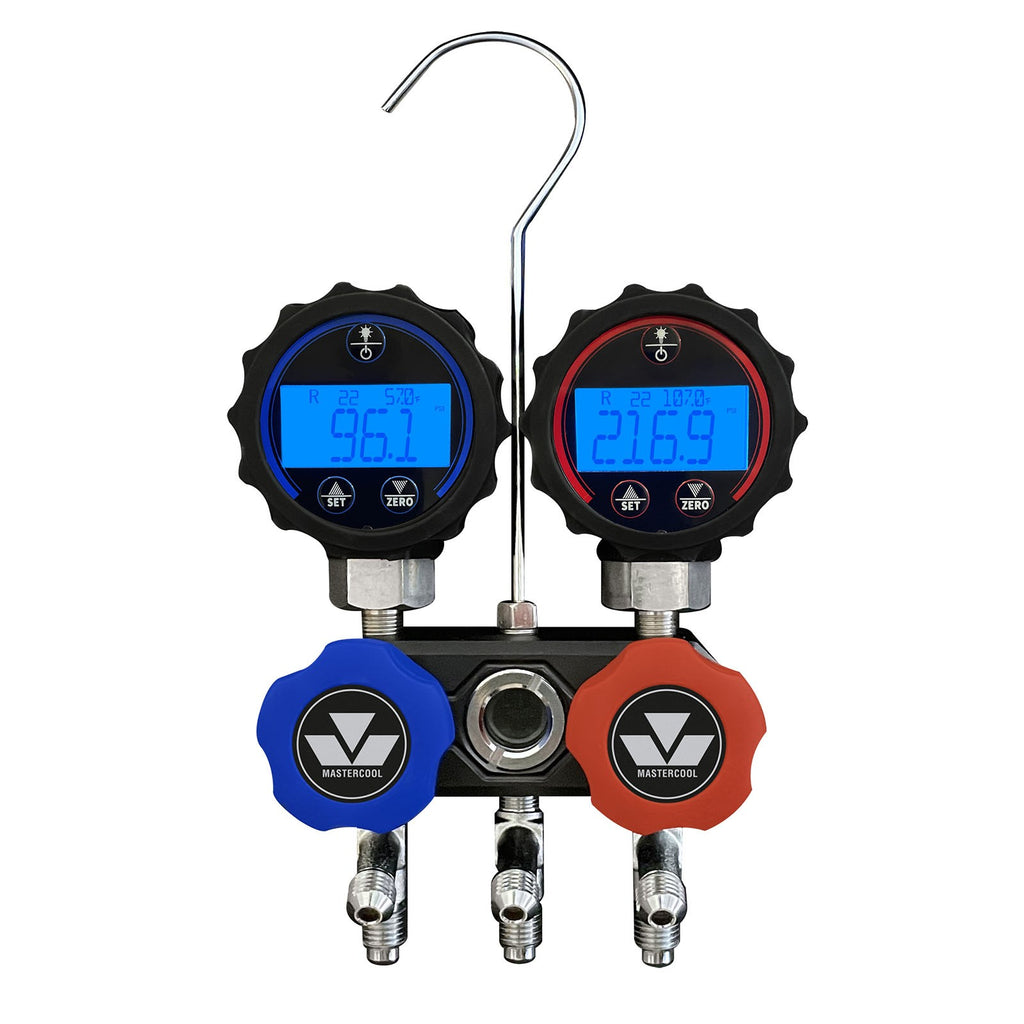

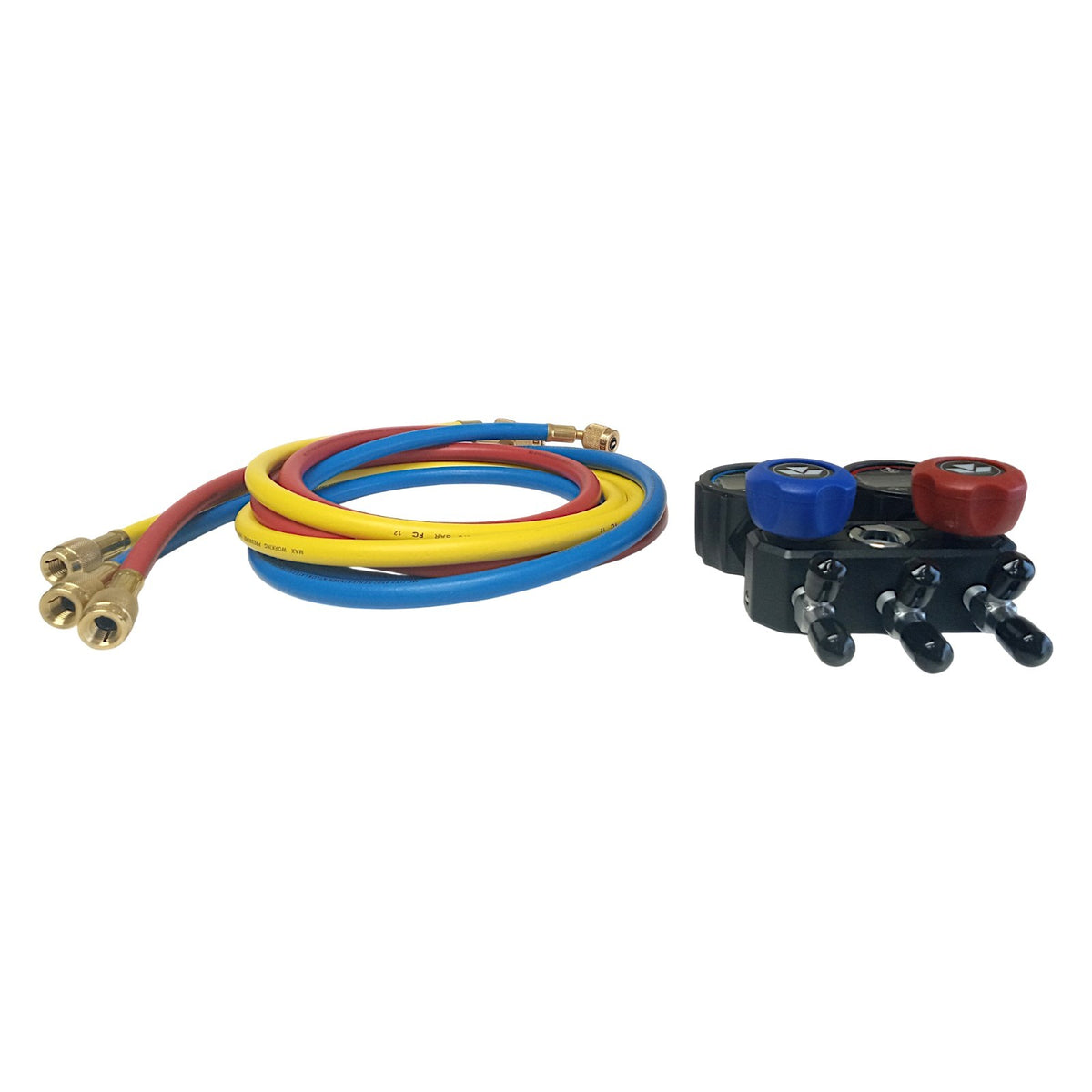

HVAC Refrigeration 2-Way Aluminum A2L Digital Charging Compact Mini-Fold Manifold with Three (3) 60" High Pressure RYB Hoses

Compact manifold with front mounted hose holders allows for precise calculations in the palm of your hand

Includes Zippered Soft Pouch Carrying Case

Features:

• Compact black anodized aluminum block with matte chrome fittings offer an extremely portable solution to fit the needs of every busy technician
• Easily perform pressure/temperature calculations for up to 91 different refrigerants including R134a, R410a and R22 refrigerants
• Unit conversion between MPa, kPa, bar, psi, kg/cm2, inHg
• Large 4-digit “blue” backlit LCD display provides vibrant readings in even the darkest of environments
• Displays alarm indication when over range, Celsius or Fahrenheit designation and low battery warning directly on the LCD screen
• Large sight glass for quick visual refrigerant checks
• Easy to grip knobs

Specifications:

• Pressure Range: Low Pressure Range: -14.5 – 500 psi (-0.1 – 3.4 MPa) High Pressure Range: -14.5 – 800 psi (-0.1 – 5.5 MPa)
• Resolution: 0.5 psi
• Accuracy: +/-0.5% FS
• Measurement Units: MPA, kPa, bar, psi, kg/cm2, inHg
• Temperature Unit: ˚C/˚F
• Over Range Alarm: Display -OL-
• Operating Temperature: -10˚C to 60˚C
• Battery: CR2450
• Battery Life: Approximately 6 months
• Sampling Rate: 1 second
• Low Battery Indication: icon on LCD
• Display: 30 mm x 17 mm LCD
• Blue Backlight: Auto-off after 6 seconds

HVAC Compact 2-Way Manifold

• 1/4” SAE flare fittings
• Front facing hose holder
• Packaged in a zippered carry case
