Motor for Coleman RV Condenser Fan Motor for Furnace & AC

Replacement for Brands and numbers Fasco D1092, 7184-0156, 7184-0432, Coleman, 1468-306, 1468A306, 1468-3069, 7855MVA-A11U (8333 series), E3803

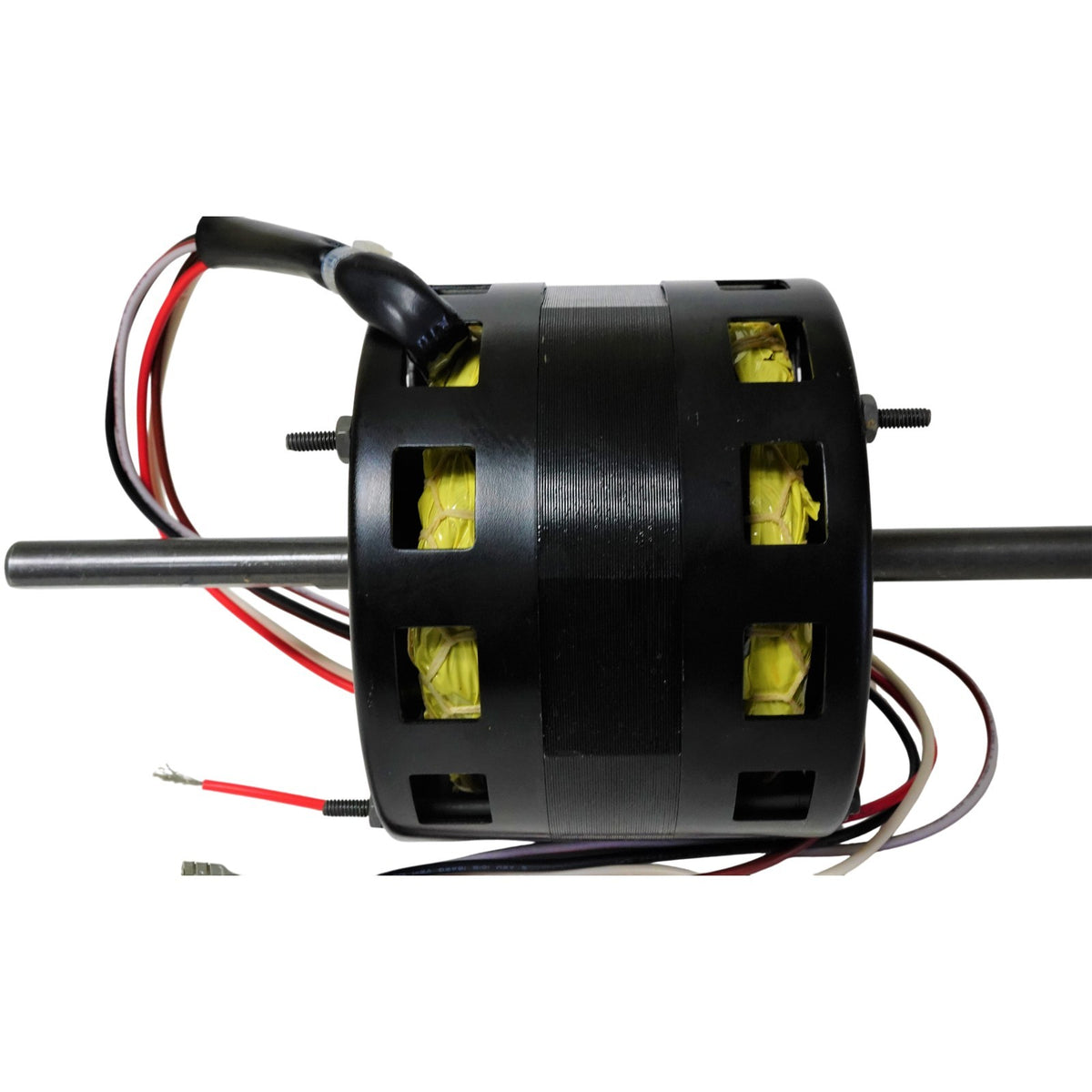

The Coleman RV Rooftop A/C Motor (often referenced by part number 20048, Fasco D1092, or Coleman 1468-3069) is a 1/3 HP, 115-volt, two-speed condenser fan motor. It powers the blower and fan on Coleman Mach series rooftop air conditioners.

To know if you need to replace your RV air conditioner motor, look for signs of mechanical failure, electrical breakdown, or complete loss of function.

Visual and Audio Signs

• Loud screeching: Indicates worn-out or dry internal bearings.
• Humming noise: The motor receives power but cannot spin.
• Seized shafts: The external metal shafts will not spin freely by hand.
• Burning smell: Signals overheating coils or shorted internal wiring.

NBK 20048 Condenser Fan Motor Specifications:

• H.P. 1/3
• Motor Voltage 115
• Amps 3.4
• RPM 1675 / 1080
• Speeds Two (2)
• Bearings Sleeve
• Enclosure Open
• Hertz 60

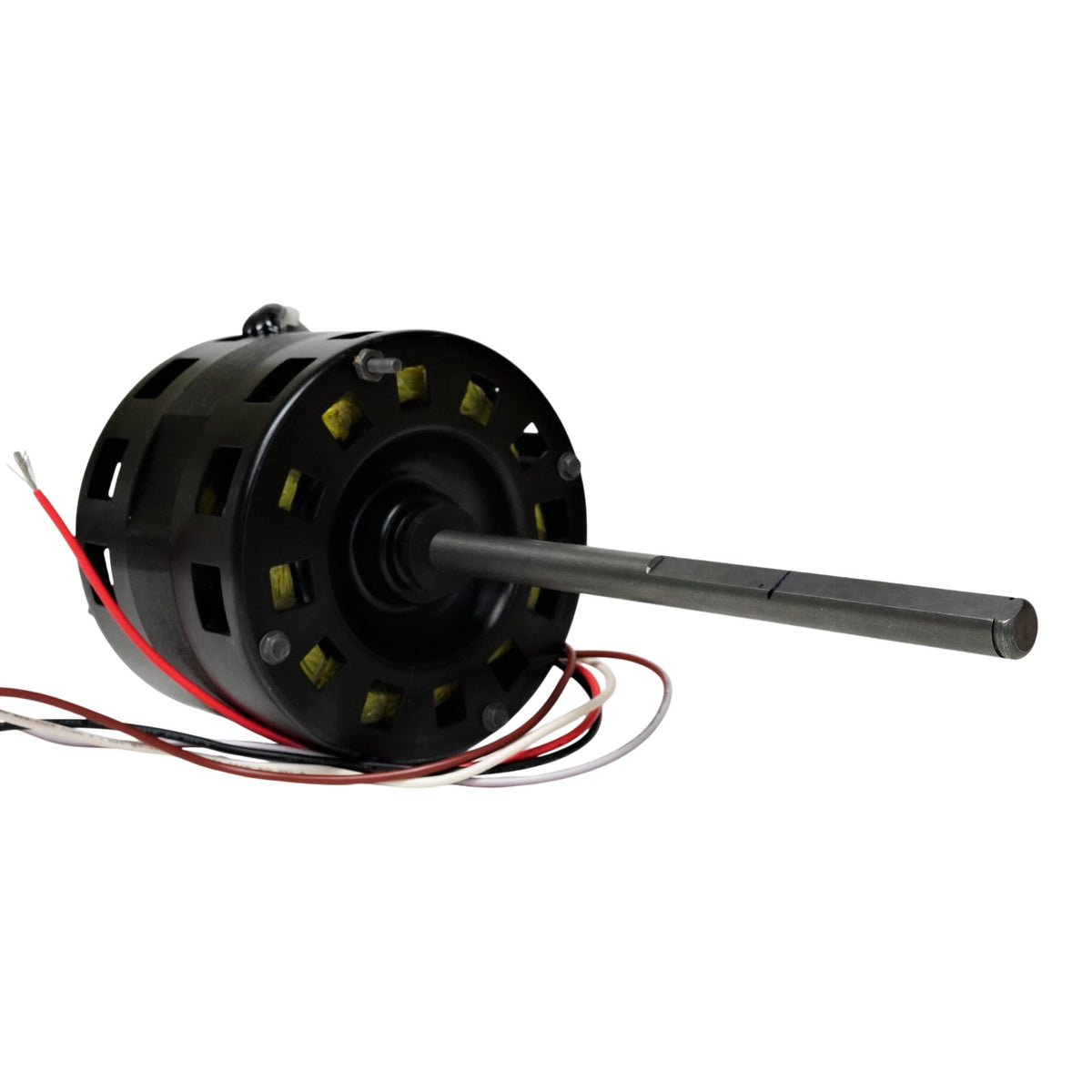

• Shaft Dimensions (In.) Dia x Lgth 7 15/16 x 1/2 x 3 1/2
• Length Less Shaft (In.) 3 1/2
• Mounting Option Belly Band
• NEMA Frame 42
• Overload Protection Automatic

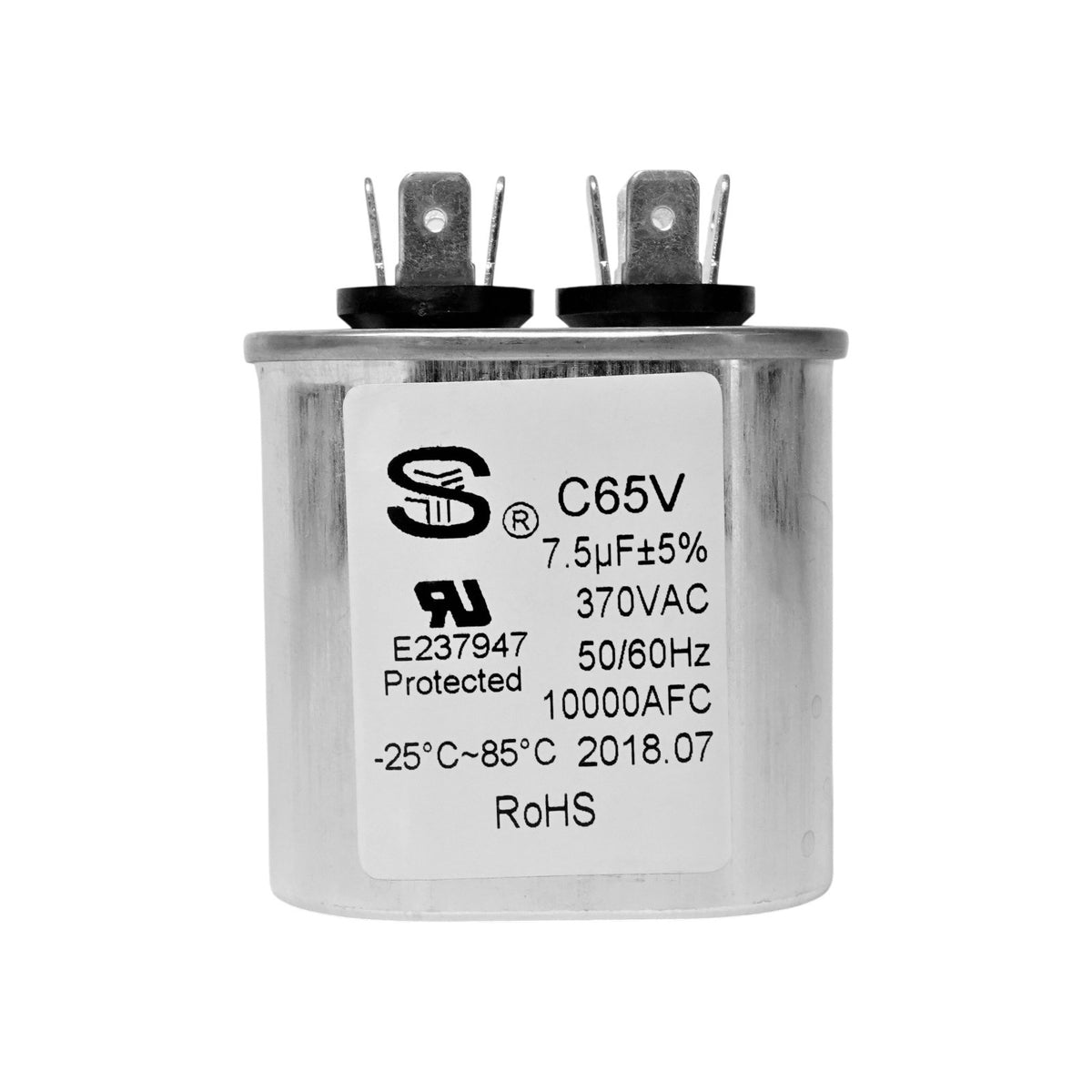

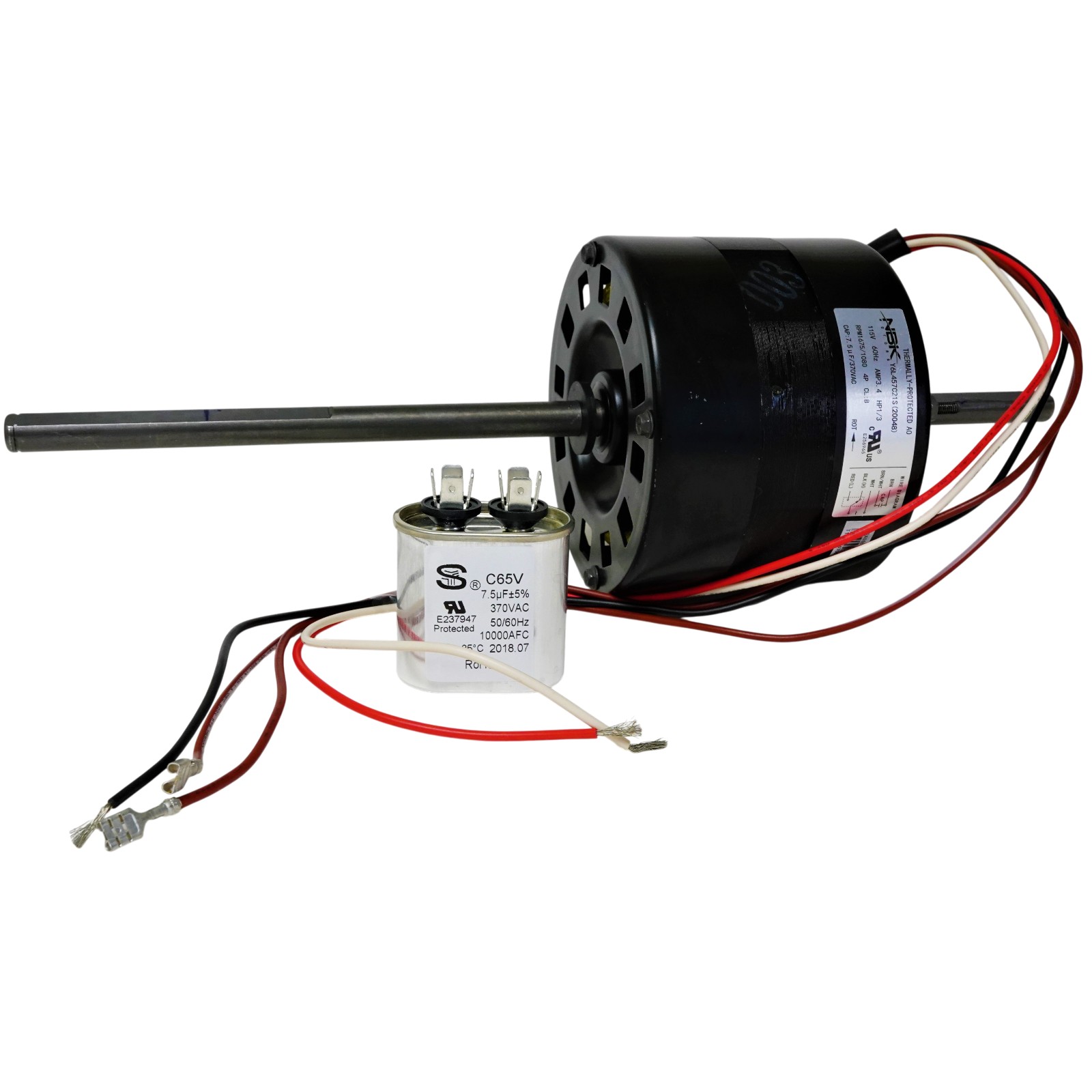

• Capacitor Start, 7.5x370 Capacitor included
