Nu-Calgon Part Number 4910-10

LX15 Easy 24 Volt Input voltage on installation

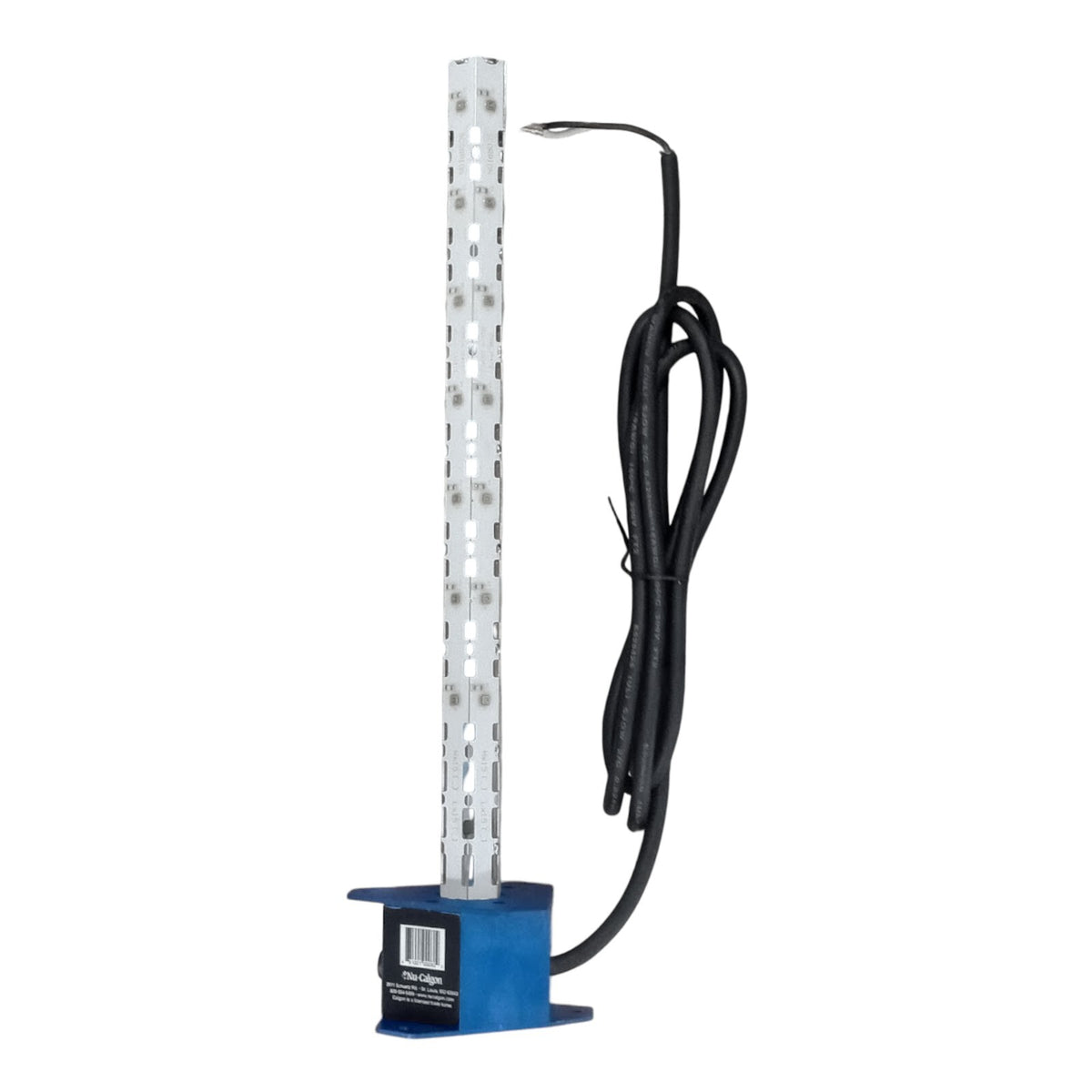

Scorpion UVC-LED Ultraviolet Light System.

The Scorpion is a UVC-LED disinfection unique system designed for use in residential and light commercial HVAC systems. The LED light has 30,000 hours of run time and with an integrated air flow sensor the Scorpion UVC-LED can last up to 5 times longer than traditional UV bulbs. The Scorpion UVC-LED is designed to kill mold, mildew, bacteria, viruses, and other harmful biological growth in the HVAC system and on the evaporator coil. The system will also help reduce foul and musty odors like dirty sock smell and will even help keep the drain line from clogging due to buildup in the condensate line.

The Scorpion is designed to treat any residential ducted HVAC system with no maintenance for up to 30,000 hours of treatment life. The system can easily be installed using the integrated magnet inside, above, or below the evaporator coil. If the Scorpion is being installed in a system where the magnet cannot be used than use the supplied hardware to mount the Scorpion to your system. The powerful LED light should be installed in a location where it is fully shining on the evaporator coil to provide complete treatment.

Features:

• 15 UVC-LED Disinfecting System


• Up to 5X the life compared to standard UV bulbs

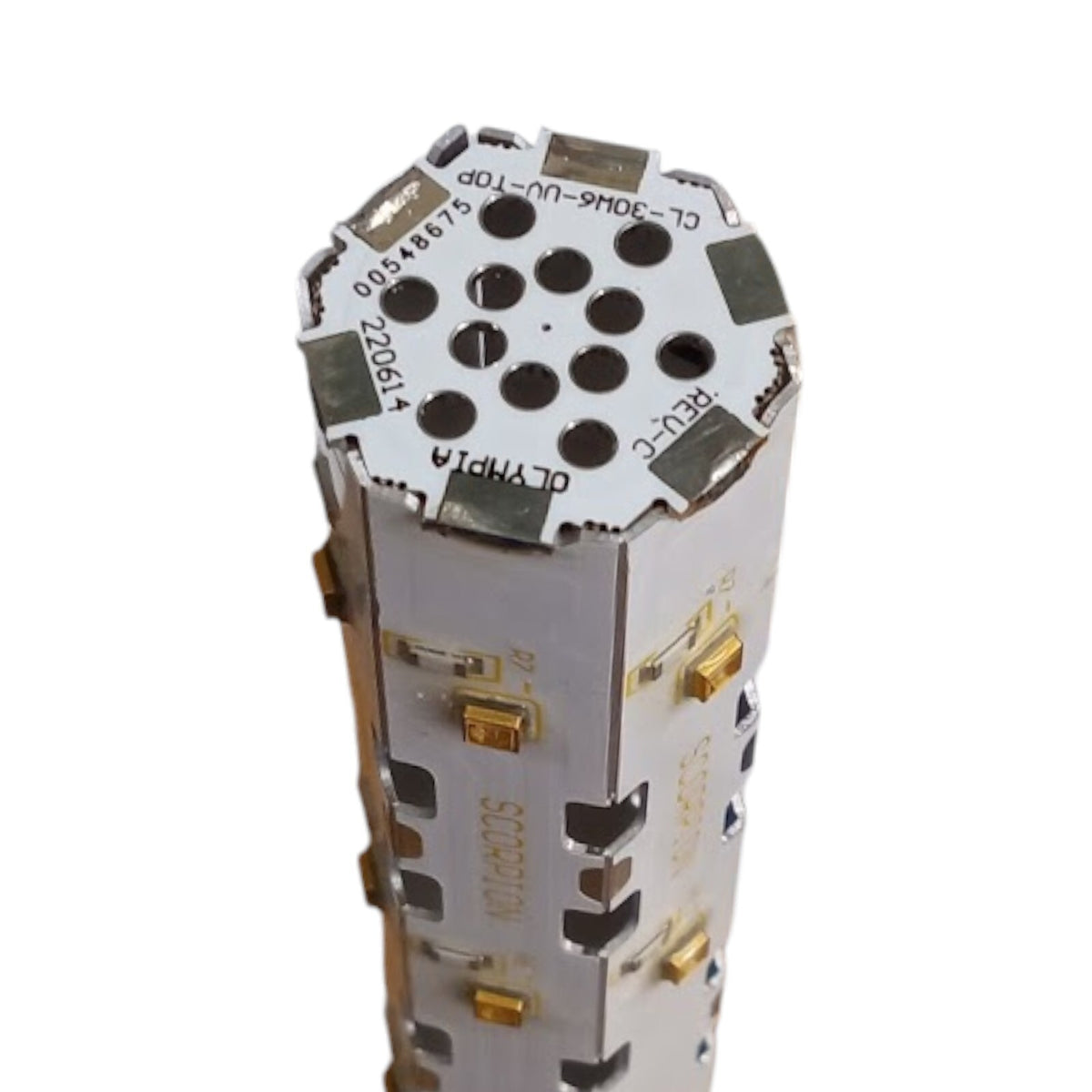

• Rugged design with shatterproof LED


• Kills mold, mildew, viruses, and bacteria on and around your HVAC coil


• Stops foul odors like dirty sock smell

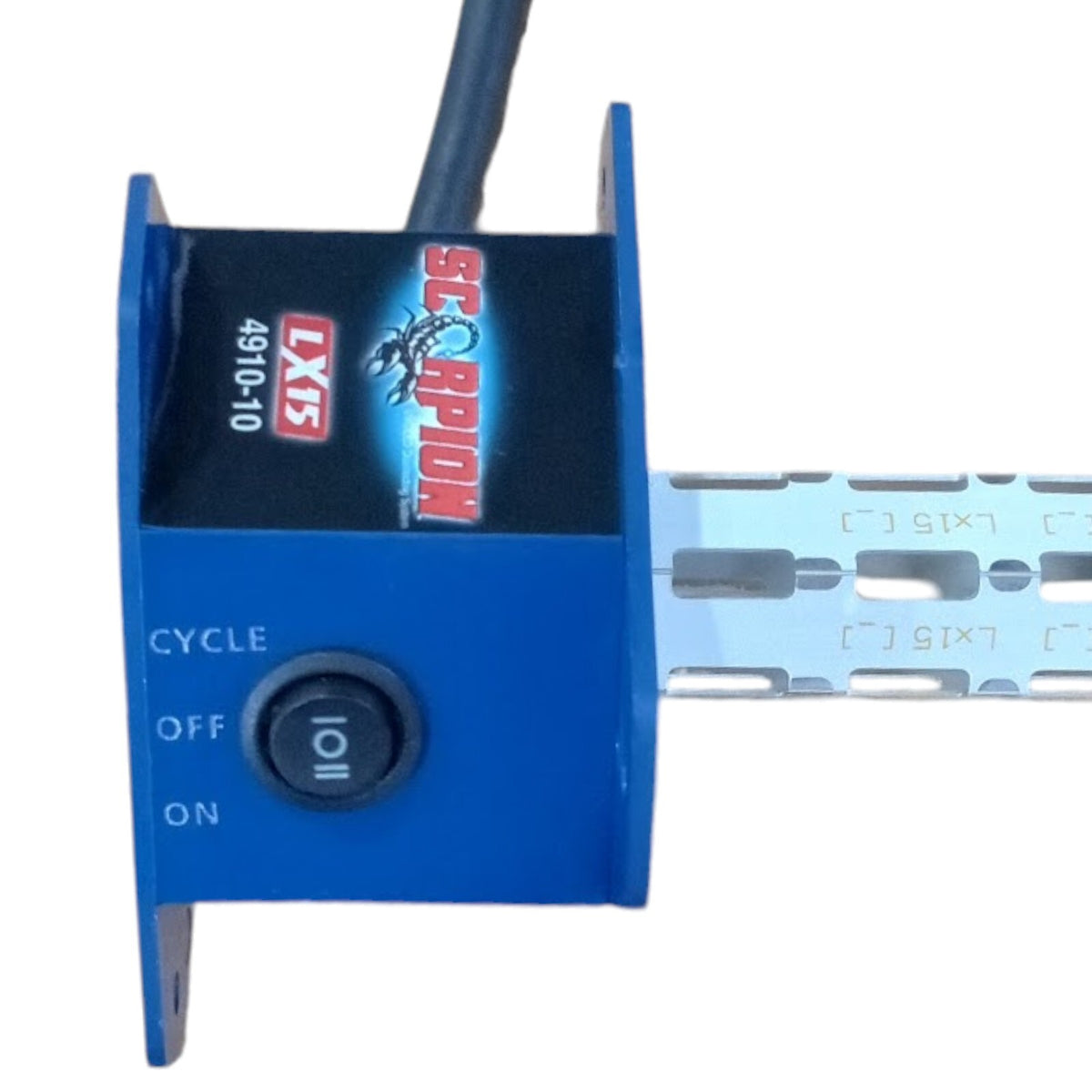

• Integrated toggle switch for dual run mode options


• 360 degree design for complete treatment


• Air flow sensor to power only when fan is running

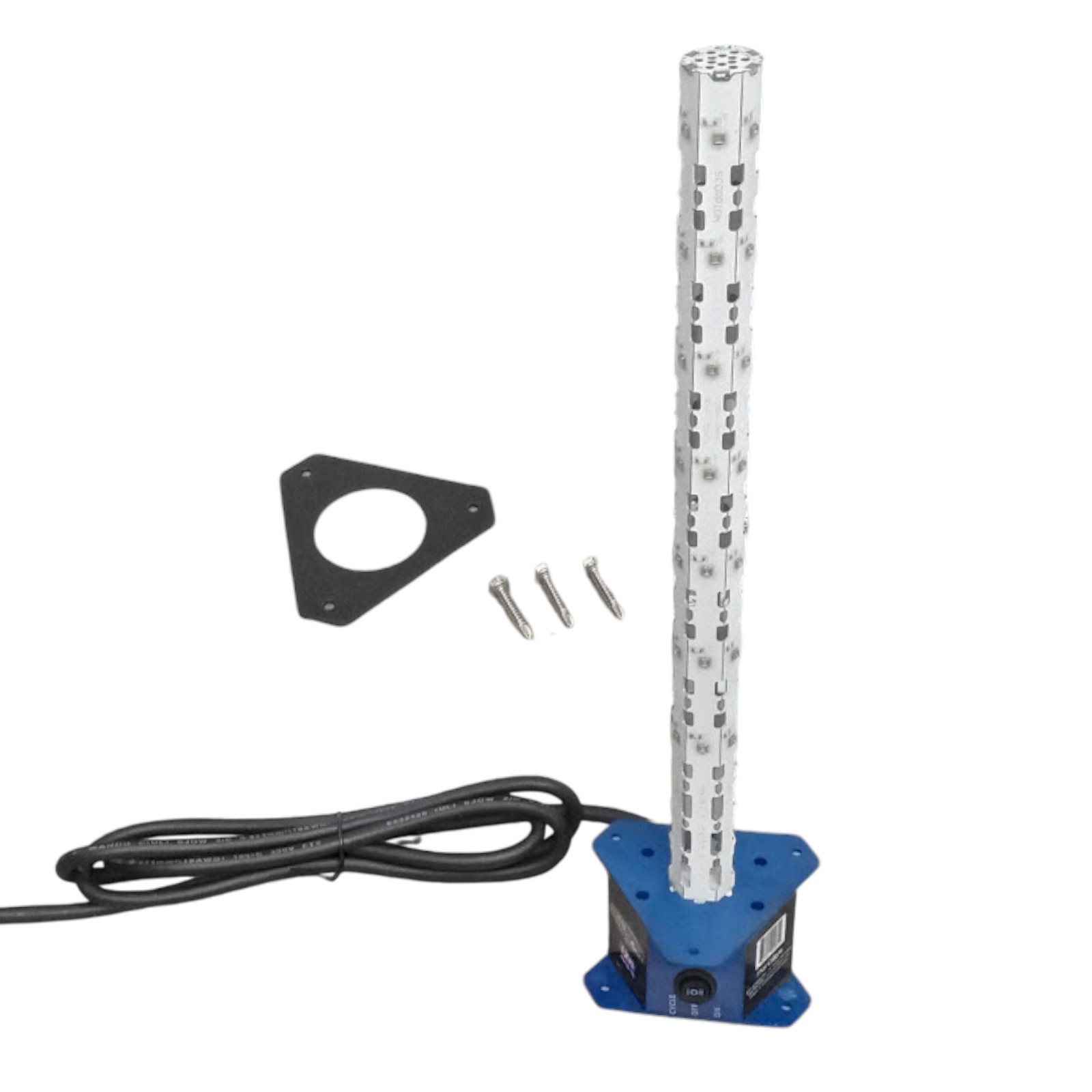

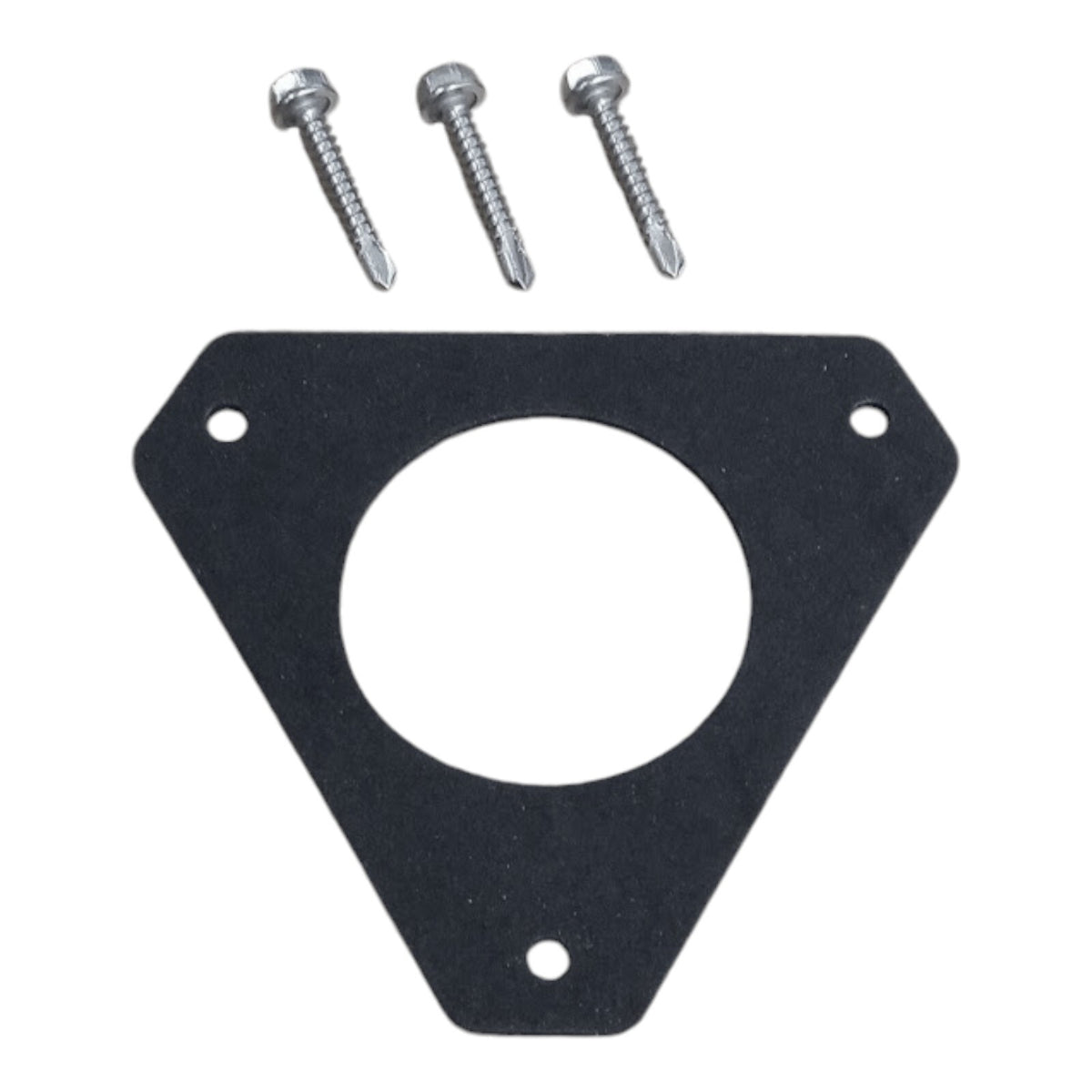

• Easy install with integrated magnet or supplied hardware


• Easy 24VAC input voltage on installation


• Optimum 265nm wavelength

Helps treat the following IAQ issues:

• KIlls harmful bacteria in your HVAC system


• Prevents mold and mildew from forming on the coil


• Stops odors like dirty sock smell


• Helps prevent drain lines from clogging


• Reduces harmful bio-film in the HVAC system

Third party tested to kill Pathogens

• Kills 99.9% of SARS-CoV-2


• Kills 99.9% of Mold


• Kills 99.9% of E. coli


• Visit NuCalgon.com for complete performance data and more

Meet’s UL 2998 zero ozone emission certification
