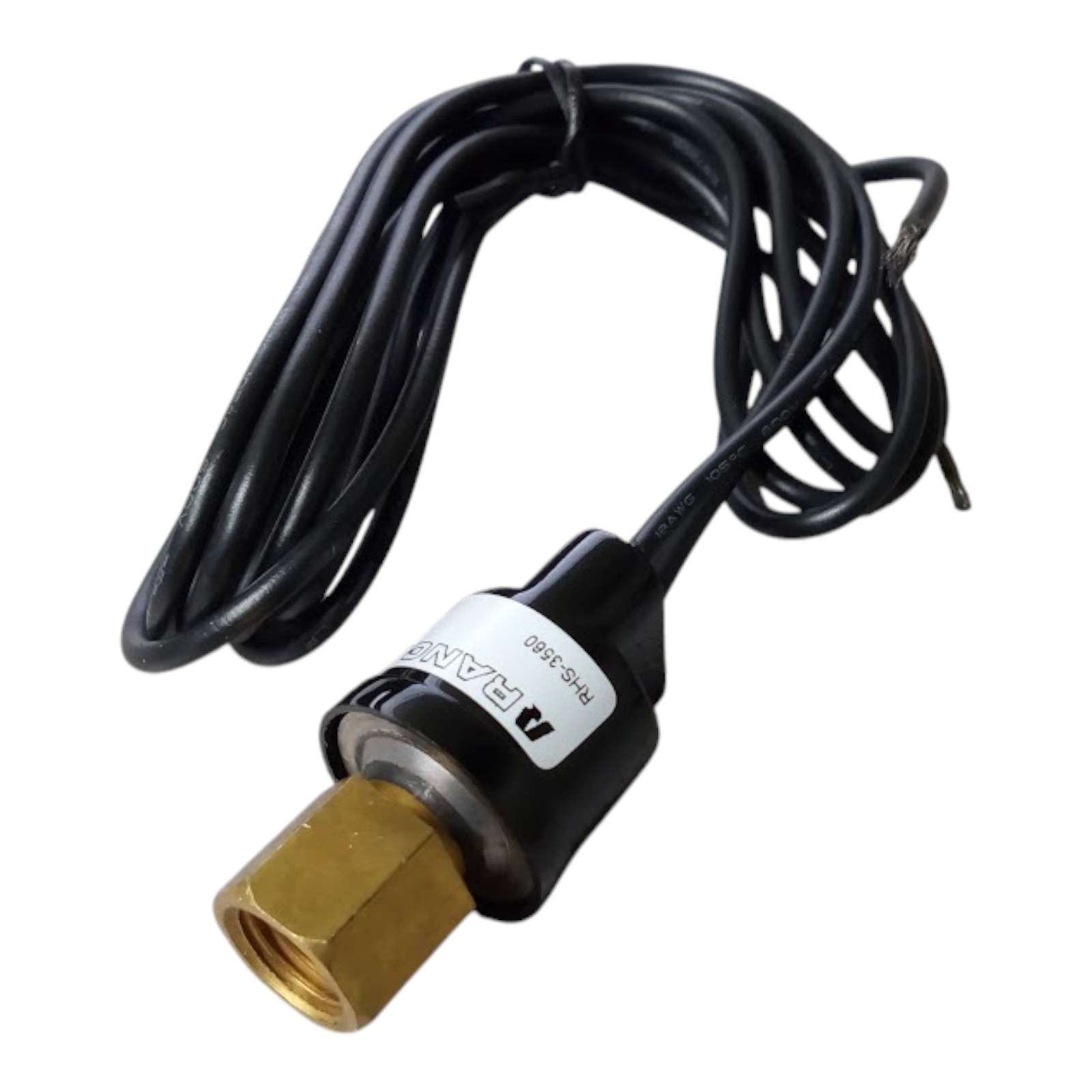

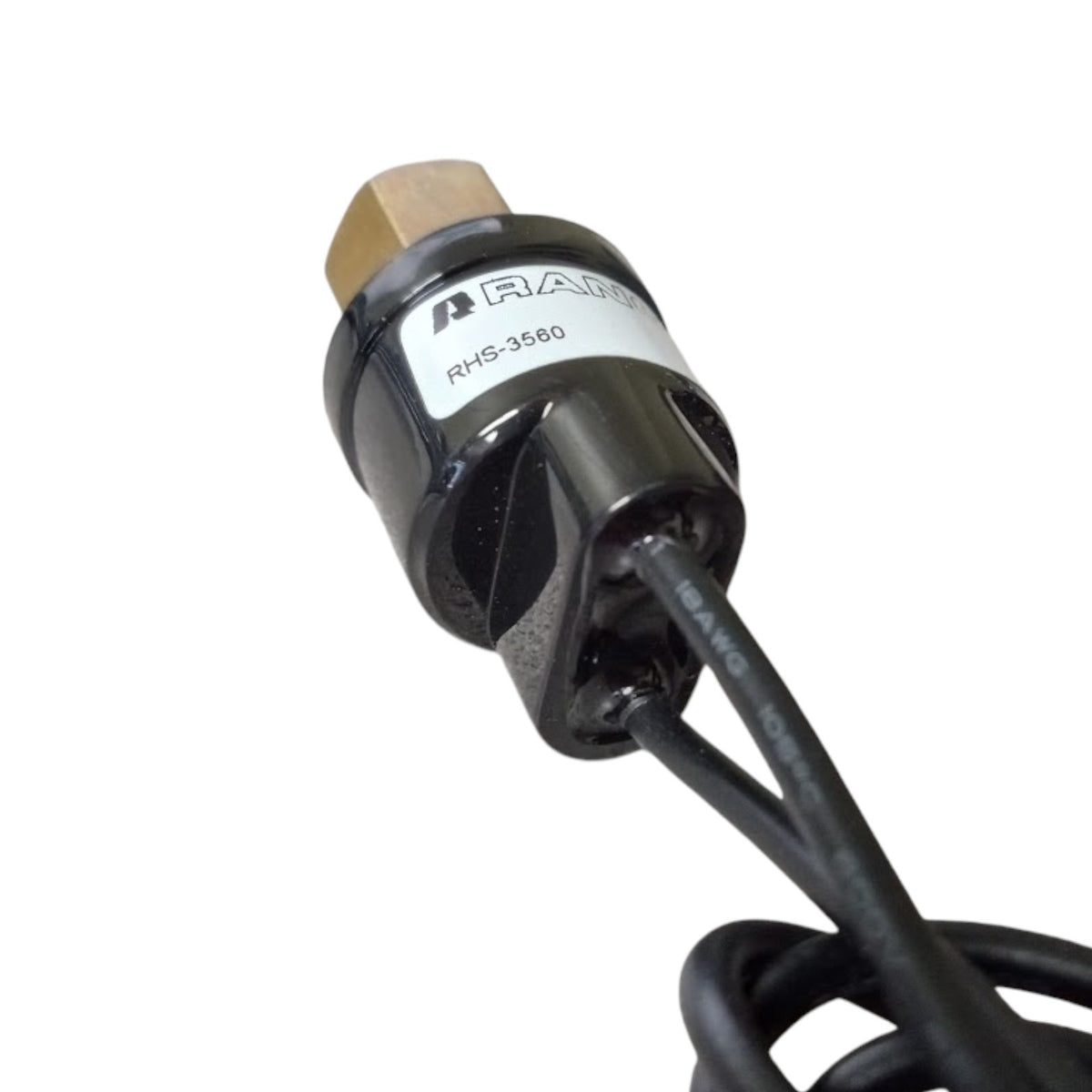

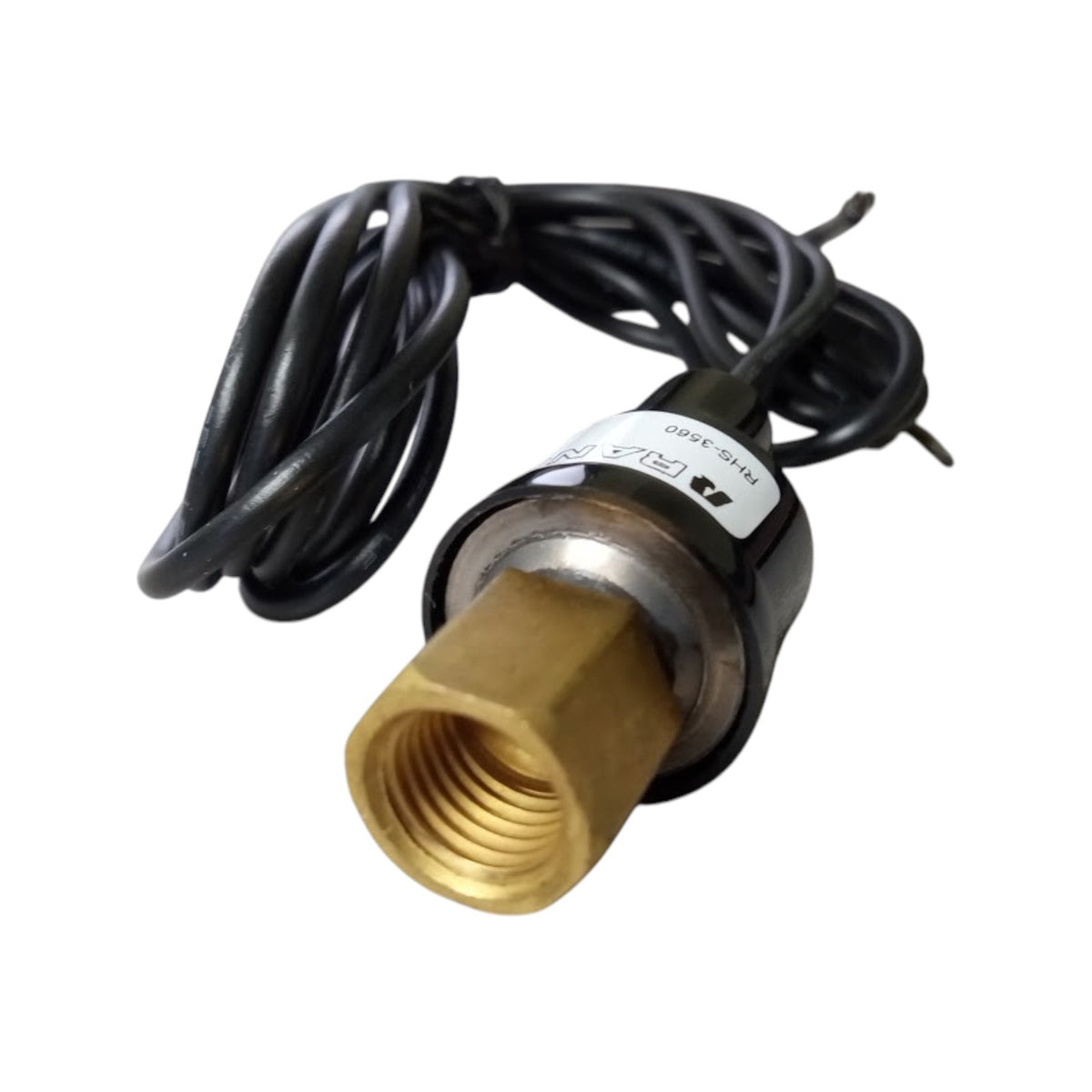

Ranco Part Number RHS-3560 Low Pressure Switch

Open: 35 Close: 60 PSI HVAC Control

Applications: Heat Pump, Air Conditioner, and Refrigeration systems

Ranco pressure switches are designed to sense and respond when a present pressure threshold is reached, with models available for low-pressure and high-pressure cutouts as well as operating control cycling. These switches support a wide range of applications, from HVAC/R to transportation and industrial systems, including environments that demand exceptional performance under extreme conditions. Durable, reliable, and compact, Ranco pressure switches can be configured with a nearly unlimited variety of pressure fittings and electrical connections, making them suitable for virtually any system application. Each unit features a hermetically sealed design constructed from premium materials, delivering a truly customized sensing solution for long-term dependable operation.

Features and Benefits:

• Hermetically (epoxy) sealed sensor design ensures protection from environmental conditions


• Excellent set point stability and cycle life due to a high-quality, mobile switch arm


• Robust welded and potted wire leads facilitate reliable operation


• Premium sensor materials and design, including a high-grade stainless steel disc for reliable lifetime performance


• Replacement for Supco: SLP3560, Mars: 43349, and Johnson Controls: P100AP-2C

Specifications:

• Application: Low Pressure


• Reset: Automatic


• Open (Cut Out): 35 PSI


• Close (Cut In): 60 PSI


• Pressure Range: 0-50 bar, 0-735 psig


• Terminal Type: Normal Open (Low Pressure Cutout) | Normal Closed (High Pressure Cutout)


• Burst Pressure: 345 bar, 5000psig


• Fluid Temperature: -55 C to 135 C / -65 to 275 F


• Ambient Temperature: -30 C to 70 C / -40 to 185 F


• Electrical Rating: 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA


• Pressure Fittings: 1/4" SAE FF


• Electrical Connection: IP65-rated 1m wire lead cables


• Lifetime (Cycles): 100,000
