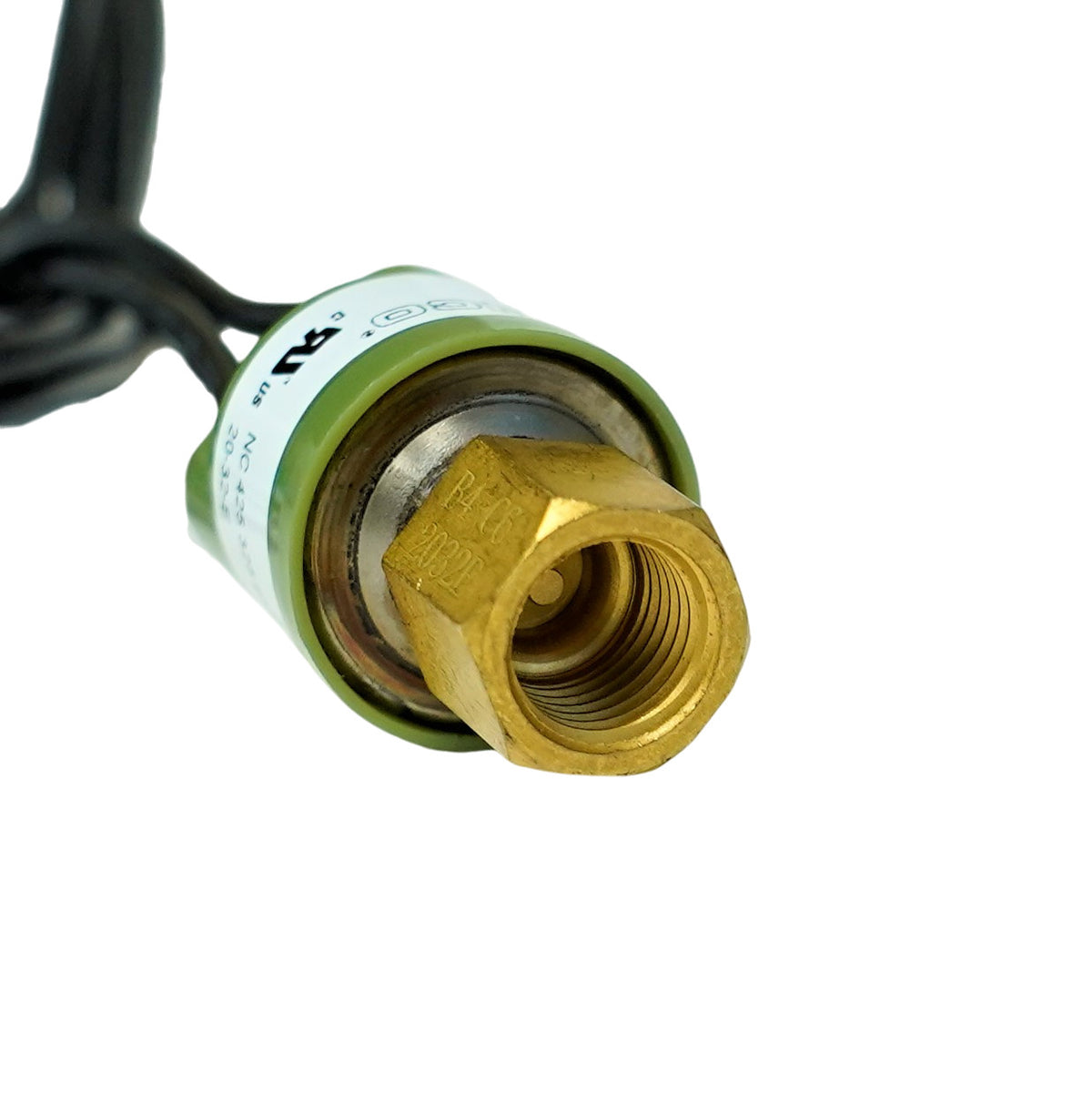

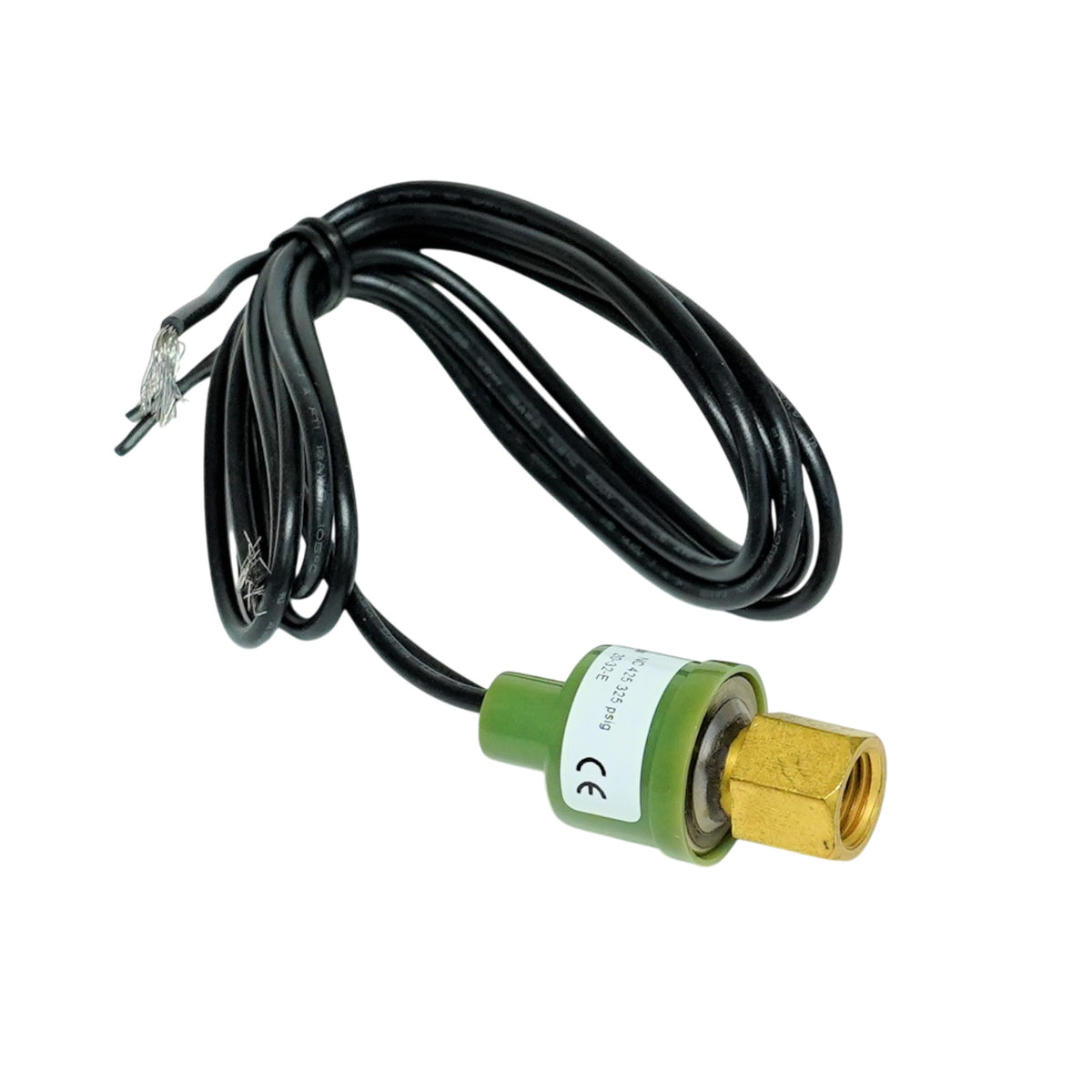

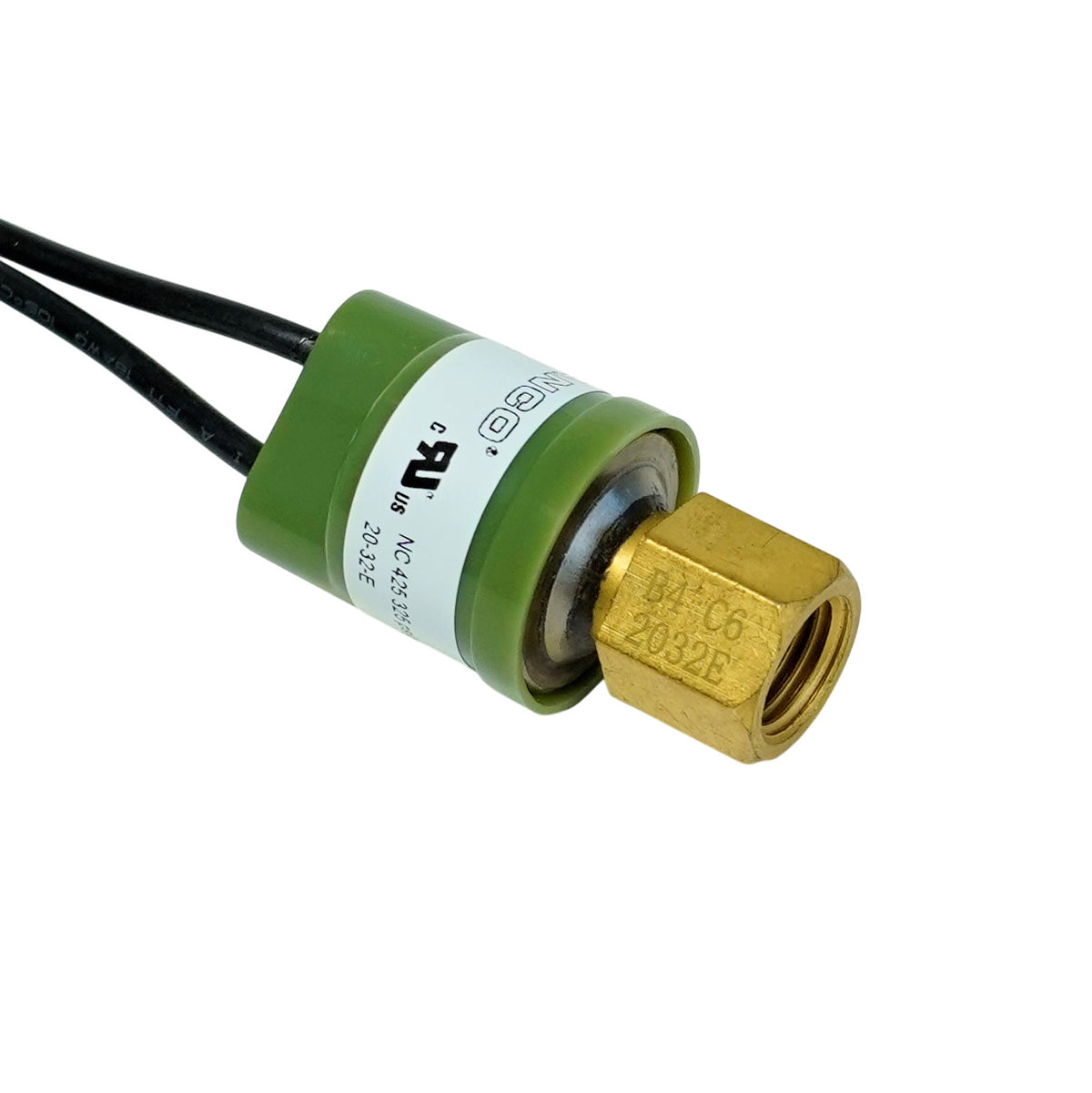

Ranco part number RHS-425325

High Pressure Switch - 425 PSI Open 325 PSI Close

Ranco pressure switches are designed to sense and act upon reaching a pre-set pressure threshold. The switches are durable, reliable and compact, and can be equipped with a nearly limitless variety of pressure fittings and electrical connections.

Features and Benefits

• Hermetically (epoxy) sealed sensor design ensures protection from environmental conditions
• Excellent set point stability and cycle life due to a high quality, mobile switch arm
• Robust welded and potted wire leads facilitate reliable operation
• Premium sensor materials and design, including high-grade stainless steel disc for reliable lifetime performance


Specifications

• Application: High Pressure
• Open (Cut-Out): 425 PSI
• Close (Cut-In): 325 PSI
• Reset: Automatic
• Pressure Range: 0-50 bar, 0-735 PSIG
• Burst Pressure: 345 bar, 5000 PSIG
• Terminal Type: Normally Closed
• Fluid Temperature: -65 to 275 deg F (-55 to 135 C)
• Ambient Temperature: -40 to 185 deg F (-30 to 70 C)
• Electrical Rating: 5.8 FLA/34.8 LRA at 120 VAC, 2.9 FLA/17.4 LRA at 240V, 375 VA at 120/227 VAC, 125 VA at 24 VAC
• Pressure Fittings: 1/4 in. SAE FF
• Electrical Connection: IP65 rated 1m wire lead cables
• Lifetime: 100,000 Cycles


Applications

• Pressure limiting
• System monitoring and alarm
• Fan cycling
• Specialty controls


Replacement for Johnson P100CP-2C, Mars 43333 and Supco SHP425325
