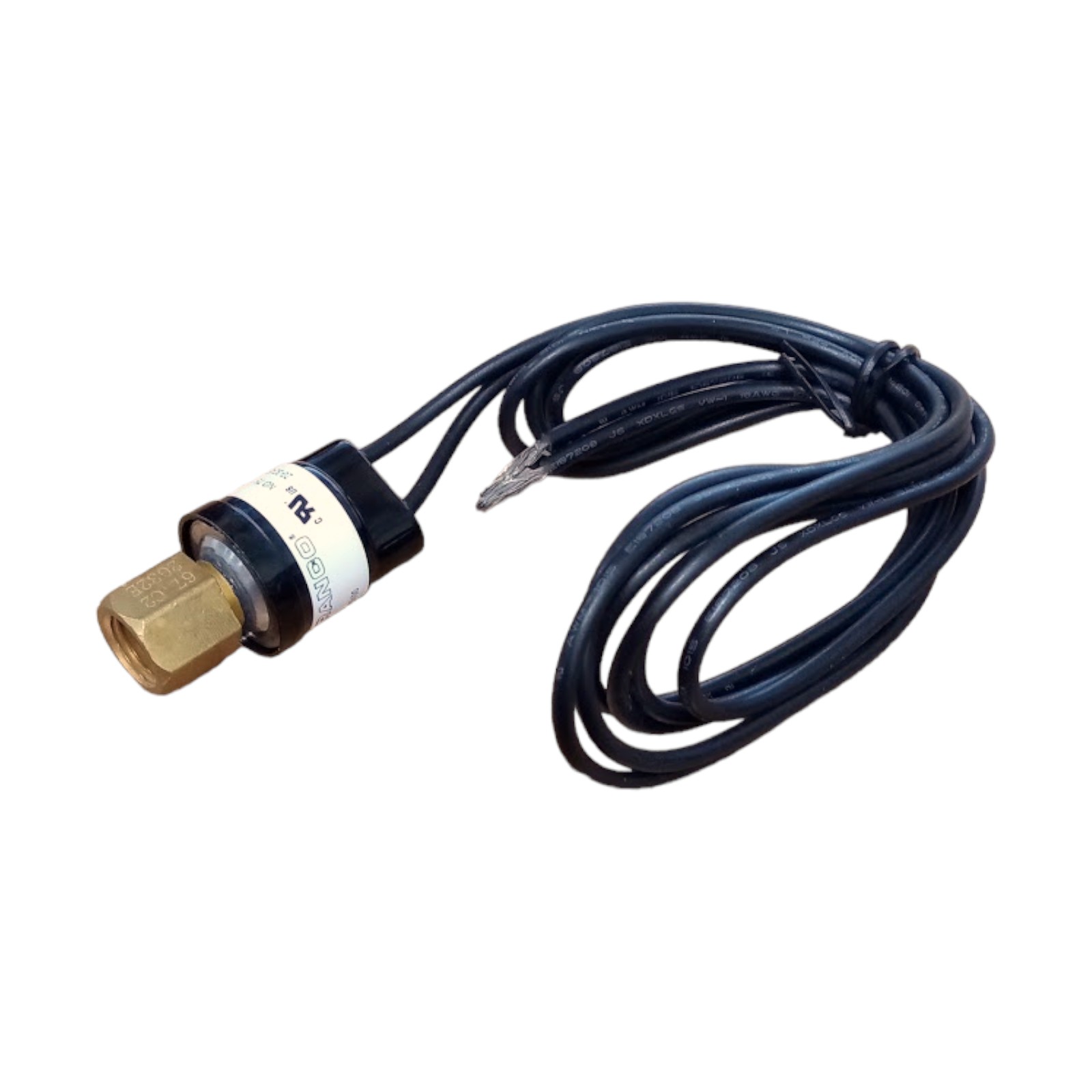

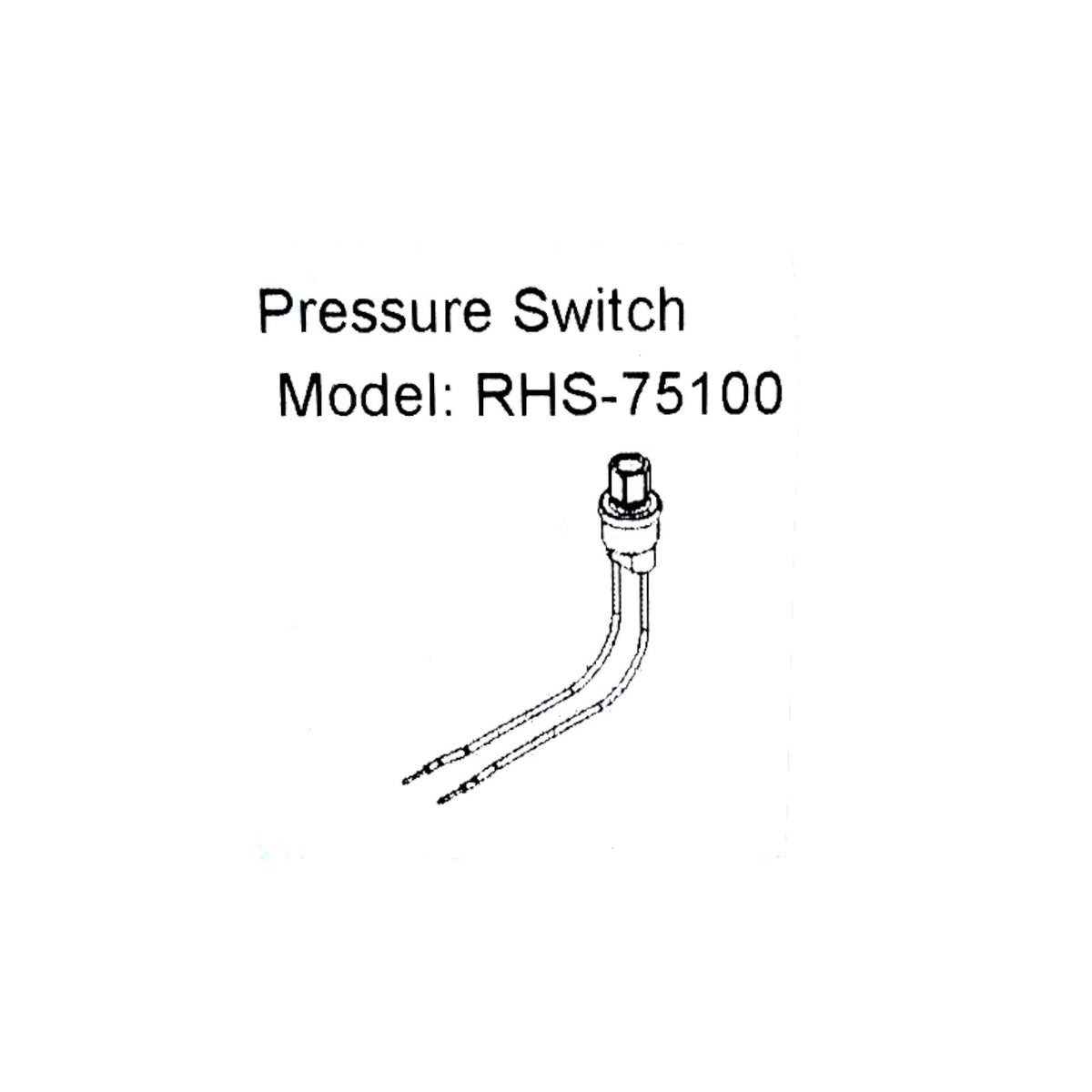

Ranco part number RHS-75100

Low Pressure Switch - 75 PSI Open 100 PSI Close

Ranco pressure switches are designed to sense and act upon reaching a pre-set pressure threshold. The switches are durable, reliable and compact, and can be equipped with a nearly limitless variety of pressure fittings and electrical connections.

Features and Benefits

• Hermetically (epoxy) sealed sensor design ensures protection from environmental conditions


• Excellent set point stability and cycle life due to a high quality, mobile switch arm


• Robust welded and potted wire leads facilitate reliable operation


• Premium sensor materials and design, including high-grade stainless steel disc for reliable lifetime performance

Specifications

• Application: Low Pressure


• Open (Cut-Out): 75 PSI


• Close (Cut-In): 100 PSI


• Reset: Automatic


• Pressure Range: 0-50 bar, 0-735 PSIG


• Burst Pressure: 345 bar, 5000 PSIG


• Terminal Type: Normally Open


• Fluid Temperature: -65 to 275 deg F (-55 to 135 C)


• Ambient Temperature: -40 to 185 deg F (-30 to 70 C)


• Electrical Rating: 5.8 FLA/34.8 LRA at 120 VAC, 2.9 FLA/17.4 LRA at 240V, 375 VA at 120/227 VAC, 125 VA at 24 VAC

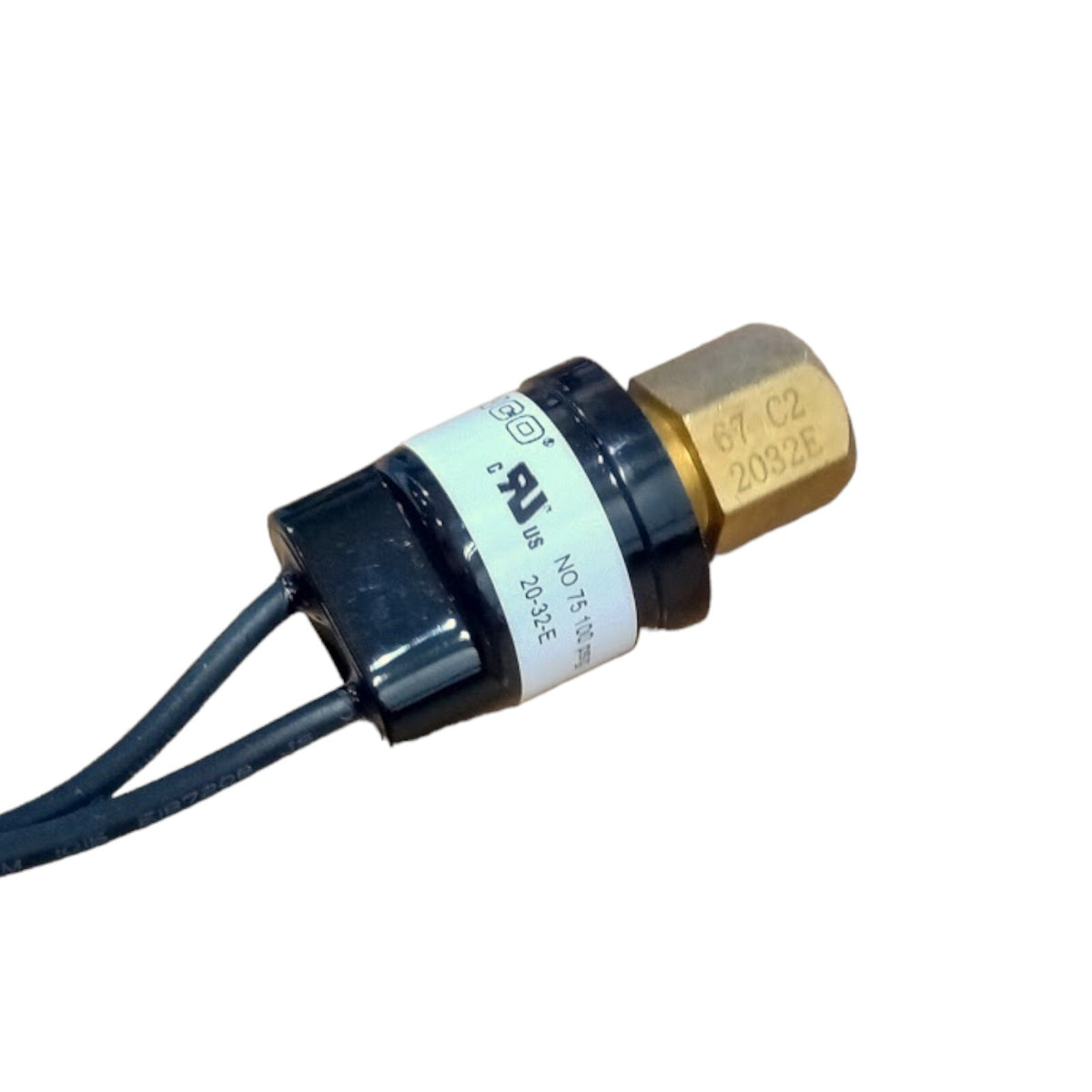

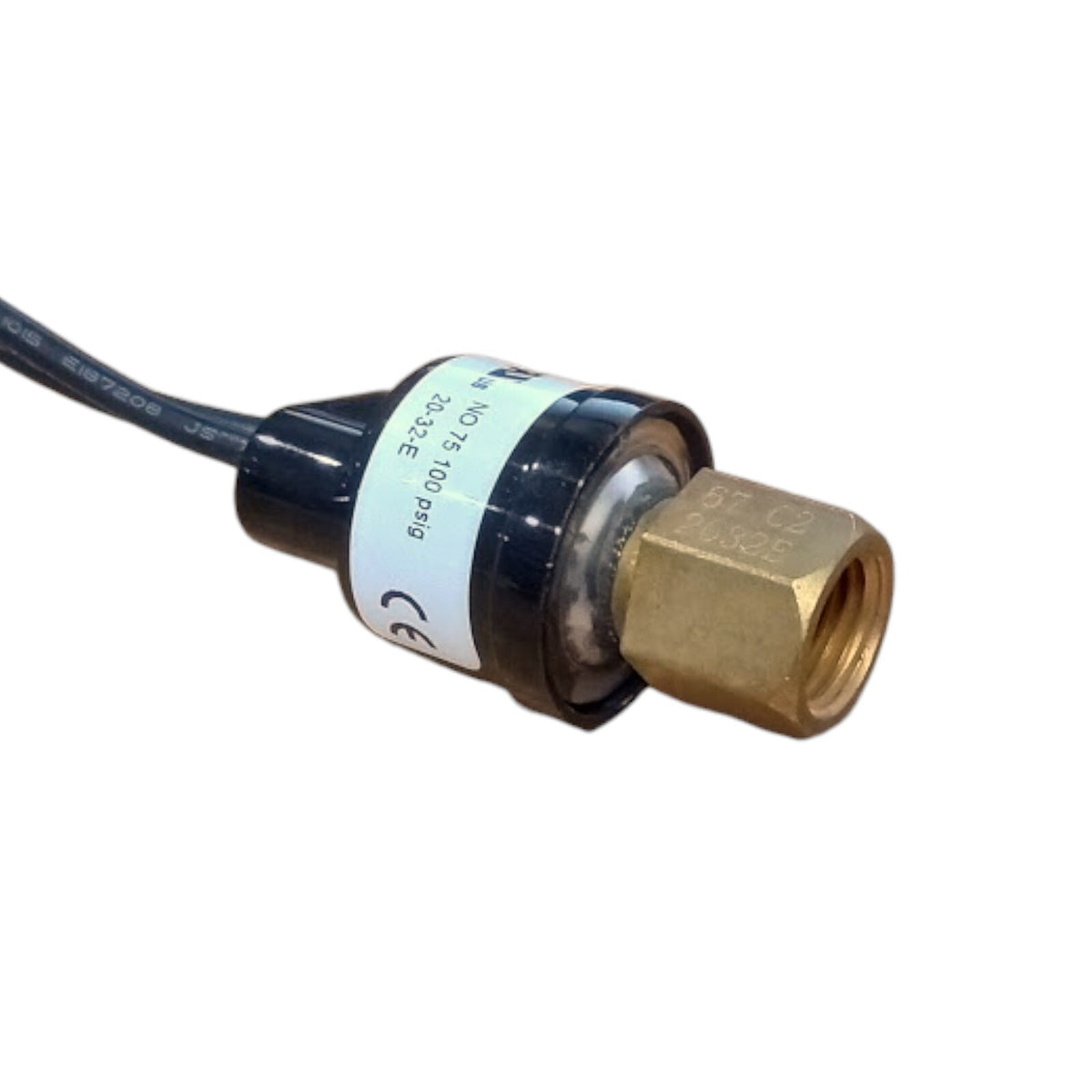

• Pressure Fittings: 1/4 in. SAE FF

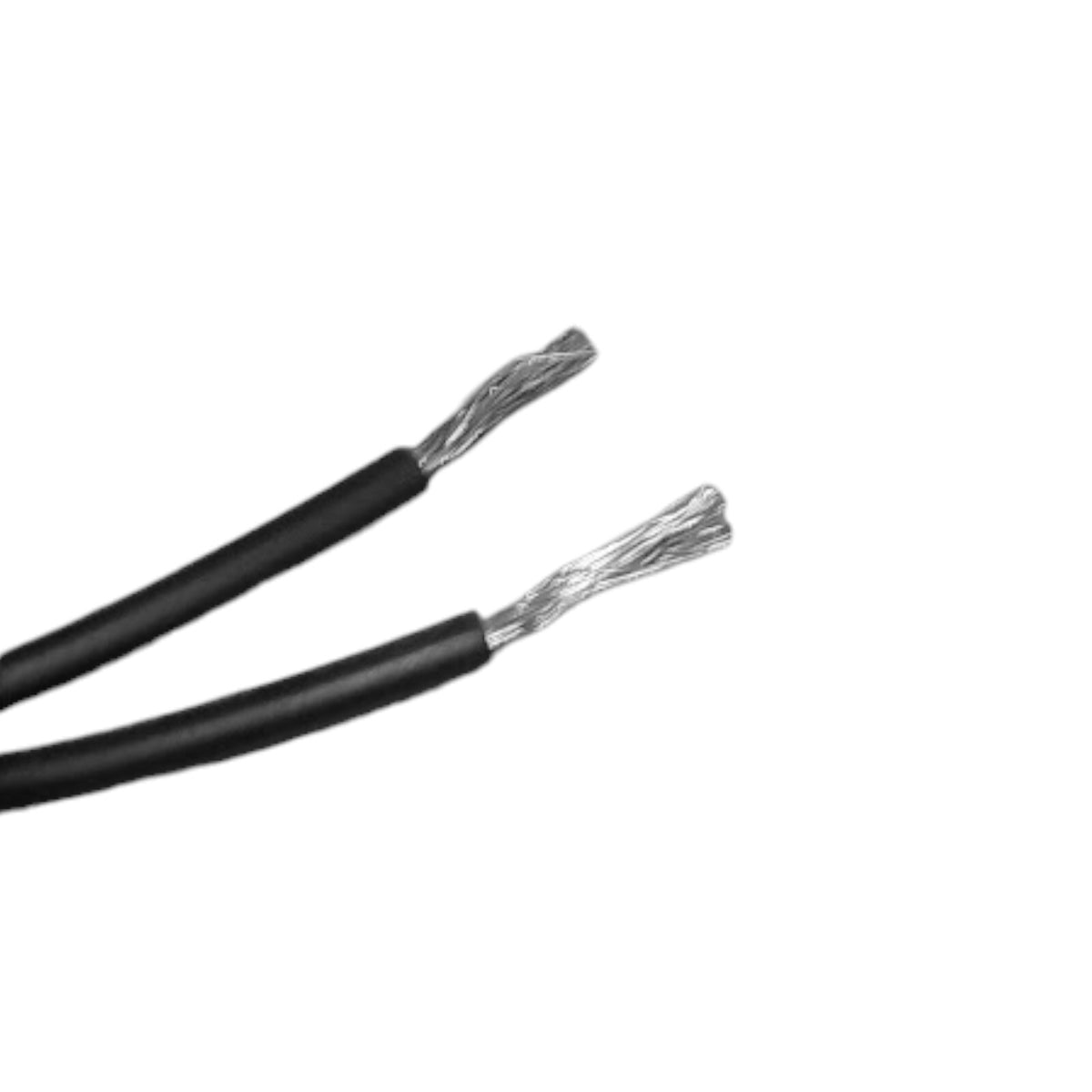

• Electrical Connection: IP65 rated 1m wire lead cables


• Lifetime: 100,000 Cycles

Applications

• Pressure limiting


• System monitoring and alarm


• Fan cycling


• Specialty controls

Replacement for Johnson P100AP-358C, Mars 43301

and Supco SLP75100
