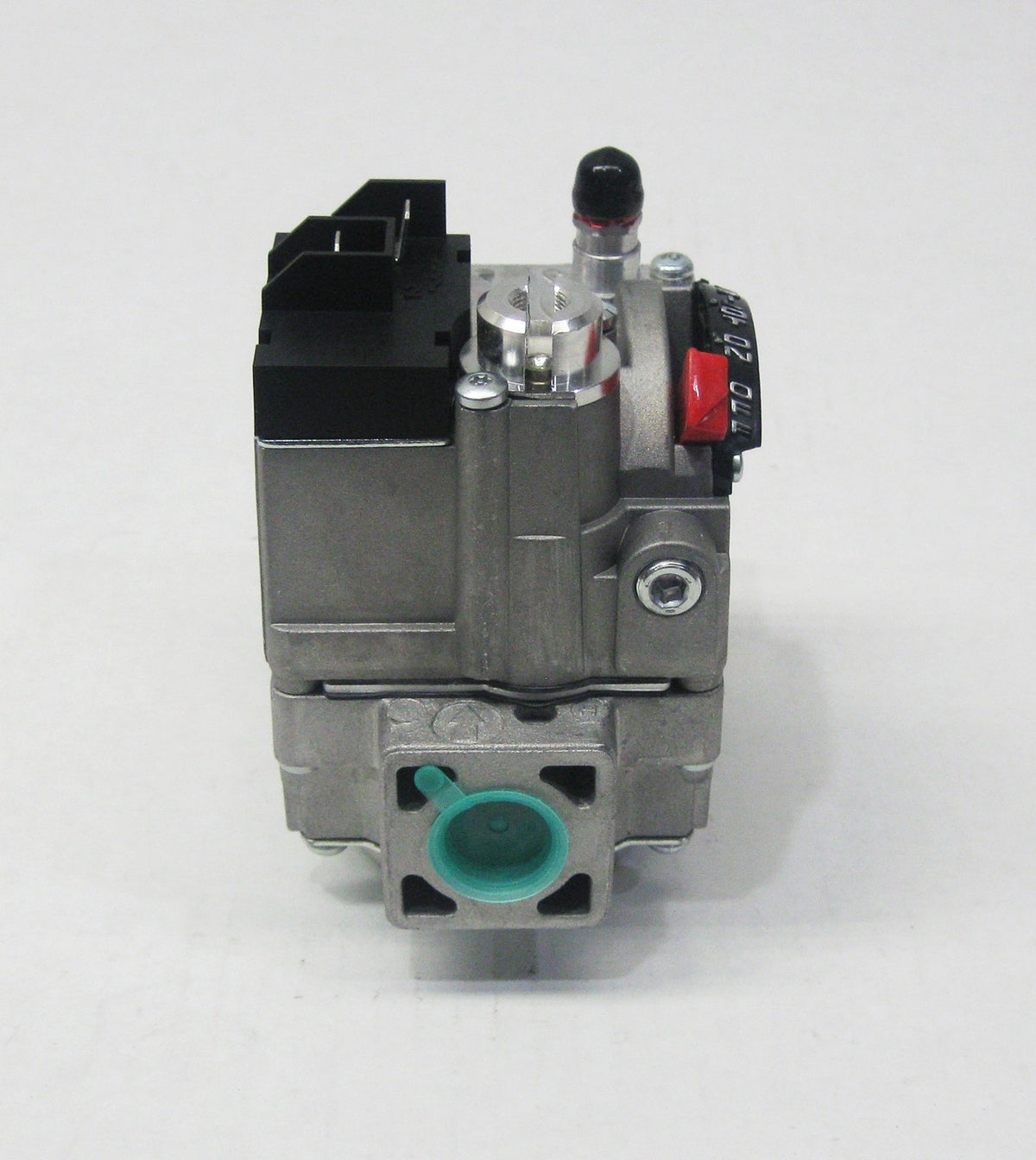

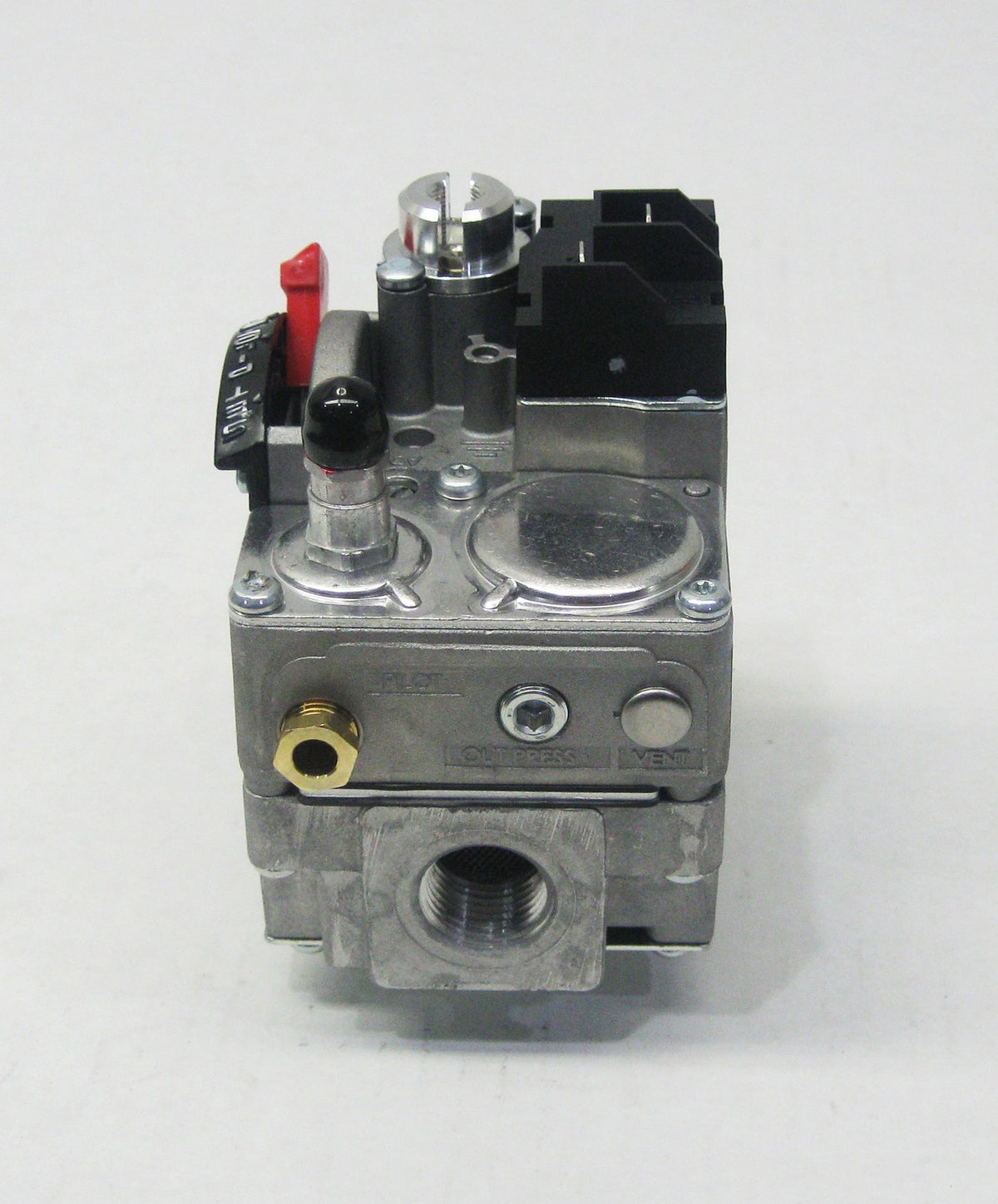

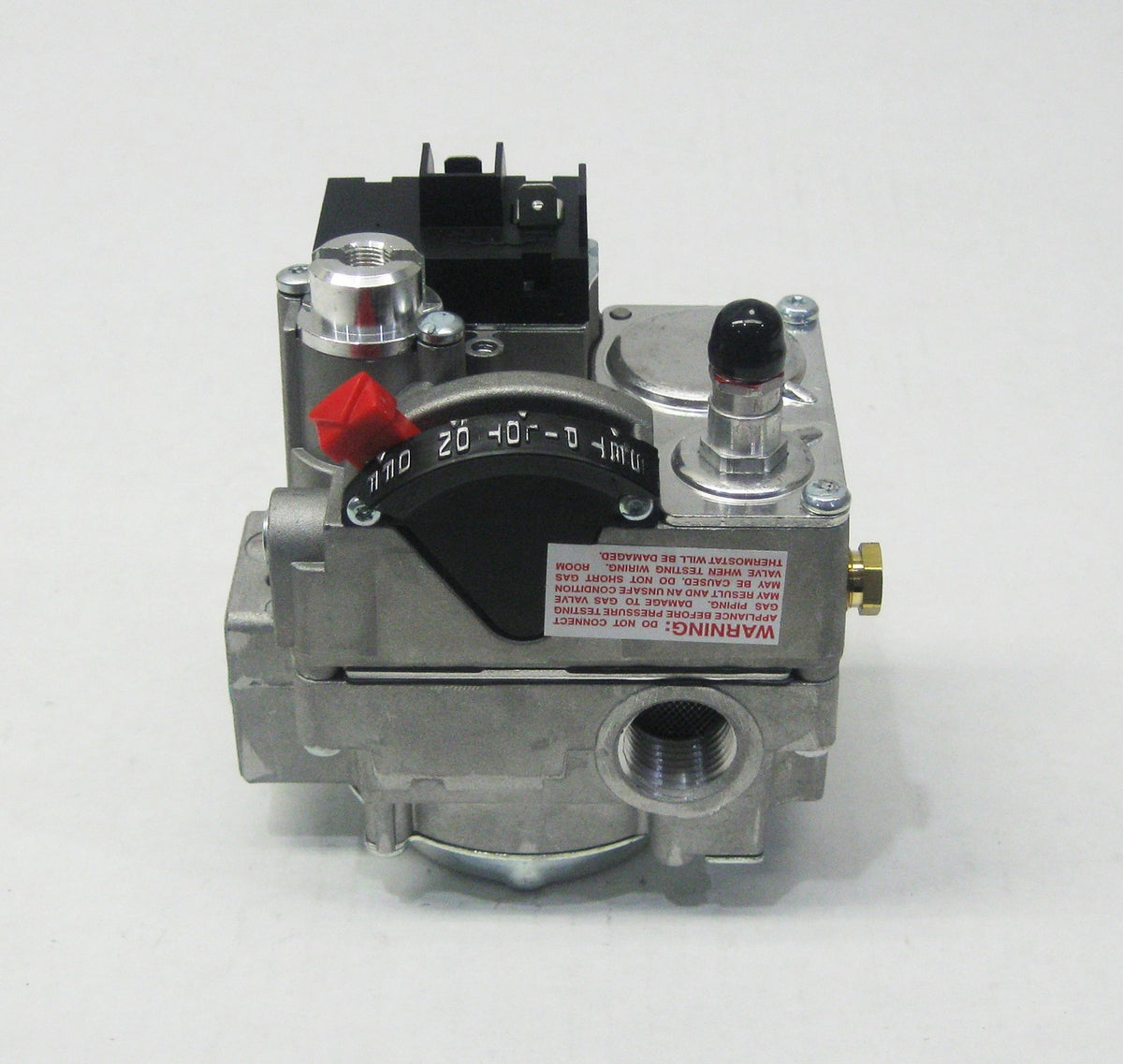

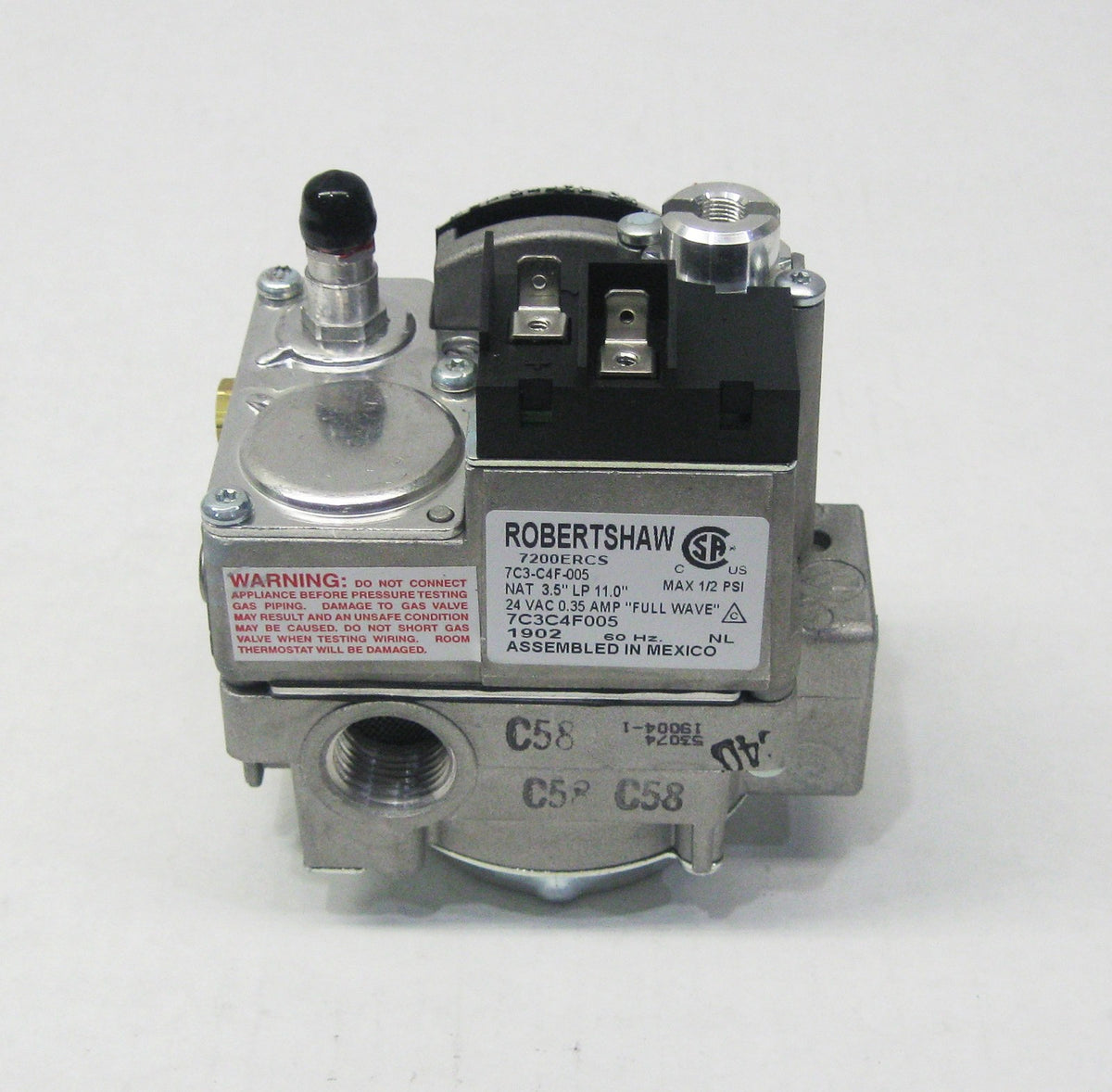

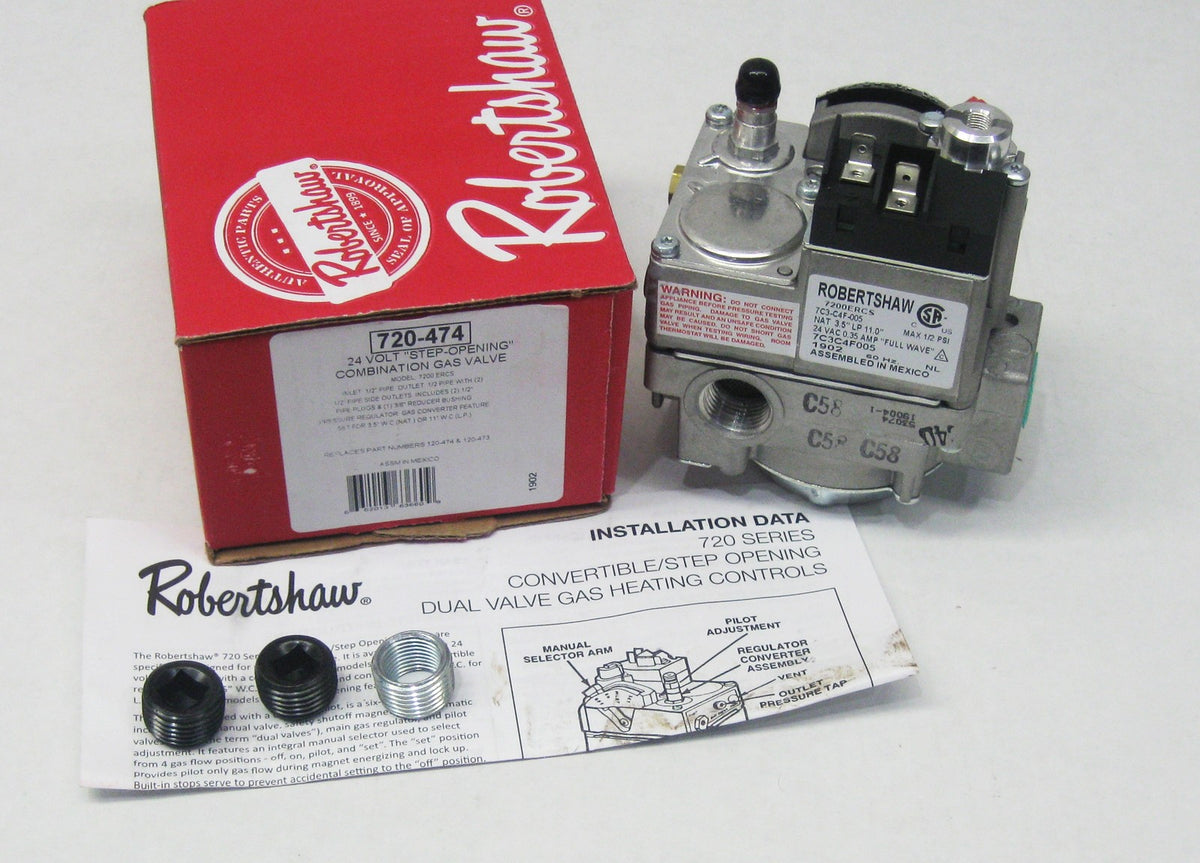

Robertshaw 24 Volt Step-Opening Combination Gas Valve part number 720-474.

The Robertshaw 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Factory set at 3.5" WC for natural gas, 11" WC for lp gas. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16 swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

Specifications:

• Series Application 24V Dual


• Factory Part Number 7200ERCS


• Pressure Regulation 3.5" WC Natural or 11.0" LP Convertible Gas


• Capacity 150,000 BTU


• Reducer Bushing (NPT) (1) 1/2" x 3/8"


• Inlet Size 1/2"


• Electrical Rating 24V AC @ 0.5 Amps, 50/60 Hz


• Pilot 1/4" tubing


• Comments Step-opening for mobile home


• Outlet Size 1/2"


• Side Outlets 1/2" FPT with plugs


• Maximum Inlet Pressure 14" WC (1/2 PSI)

Features and Benefits:

• Gas cock dial marking Off - Pilot - On


• Pilot outlet 1/4 tubing


• Ambient temperature of -40F to 175F


• Combination screw/spade terminal type


• Maximum inlet pressure 14 WC (0.5 PSI)


• Standard NEMA terminals


• Inlet filtered screen


• Various gas types: natural, manufactured, mixed, LP, and


• LP/air mixtures


• Multiple actuators available


• RoHS compliant

Replacement for numbers: 110ERCHCSO-2C ROBERTSHAW, 110ERCHCSO-2D ROBERTSHAW, 120-474 UNI-LINE, 120-474 UNI-LINE, 36C12-31D WHITE-RODGERS, 36C67-100 WHITE-RODGERS, 36C67-175 WHITE-RODGERS, 36C67-176 WHITE-RODGERS, 36C67-177 WHITE-RODGERS, 36C67-178 WHITE-RODGERS, 36C67-183 WHITE-RODGERS, 36C67-188 WHITE-RODGERS, 36C67-189 WHITE-RODGERS, 6244900 UNKNOWN, 6244912 UNKNOWN, 6245830 NORDYNE, 624583B NORDYNE, 63660 UNI-LINE, 7200ERC5-S1 ROBERTSHAW, 7200ERCS-1 ROBERTSHAW, 7200ERCS-2 ROBERTSHAW, 720-C474 UNI-LINE, 7656A326 UNKNOWN, 7956-336 COLEMAN / EVCON, 7956-336P YORK INTERNATIONAL, 7A3C4F005 UNKNOWN, 7A3-C4F-005 ROBERTSHAW, 7A3-C4F-024 ROBERTSHAW, 7A3C4F025 EVCON AIR PRO, 7A3-C4F-025 ROBERTSHAW, 7A3F8F025 UNKNOWN, 7C3C4F005 NORDYNE, 7C3-C4F-005 ROBERTSHAW, 7C3-C4F-023 ROBERTSHAW, 7C3-C4F-024 ROBERTSHAW, 7C7-C4F-005 ROBERTSHAW, 7C7-F8F-055 MILLER HEATING, 7C7G8F055 NORDYNE, 7C7G8F545 UNKNOWN, L36-408 JOHNSTONE SUPPLY, L36-408 JOHNSTONE SUPPLY, L37-714 JOHNSTONE SUPPLY, L37-714 JOHNSTONE SUPPLY, V800C1466 HONEYWELL, V800C1540 HONEYWELL, VR800C1489 HONEYWELL, VR8200C1041 HONEYWELL, VR8200C1082 HONEYWELL, VR8200C1108 HONEYWELL, VR8200P1039 HONEYWELL, VR8200P1047 HONEYWELL, VR8300C2120 HONEYWELL, VR8300C4035 HONEYWELL, VR8300C4100 HONEYWELL, VR8300C4506 HONEYWELL, 7c7-h8f-545, 7200ercs-1, S1-7956-336P
