Solderweld SW-HVAK15--Brazing Pack

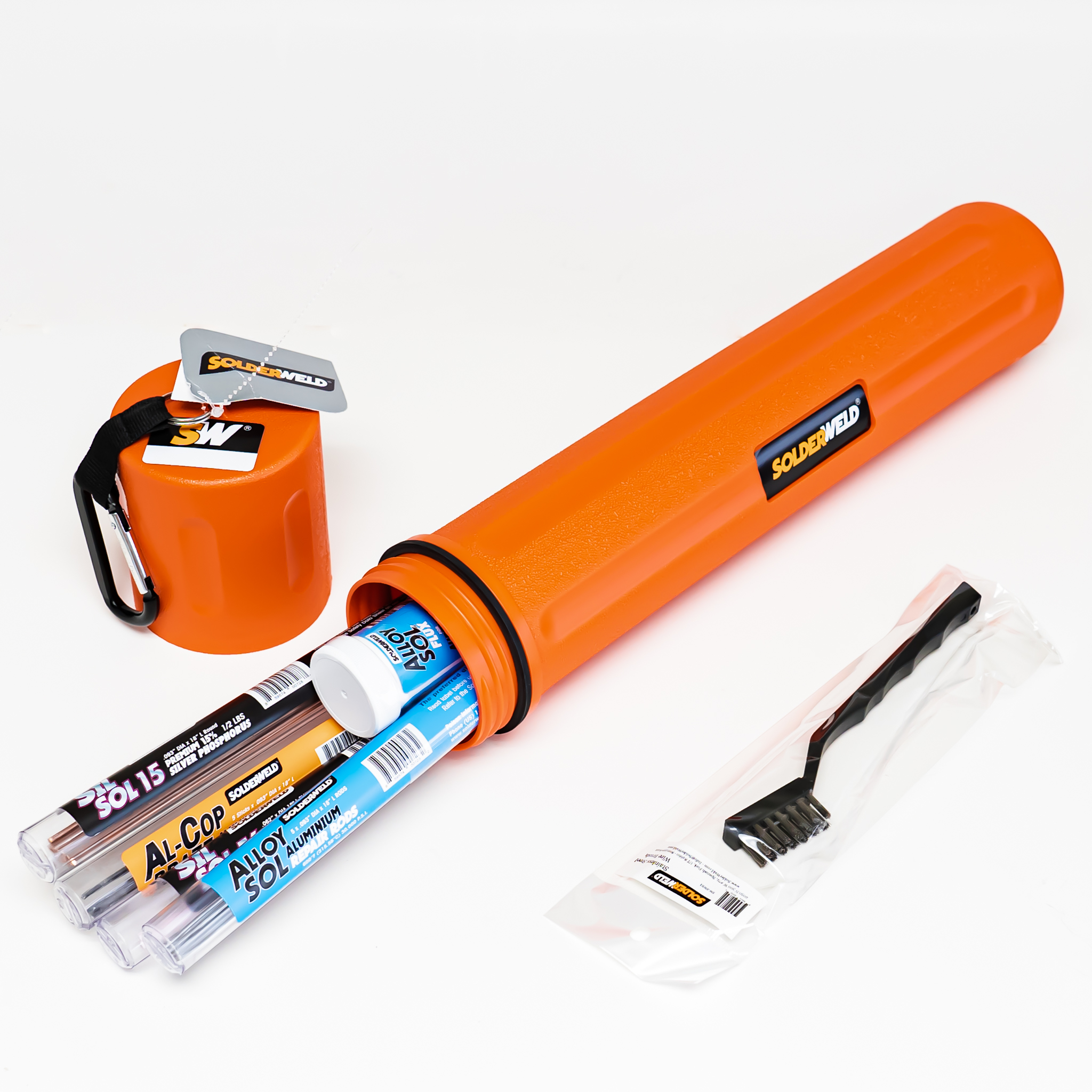

The kit Includes:

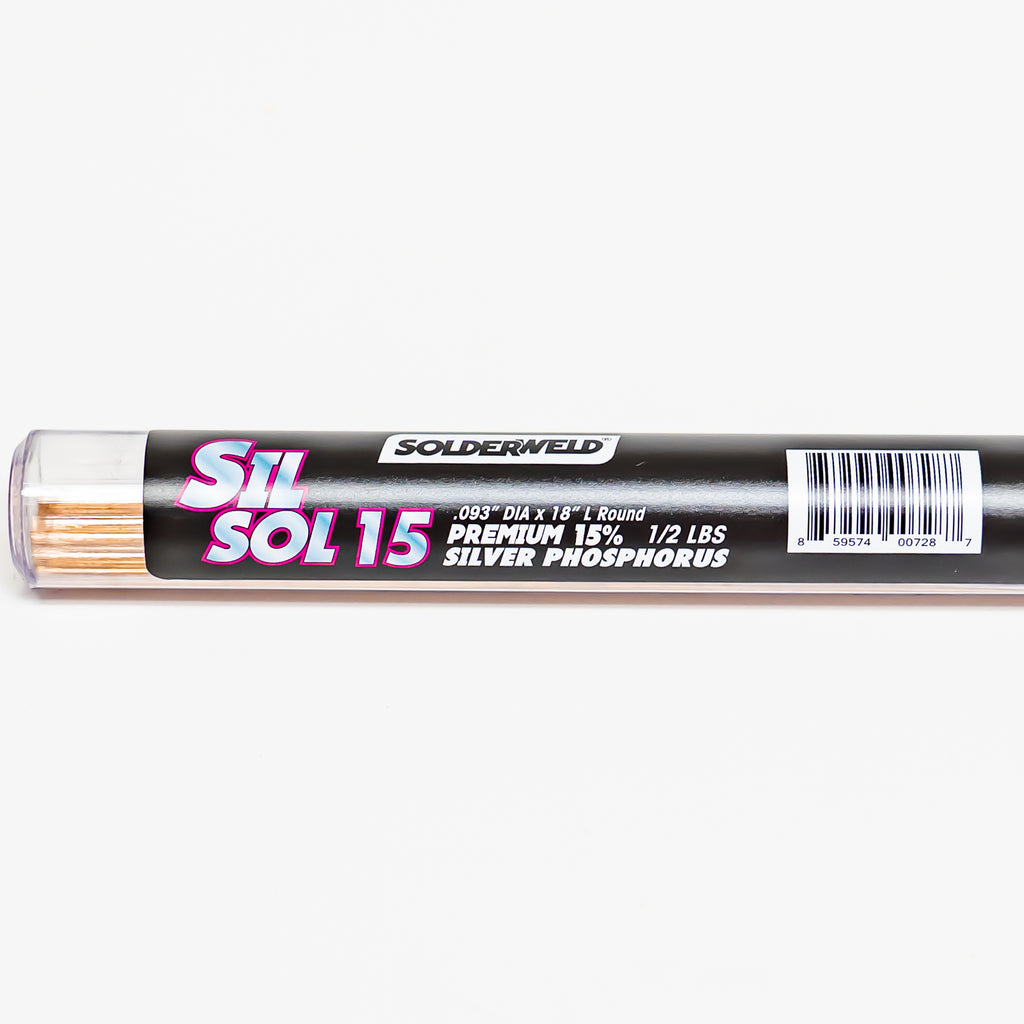

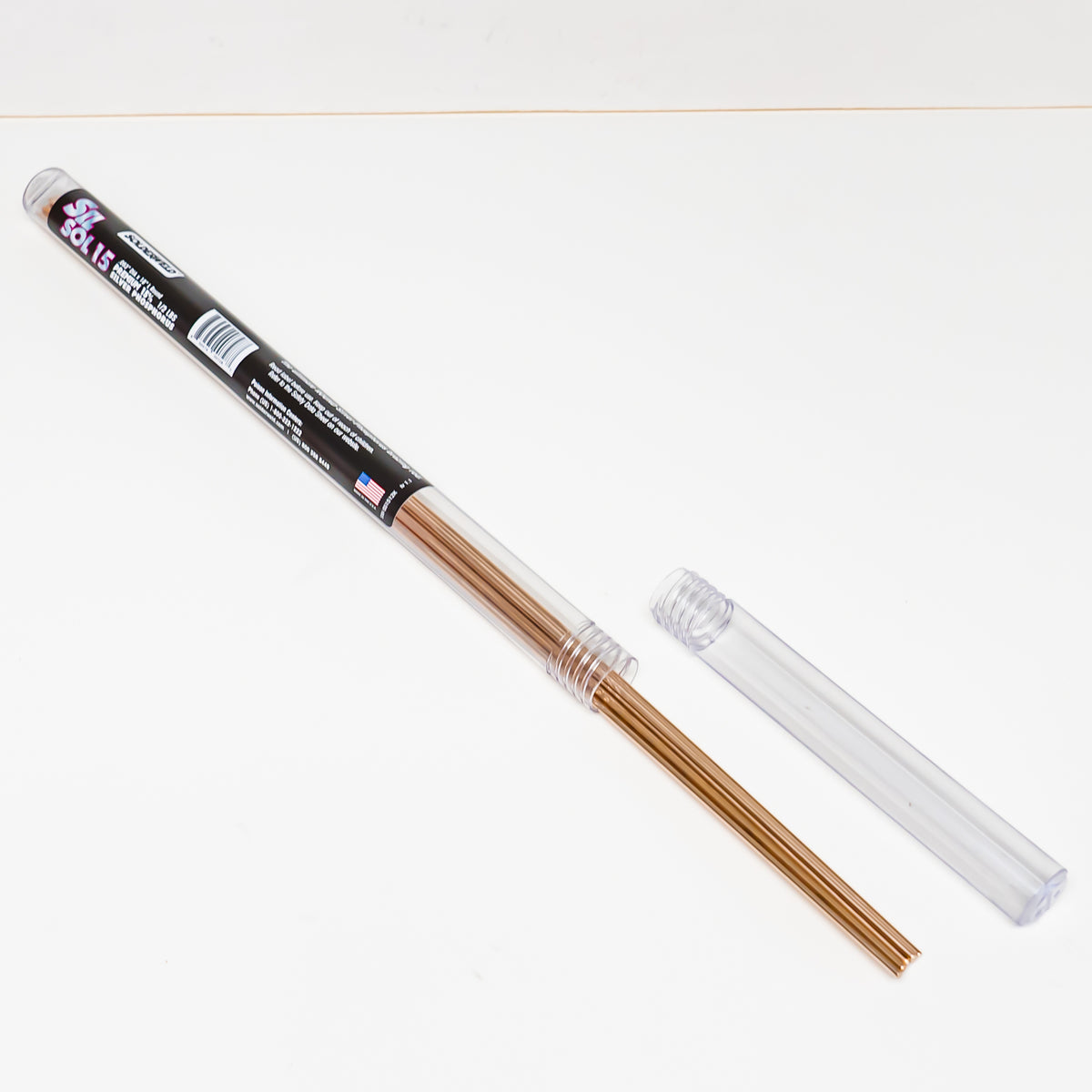

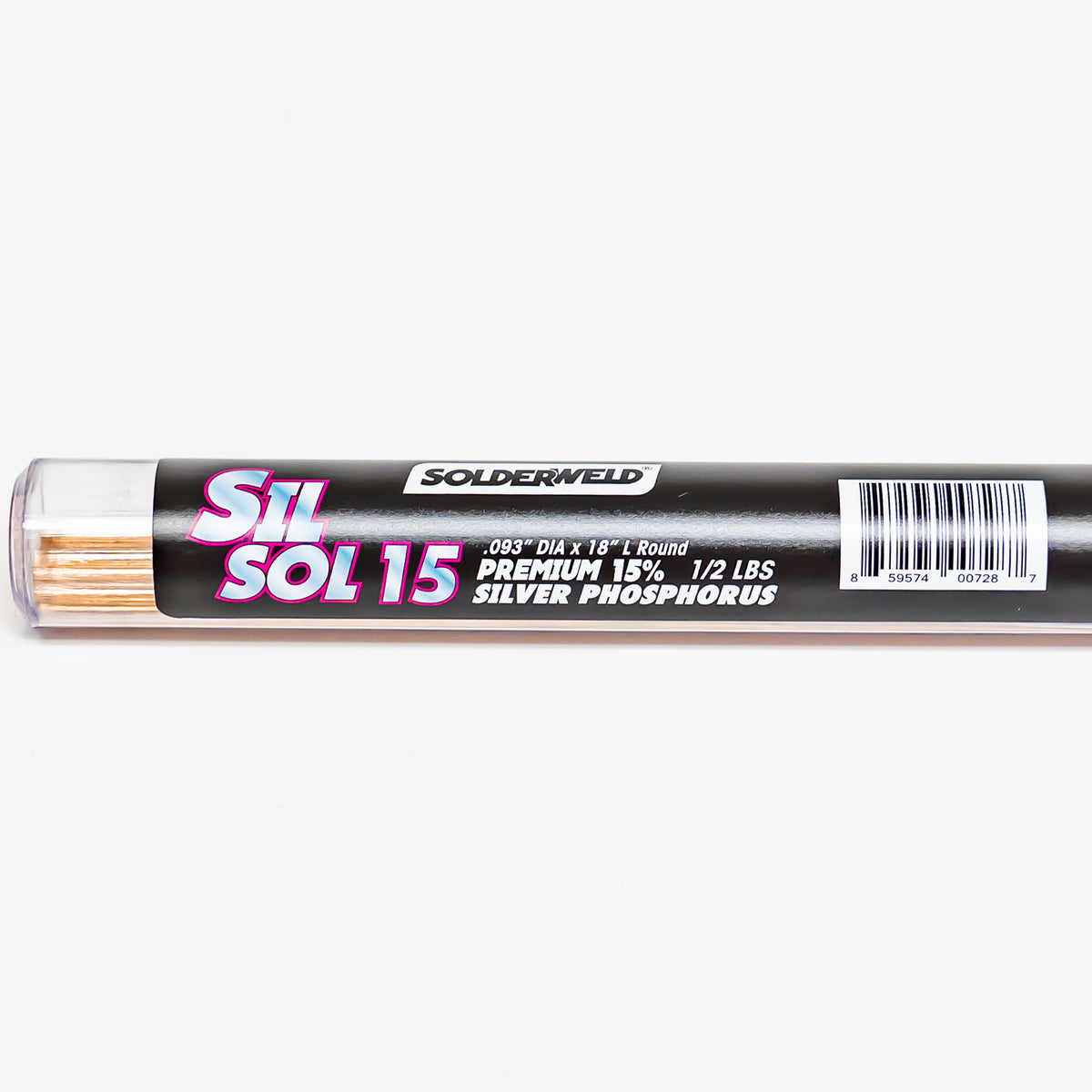

1/2 Pounds Round Sticks Sil Sol 15% Silver

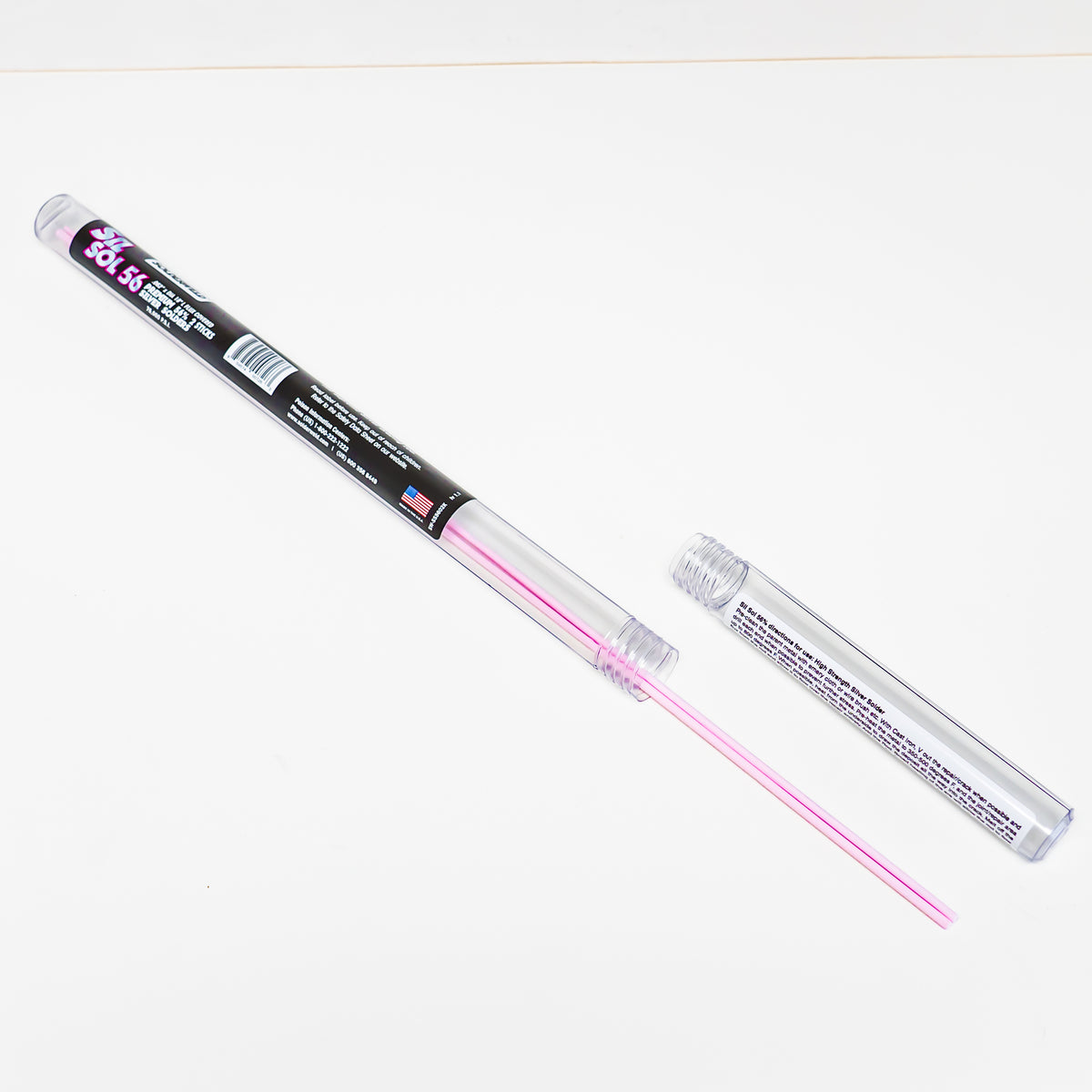

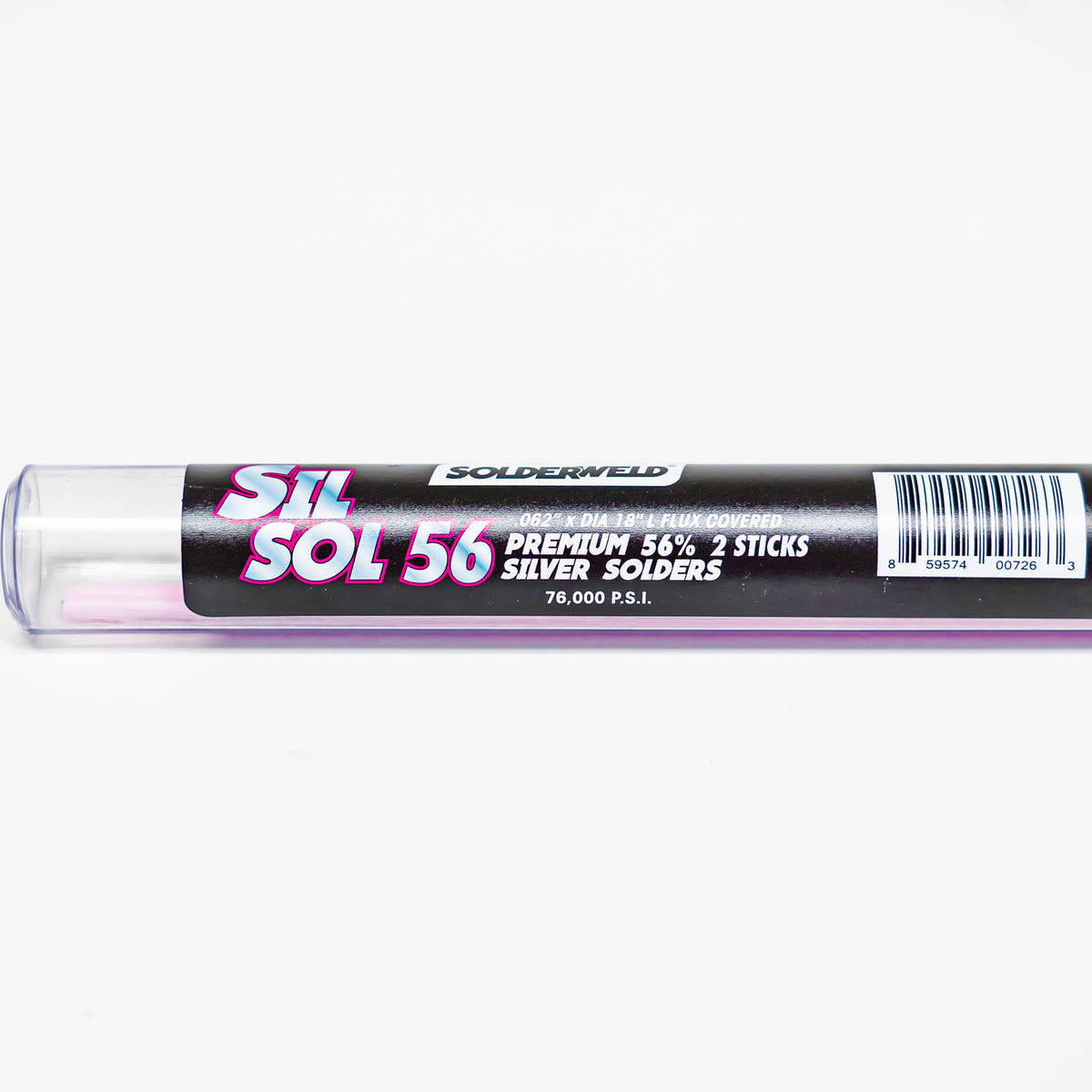

2 Sticks of Sil Sol 56% Flux Coated Brazing Rods.

5 Sticks Al-Cop Brazing Rods

5 Sticks Alloy Sol Aluminum Repair Solder Rods

Alloy Sol Flux

Stainless Steel Wire Brush

Watertight Canister

Features/Benefits

• Al-Cop brazing rods provide a unique Aluminum to Copper brazing rod with a flux core that makes brazing Aluminum to Copper line sets quick and easy. Strong bonds that will endure the life of the fittings, a complete fix that will withstand the test of ti


• Alloy Sol aluminum repair and joining rods flow at half the melting temp of Aluminum and provides a repair at 30,000 PSI welding pressure. The Flux decontaminates the aluminum repair area so there is no need for pre-cleaning and it even works through pain


• Alloy Sol Flux is a powdered flux used for brazing aluminum and aluminum based alloys. The flux wets the joining surfaces thoroughly and prevents the entrapment of aluminum oxide inclusions in the joints. It can be used as supplied or mixed with water to


• Sil Sol Premium 15% Sil-Phos was developed primarily for use on copper, but its use has extended to other nonferrous copper based alloys. It is used extensively on refrigeration units, air conditioning apparatus, electrical conductors, copper and brass fi


• Sil-Sol 56% silver solder flux is the best siver solder on the market. The Refrigeration Industry loves it for dissimilar metals, copper, brass, and stainless steel. The bonds are rated at 75,000 PSI and it flows so well that not much of the rod is needed


• Stainless Steel Wire Brush


• Watertight Canister

Specifications:

Al-Cop Braze:

• Solidus: 826F (441C)


• Liquidus: 905F (471C)


• Recommended Brazing Temp.: 950-1000F (510-537C)

Alloy-Sol Rod:

• Solidus: 580F (305C)


• Liquidus: 1080F (582C)


• Recommended Brazing Temp.: 600-700F (315-371C)

Alloy-Sol Flux

• Active Temperature Range: 650-1280F (345-690C)

Sil Sol 15:

• Solidus: 1190F (643C)


• Liquidus: 1495F (812C)


• Recommended Brazing Temp.: 1545-1595F (840-868C)


• Sil Sol 56:


• Solidus: 500F (930C)


• Liquidus: 1200F (660C)


• Recommended Brazing Temp.: Approx. 1200F (660C)


• Packaging: 19 x 3.5" diaWeight:1.74 lbs.
