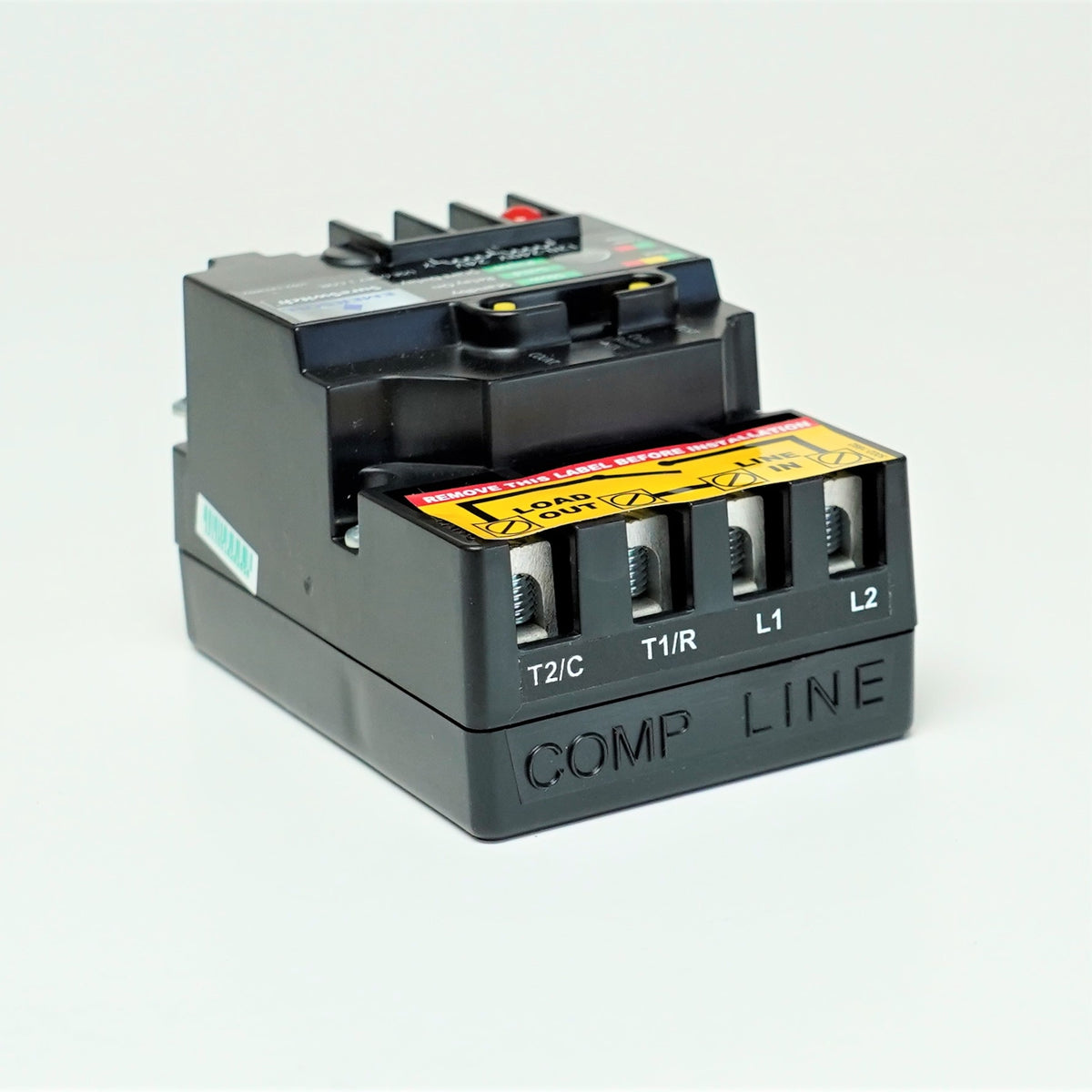

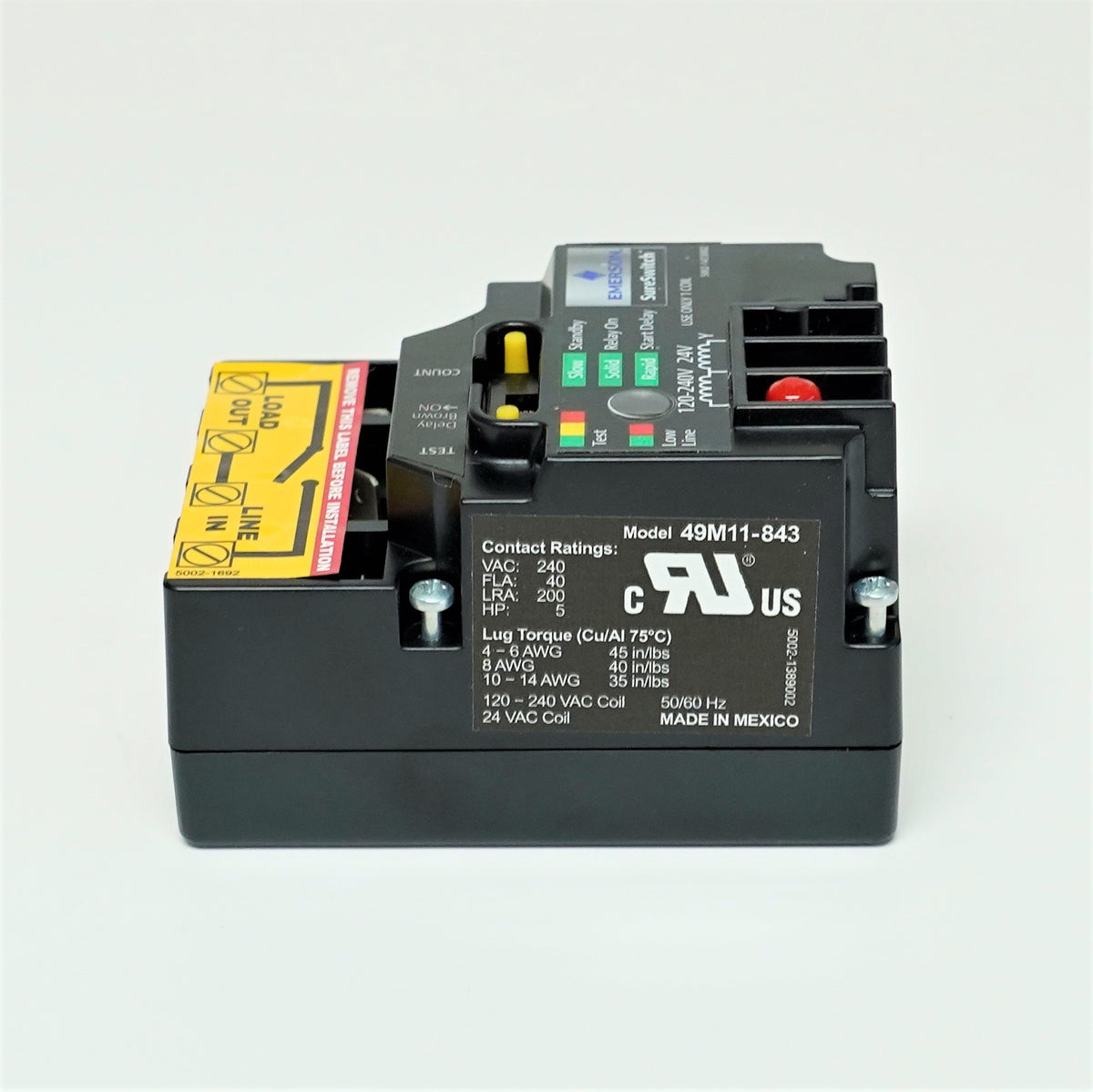

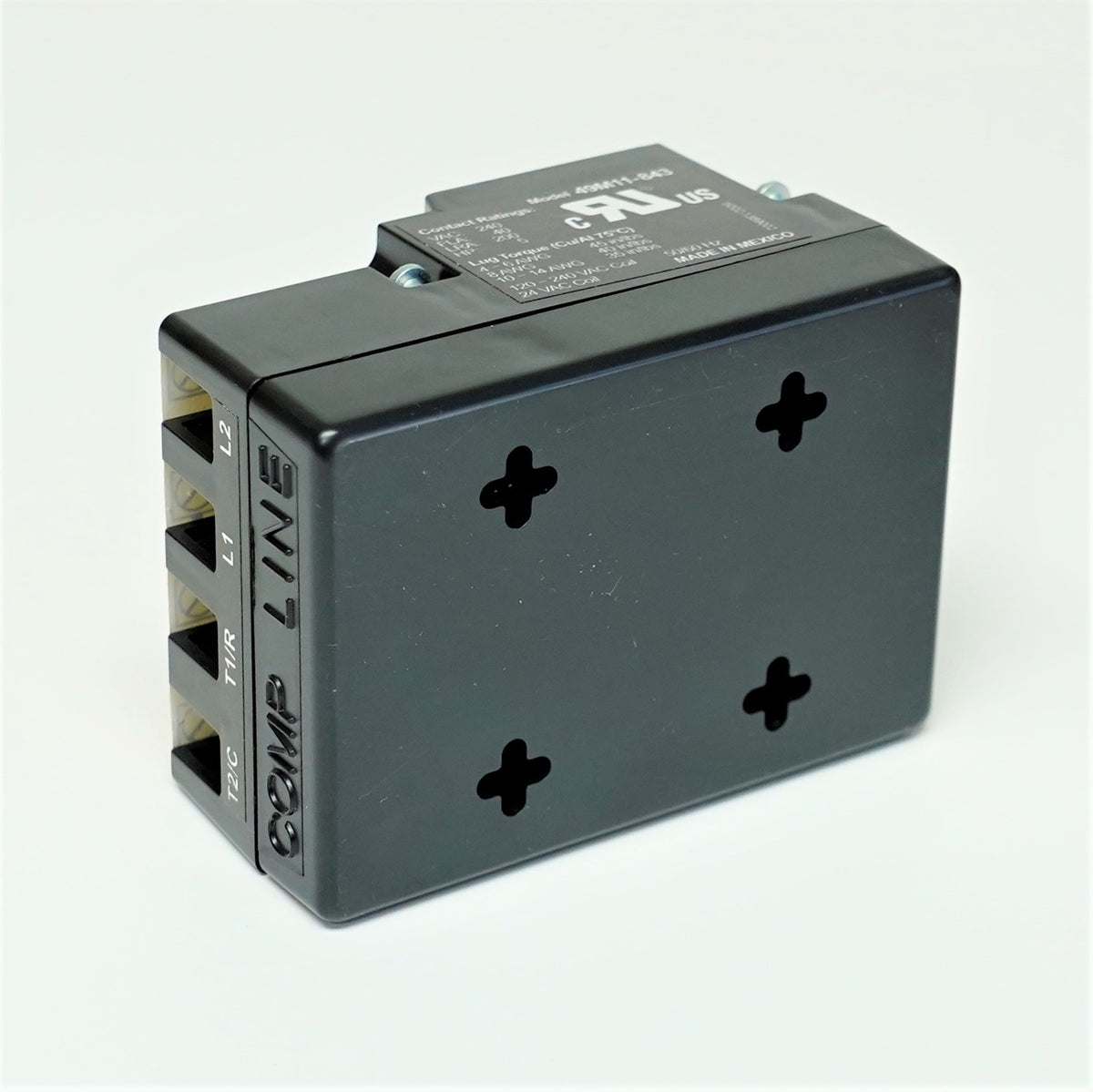

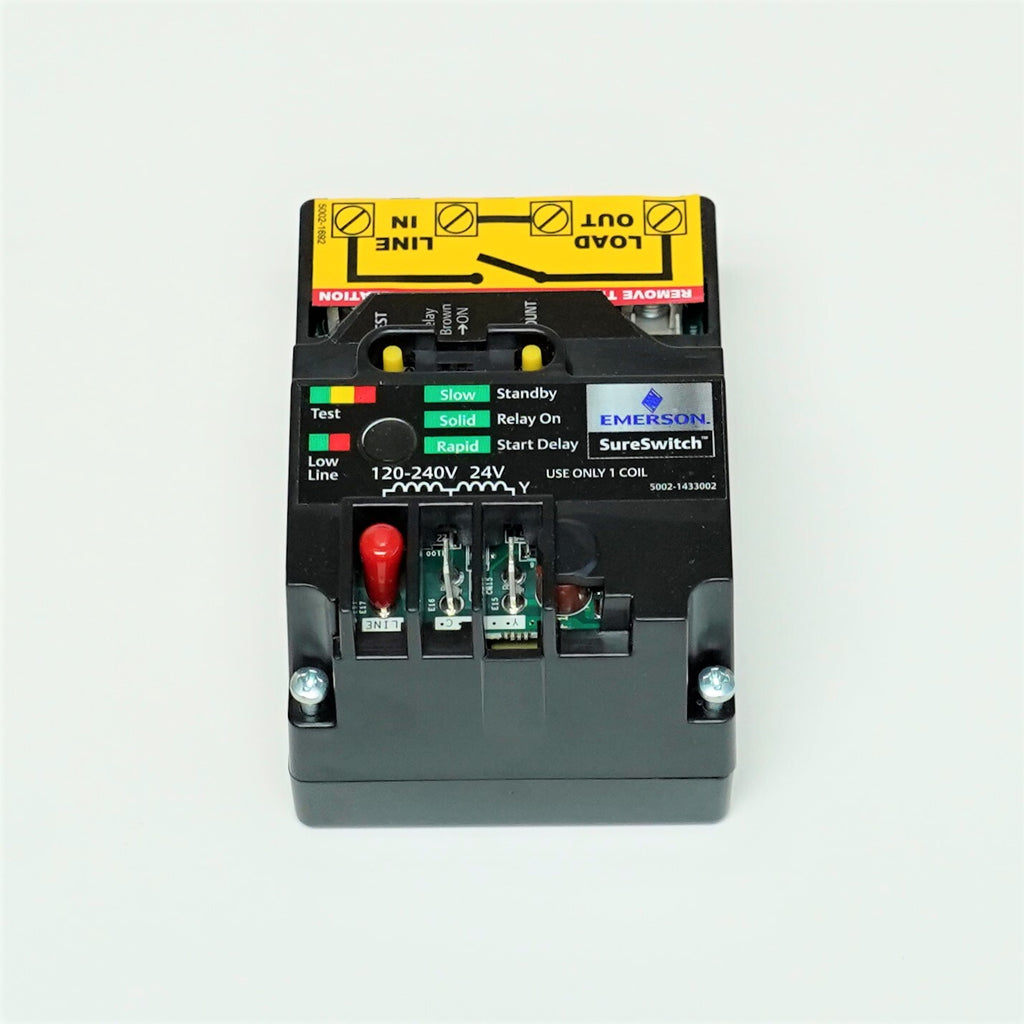

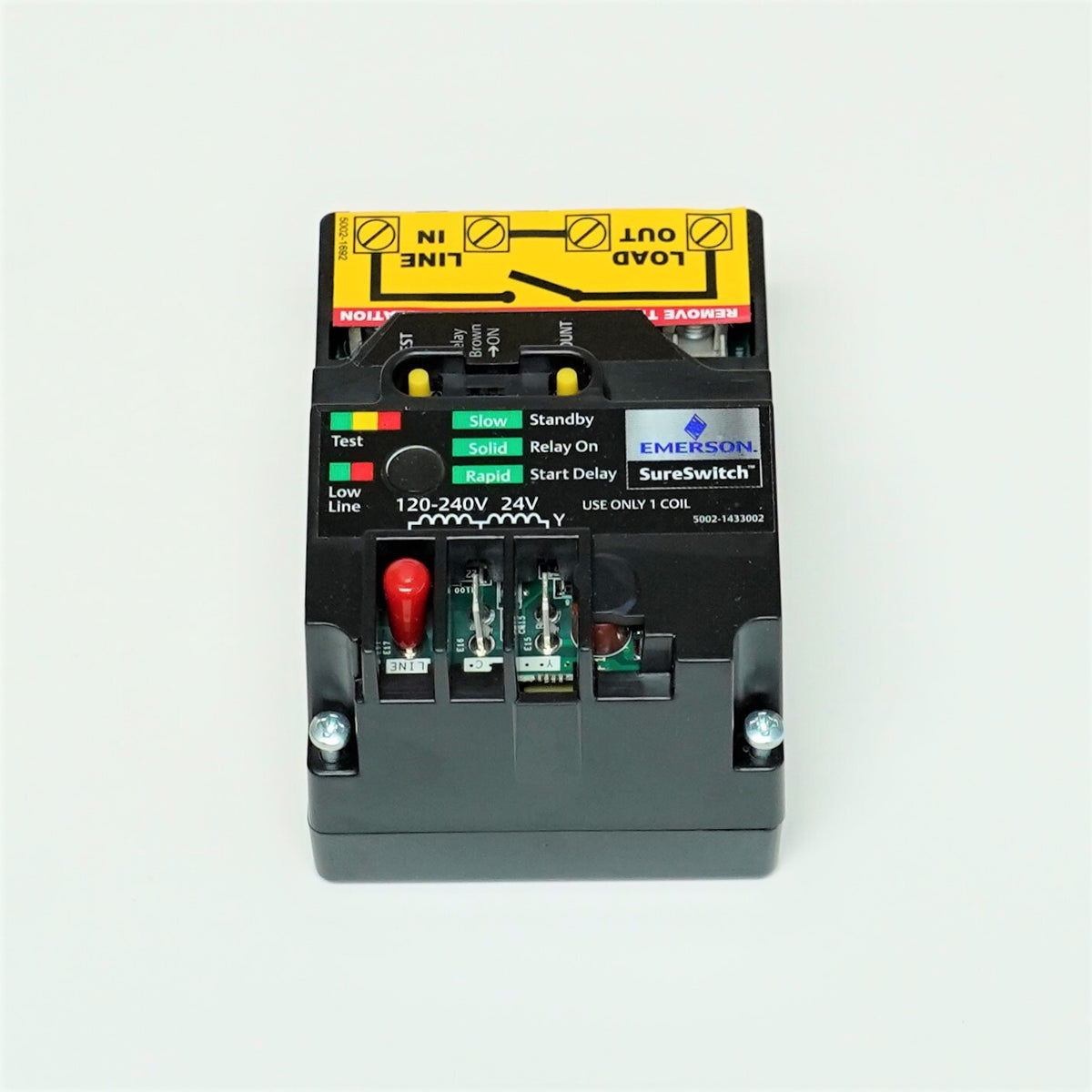

White-Rodgers 49M11-843 SureSwitch Multi-Volt Contactor 40 Amps 1 & 2 Pole
In demand. 32 people bought this in the last 24 hours.
White-Rodgers 49M11-843 SureSwitch Multi-Volt Contactor 40 Amps 1 & 2 Pole
people have this in their carts right now.
Description
White-Rodgers 49M11-843 SureSwitch Multi-Volt Contactor 40 Amps 1 & 2 Pole
Emerson White-Rodgers part number 49M11-843
SureSwitch Multi-Volt Universal Contactor
Universal electronic upgrade for definite purpose contactors for air conditioning and refrigeration, with 5x contactor life and completely sealed to keep out insects and debris
SureSwitch is an electronically controlled relay that can be used to replace single and two pole contactors commonly used in air conditioners, heat pumps and other applications. A patented switching algorithm reduces arcing between contact, which nearly eliminates pitting and welding for a longer life. The switching mechanism is sealed to prevent intrusion from insects and other debris.
Replacement for 49P11-843
FEATURES
- Multi-volt coil replaces all common coil voltages
- 5x traditional contactor life
- Totally sealed switch keeps out ants, pests and debris
- Microprocessor control inhibits arcing that cause welding and pitting
- Line voltage brownout protection and short cycle timer provide compressor protection
- Heavy-duty lug connectors
- Zero chatter latching relay
- Tri-color LED displays
- 5-year limited warranty
- Four-hole mounting matches mechanical contactors
- Compressor test and cycle count by pushbutton
SPECIFICATIONS
- Line Voltage Input: 120/208/240 VAC, 50/60 Hz
- Y-C Control (Coil) Voltage: 24 VAC, 50/60 Hz
- Line-C Control (Coil) Voltage: 120/208/240VAC, 50/60 Hz
- Full Load Amperes: 40A
- Locked Rotor Amperes: 200A
- 1 or 1.5 Poles
- Anti-Short-Cycle Delay: 0s or 180s (selectable) at 60 Hz, 0s or 216s (selectable) at 50 Hz
- Compressor Test: 5s at 60 Hz, 6s at 50 Hz
- Operating Temperature Range: -40 to 158 degrees F (-40 to 70 C)
- Coil Terminals: 1/4Ã in male QCÃs accepting #12-24 AWG wire
- Dimensions: 2.75 in W X 2.38 in H X 3.88 in L
- UL Recognized to: UL60730-1
Product Details
| Brand | Emerson |
|---|---|
| Color | Black |
| Manufacturer | Emerson |
| Product Type | Contactor |
| Mpn | 49M11-843 |
- Emerson White-Rodgers part number 49M11-843
- SureSwitch Multi-Volt Universal Contactor (49P11-843)
- Universal electronic upgrade for single and two pole definite purpose contactors
- 120/208/240 VAC or 24 VAC at 50/60 Hz
- 40 FLA, 200 LRA, 1 or 2 Poles
