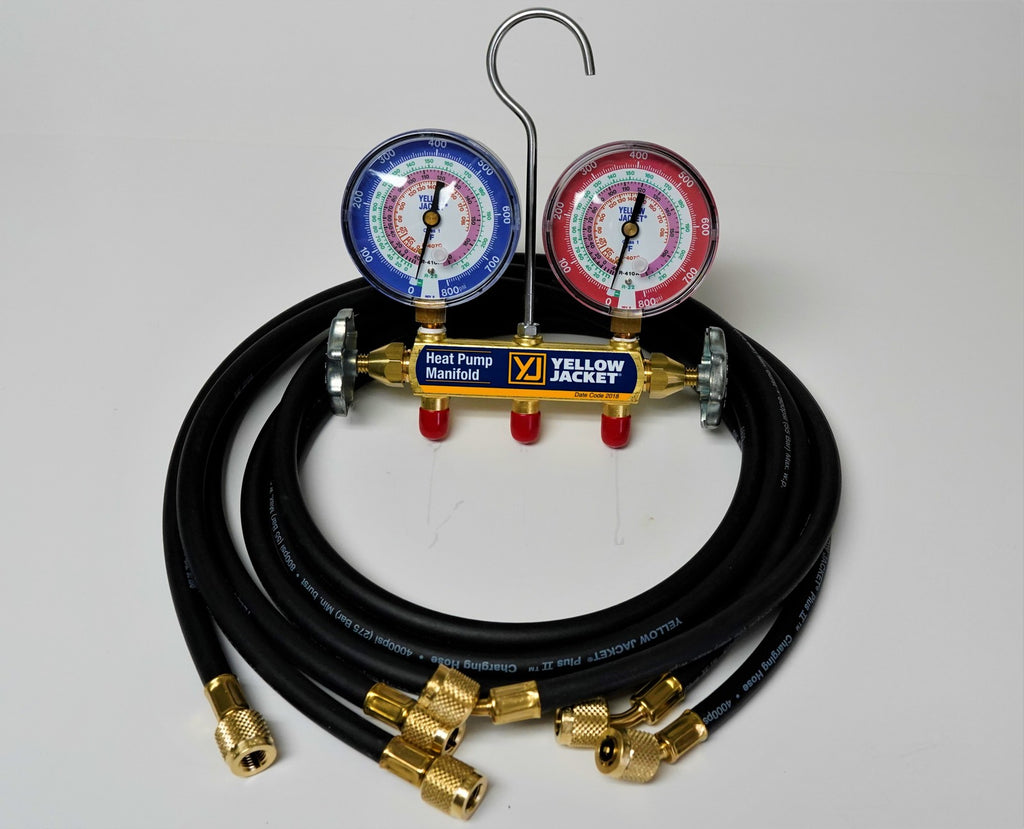

Yellow Jacket 42044 Heat Pump Charging Manifold with 60" Black Plus II 1/4" Hoses

For Use With Refrigerants R-22, R-410A, R-407C

3-1/8, 1% accuracy high- and low-side gauges that both handle up to 800 psi to read heat pump pressures and transitions in heating or cooling mode

The YELLOW JACKET Heat Pump Manifold features

two 800 psi gauges to read all heat pump pressure conditions. Traditional low side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the low side gauge of the YELLOW JACKET Heat Pump Manifold is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode or transition

Manifold Specifications:

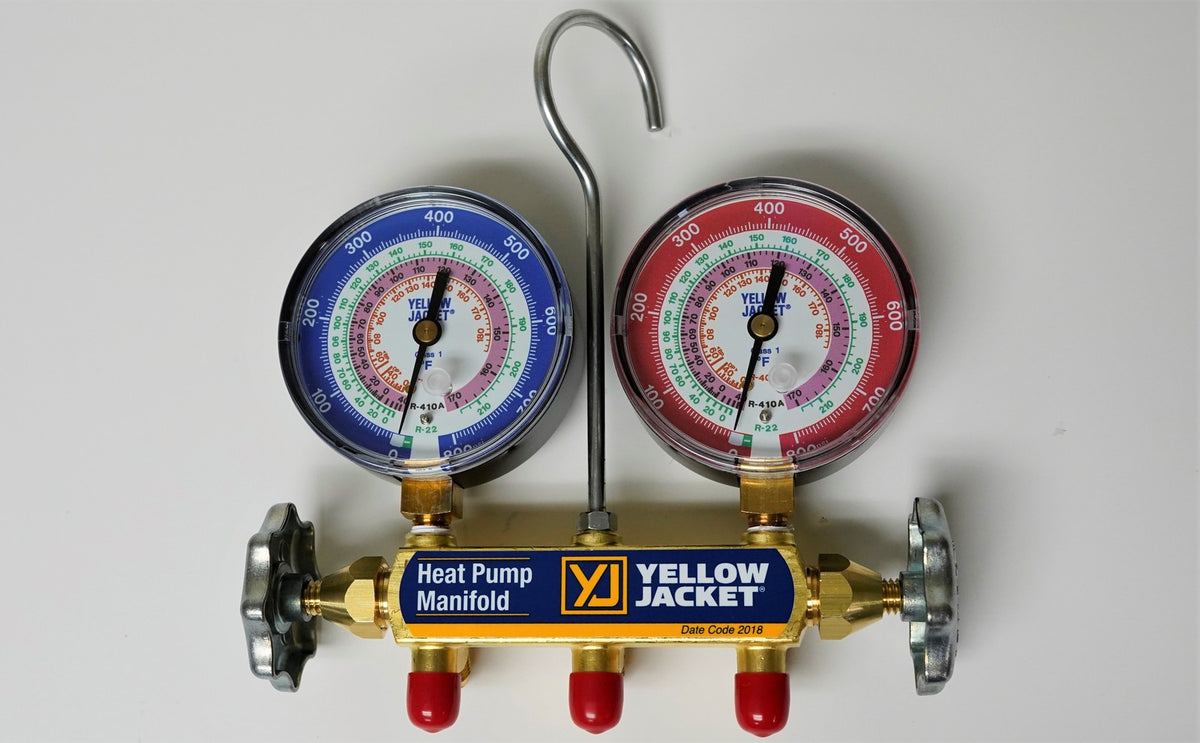

• Large 3-1/8 gauges feature steel cases with polycarbonate crystal
• High- and low-side gauges read up to 800 psi
• Color-coded scales  larger dials are bold and easy to read
• Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
• Proven sliding double O-ring pistons reduce wear
• Long life nylon seats

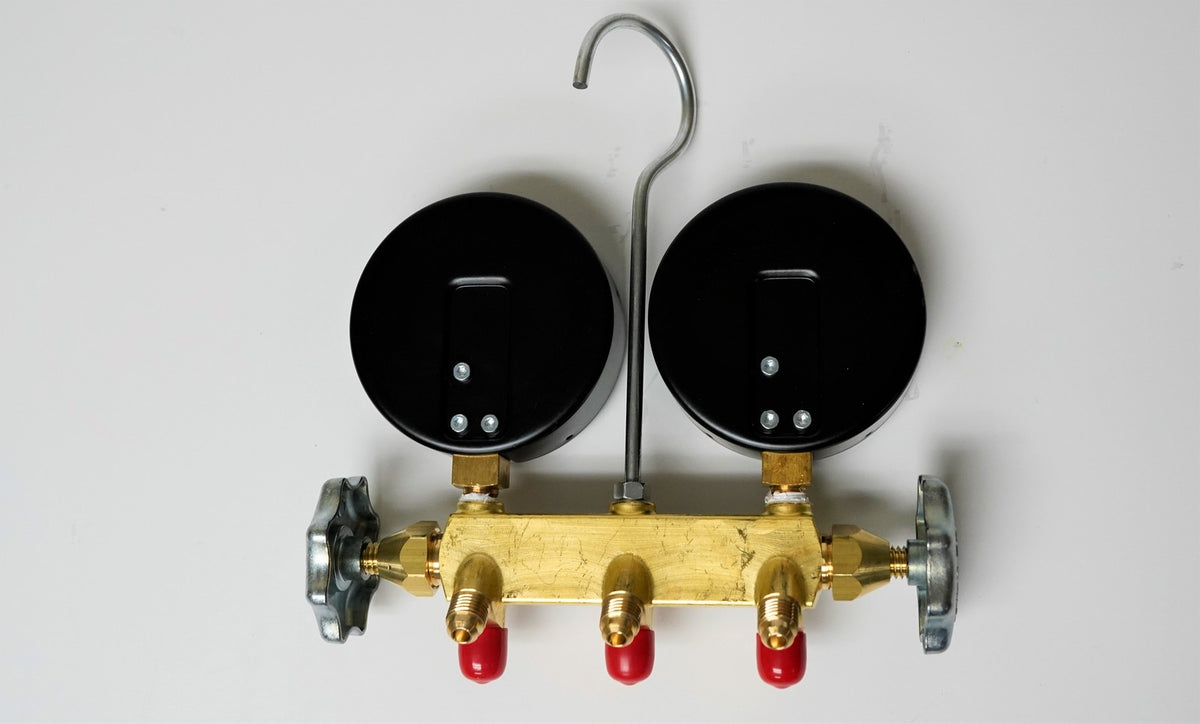

• Forged brass body for durability
• Full porting maximizes capacity and flow
• Full-size metal valve handles for easy operation
• Made in USA

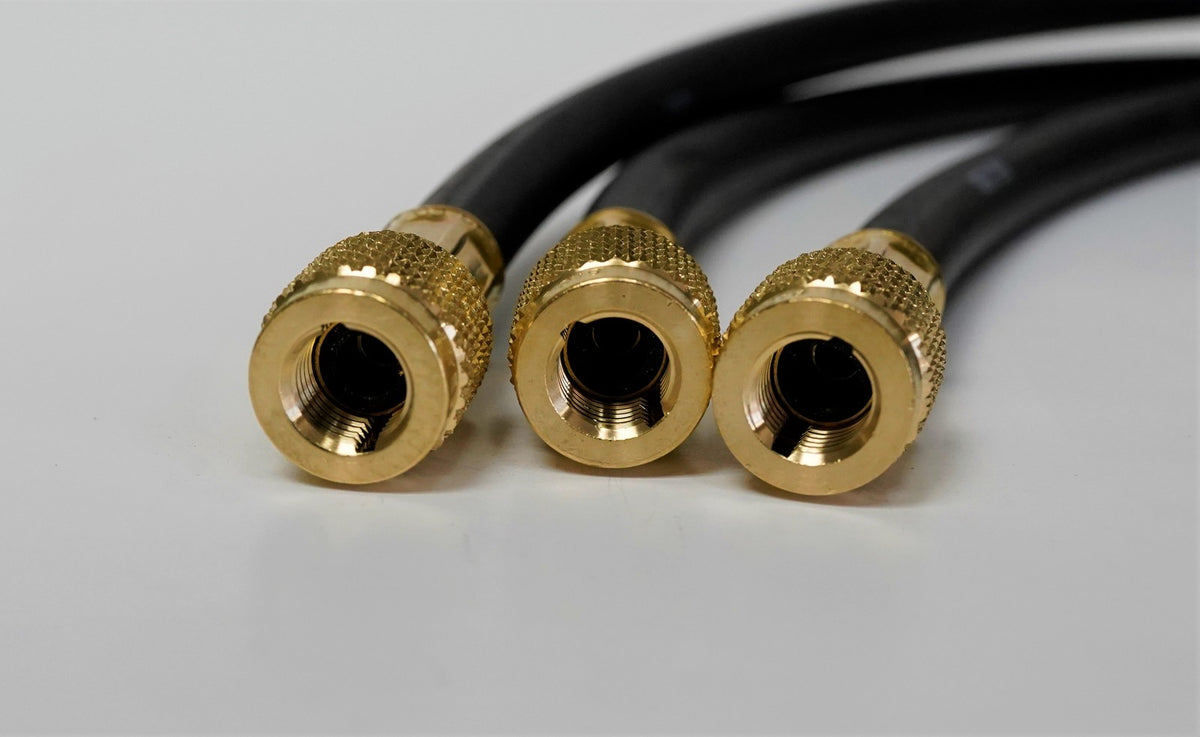

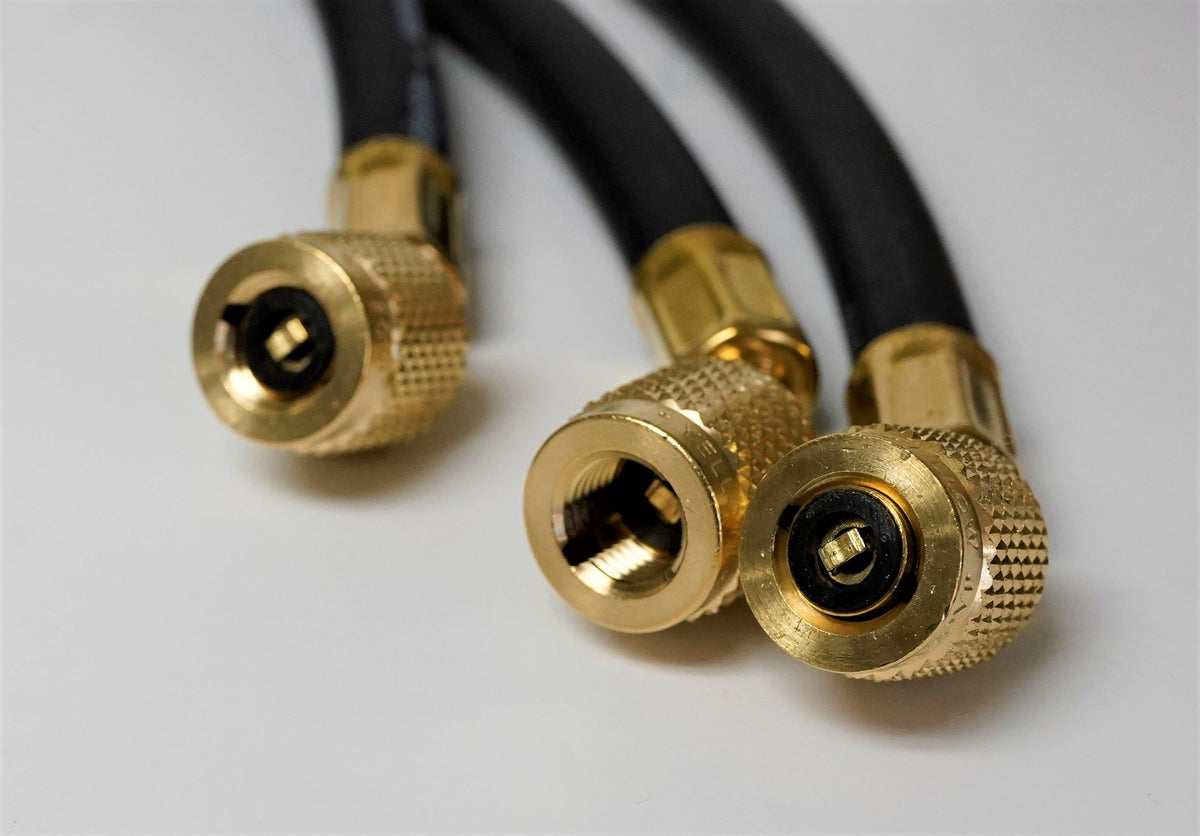

Charging Hose Specifications:

• Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure (File# SA9737)
• Set of Three, 60" Long
